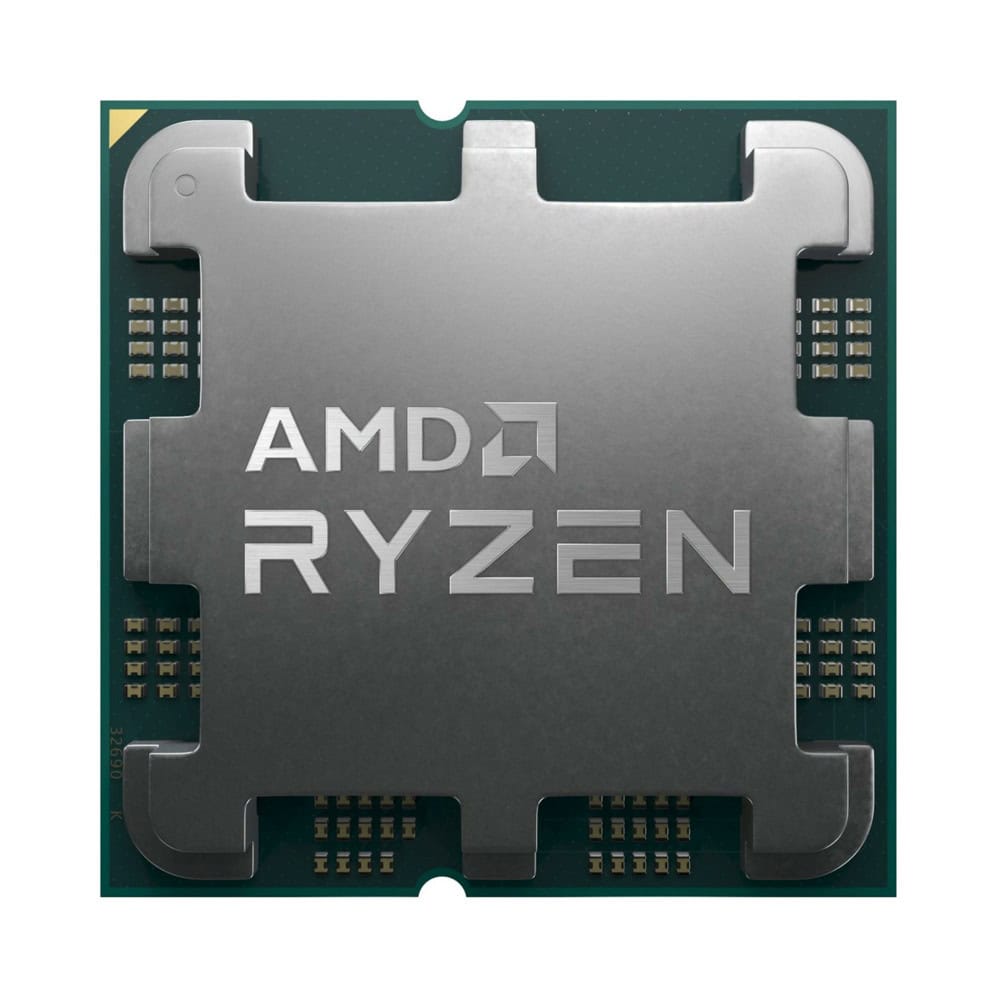

Процесор AMD Ryzen 7 7800X3D

AMD Ryzen 7 7800X3D

General Specifications

Platform Desktop

Product Family AMD Ryzen Processors

Product Line AMD Ryzen 7 Processors

AMD PRO Technologies No

Former Codename "Raphael AM5"

Architecture "Zen 4"

# of CPU Cores 8

Multithreading (SMT) Yes

# of Threads 16

Max. Boost Clock Up to 5.0GHz

Base Clock 4.2GHz

L1 Cache 512KB

L2 Cache 8MB

L3 Cache 96MB

Default TDP 120W

Processor Technology for CPU Cores TSMC 5nm FinFET

Processor Technology for I/O Die TSMC 6nm FinFET

CPU Compute Die (CCD) Size 71mm²

I/O Die (IOD) Size 122mm²

Package Die Count 2

AMD EXPO Memory Overclocking Technology Yes

Precision Boost Overdrive Yes

Curve Optimizer Voltage Offsets Yes

AMD Ryzen Master Support Yes

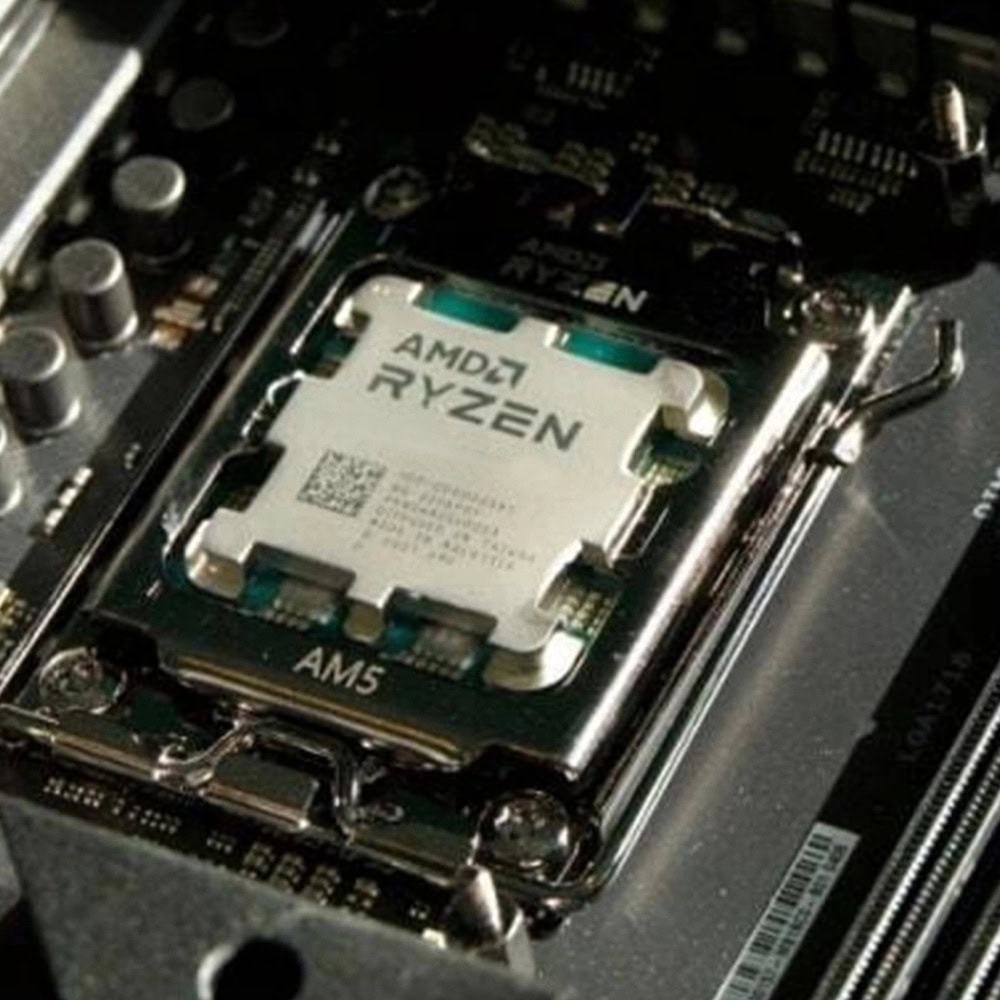

CPU Socket AM5

Supporting Chipsets A620, X670E, X670, B650E, B650

CPU Boost Technology Precision Boost 2

Instruction Set x86-64

Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB) Not included

Recommended Cooler Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax) 89°C

OS Support Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity USB Type-C Support Yes

Native USB 3.2 Gen 2 (10Gbps) Ports 4

Native USB 3.2 Gen 1 (5Gbps) Ports 0

Native USB 2.0 (480Mbps) Ports 1

Native SATA Ports 0

PCI Express Version PCIe 5.0

Native PCIe Lanes (Total/Usable) 28 / 24

Additional Usable PCIe Lanes from Motherboard

AMD X670E 12x Gen4
