Powerline адаптер TP-Link TL-WPA7817 KIT
TP-Link TL-WPA7817 KIT
AV1000 Speeds and 300 Meters Range

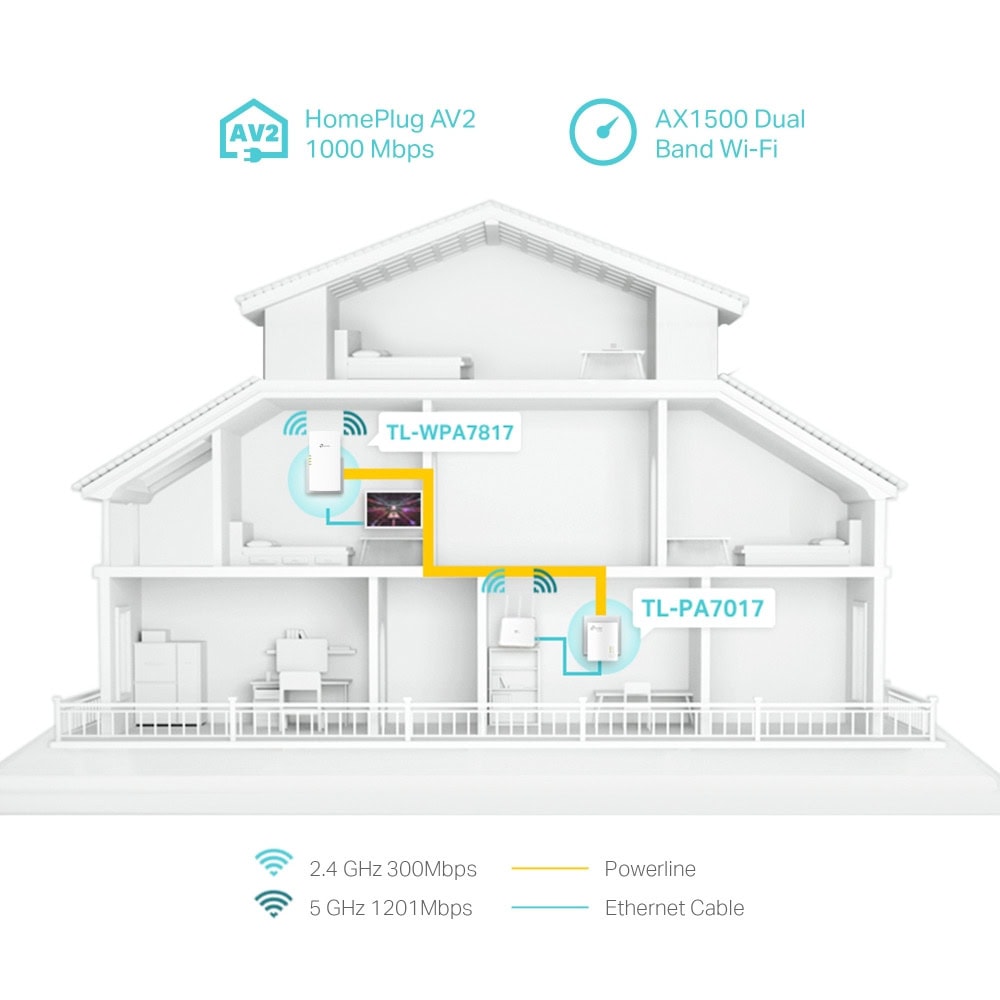

Using advanced HomePlug AV2 technology, TL-WPA7817 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters†. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

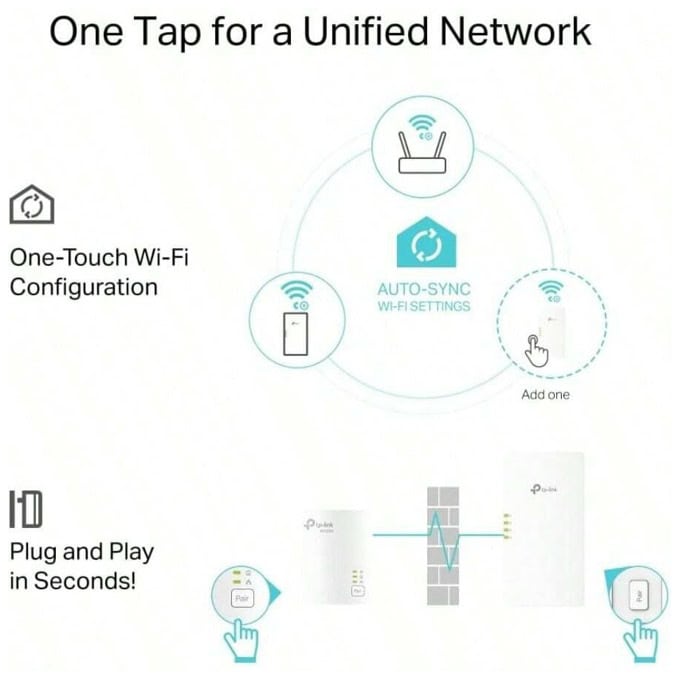

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible device to further form your whole home mesh WiFi. No more searching for a stable connection.
Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch.
PCGame ConsoleSmart TVLaptop
Характеристики
| Transmission Speeds | • Powerline: Up to 1000 Mbps · • Ethernet: 10/100/1000 Mbps |
| Transmission Distance | Up to 300 meters/1000 feet over existing electrical wiring |
| Standards and Protocols | • HomePlug AV2 · • IEEE 1901 · • IEEE 802.3 · • IEEE 802.3u · • IEEE 802.3ab · • IEEE 802.11b/g/n (2.4 GHz) · • IEEE 802.11a/n/ac/ax (5 GHz) |
| Съвместимост | Compatible with all HomePlug AV & AV2 standard powerline adapters |
| Plug Type | EU |
| Интерфейс | • TL-WPA7817: 1× Gigabit Ethernet Port · • TL-PA7017: 1× Gigabit Ethernet Port |
| Button | • Pair · • LED On/Off · • Wi-Fi Clone · • Reset |
| Max. Power Consumption | • TL-WPA7817: Maximum: 11W, Typical: 6.5W · • TL-PA7017: Maximum: 2.9W, Typical: 2.6W |
| LED | • Power · • Powerline · • Ethernet · • Wi-Fi (2.4 GHz) · • Wi-Fi (5 GHz) |
| Wireless features | Да |
| Wireless Standards | • TL-WPA7517: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ac 2.4 GHz · • TL-PA7017: N/A |
| Честота | • TL-WPA7817: 2.4 GHz and 5 GHz · • TL-PA7017: N/A |
| Signal Rate | • TL-WPA7817: 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz · • TL-PA7017: N/A |
| Software features | Да |
| Mesh Technology | EasyMesh-Compatible · Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products. |
| Security | • Powerline: 128-bit AES Encryption · • Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions |
| Management Features | TP-Link tpPLC App, or download new tpPLC Utility on PCs. |
| Modulation Technology | OFDM (PLC) |
| Other | Да |
| Network Services Enabled by Default | Web Server · Manage and configure device through web (HTTP/HTTPS) · • Port: 80/443 Protocol: TCP · DHCP Server · IP address assignment (DHCP) · • Port: 67 Protocol: UDP · Onemesh management · Onemesh Configuration (Synchronization & Communication) · • Port: 20001 Protocol: TCP · • Port: 20002 Protocol: UDP · App management · Manage and configure device through app · • Port: 1040 Protocol: UDP |
| Сертификация | CE, RoHS |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) · • Operating Humidity: 10%~90% non-condensing |
