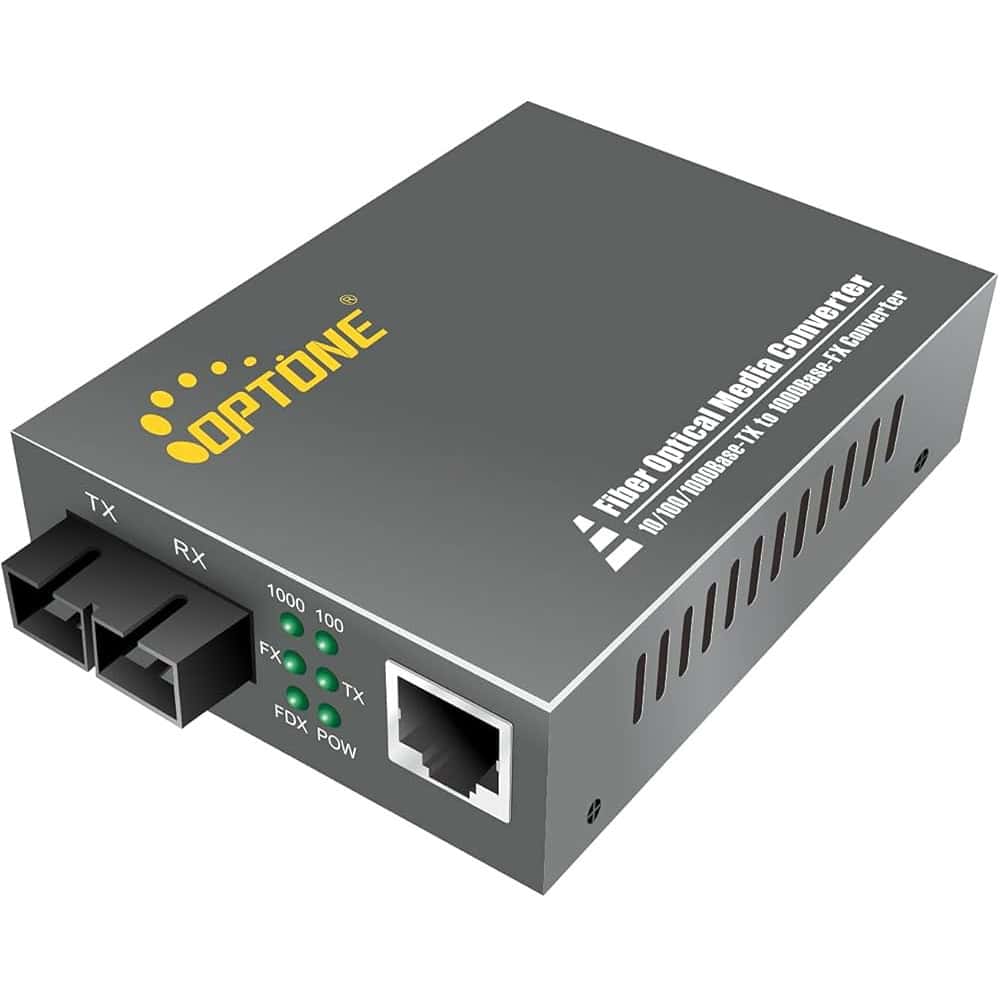

PoE конвертор Optone OPT-2200A
1*10/100/1000M TX and 1*1000M FX/SFP (OPT-2200 series)
This converter will give your Copper Gigabit connection the ability to interface with fiber connection over a distance up to 80 km! 10/100/1000 means, that media converter that converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually
Interface
1 x Ethernet port (RJ45) 10/100/1000Base-Tx
1 x Optical port (1x9 or SFP) 1000Base-Fx
Optical Port
Available for 1310nm and 1550nm Single mode, and 850nm Multi mode;
Характеристики
| Transfer Distance | up to 120km |
| Конектори | SC, ST, FC, SFP optional |
| Fiber core | 9/125μm on single mode fiber, 50/125μm and 62.5/125μm on multi-mode fiber |
| Ethernet Port | Да |
| Standard | IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x |
| Available speed | force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation |
| Конектори | RJ-45 Connector; MDI/MDI-X connection auto-sensing |
| Housing | Metal enclosure |
| Размери | 94 x 70 x 26mm (Excluding the connector) |
| Тегло | 0.28kg |
| Environmental Limits | Да |
| Работна температура | 0°C to 50°C |
| Температура на съхранение | -20°C to 70°C |
| Operating Humidity | 5% to 90% RH |
| Storage Humidity | 5% to 90% RH |
