Ubiquiti

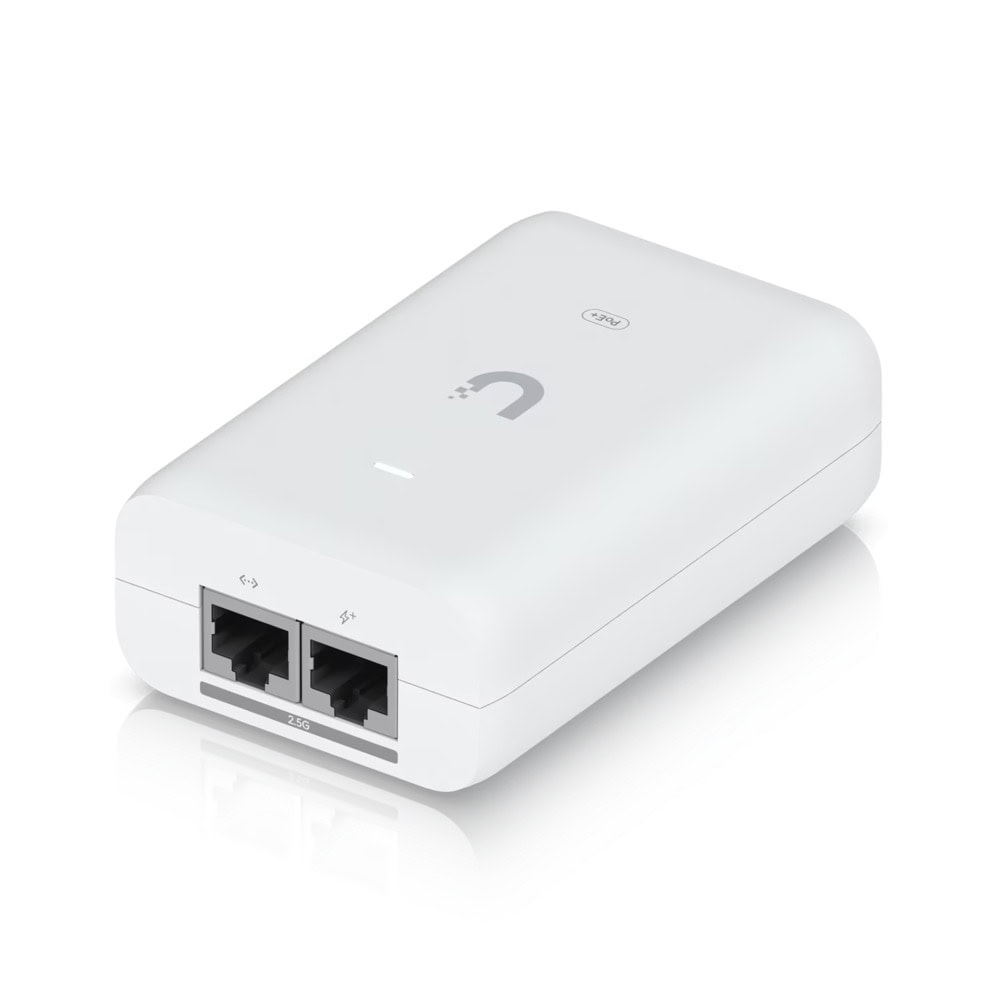

PoE инжектор Ubiquiti UACC-POE+-2.5G
Артикул №: 1000151462
Категория:
Мрежови адаптери
24,99 €
✓ Налично във външен склад
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Max. surge discharge1500A (8/20 μs) power
Характеристики
| Ubiquiti UACC-POE+-2.5G | |
| Delivers up to 30W of PoE+ | |
| Surge, peak pulse, and overcurrent protection | |

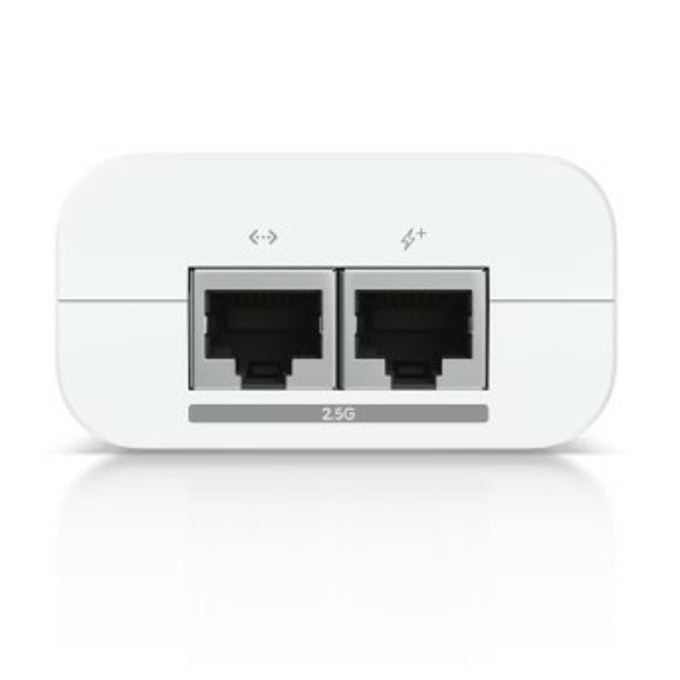

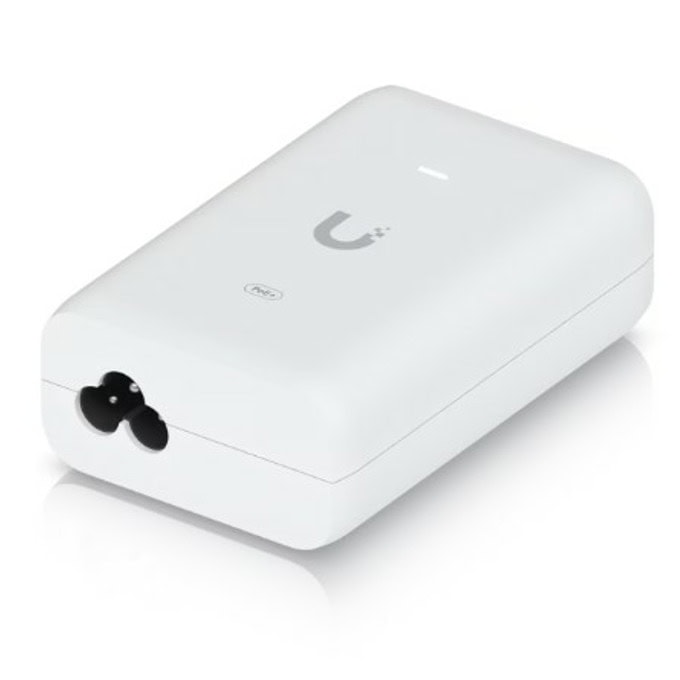

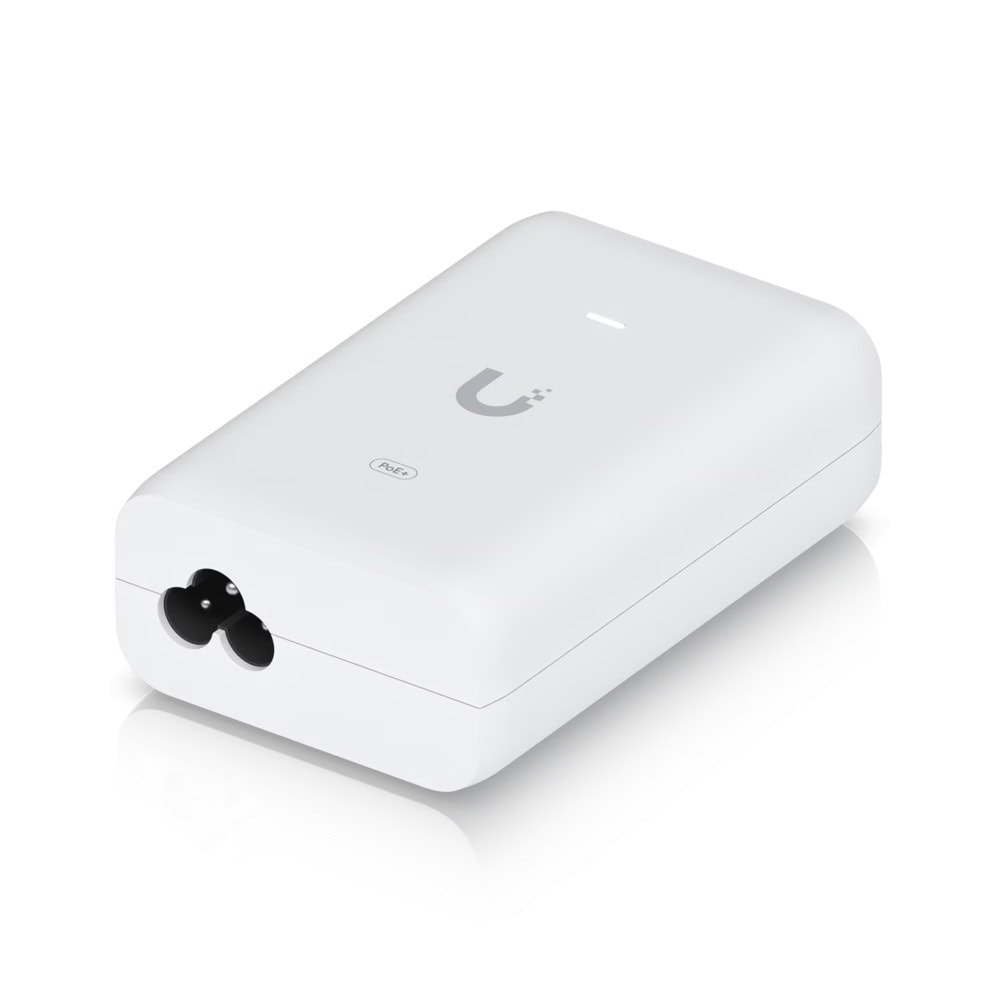

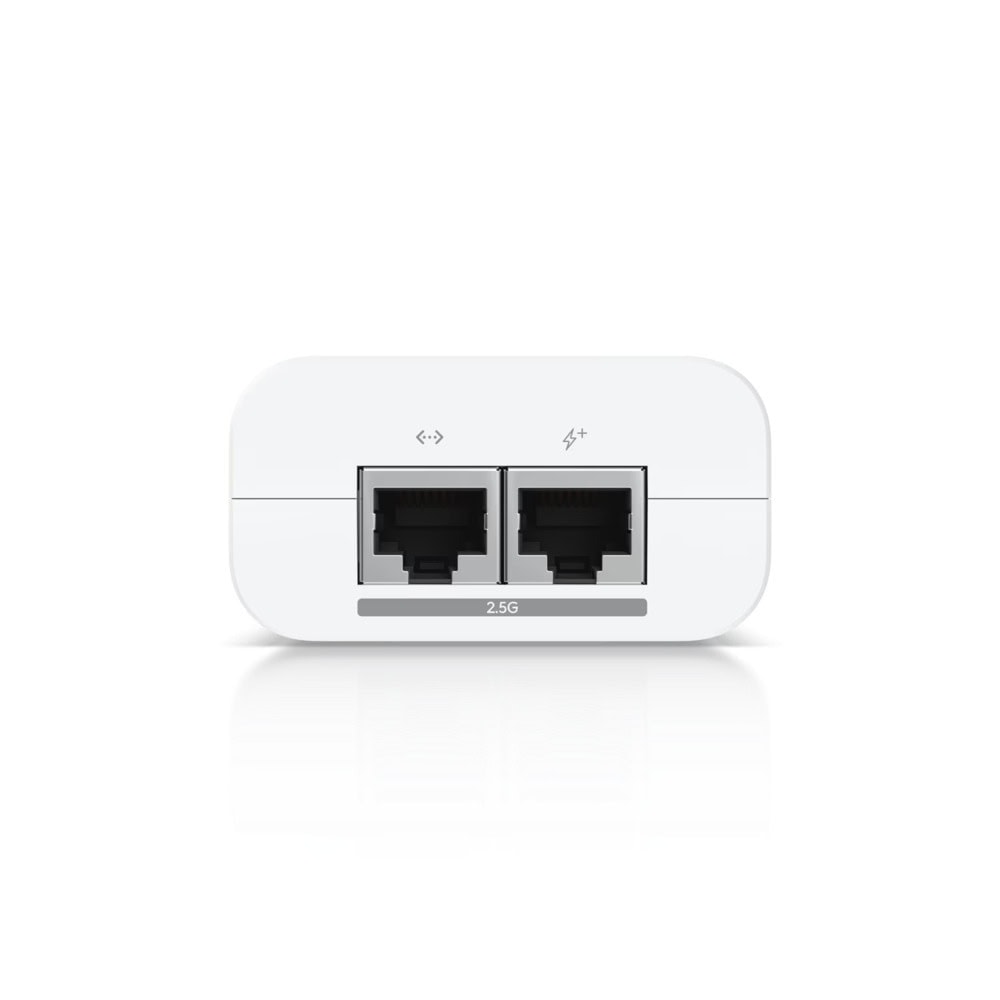

| Contains RJ45 data input, AC cable with earth ground, and PoE+ output | |
| LED indicator for status monitoring | |
| Dimensions93 x 62 x 35 mm (3.7 x 2.4 x 1.4") | |
| Weight156 g (5.5 oz) | |
| Output voltage48V DC @ 0.65A | |
| LAN activity indicatorNo | |
| Gigabit LAN portYes, up to 2.5 GbE | |
| Remote reset capabilityNo | |
| Reset buttonNo | |
| Rated voltage100—240V AC @ 50/60Hz | |
| Input current0.75A max. | |
| Inrush current | |
| Efficiency>87% | |
| Output ripple1% max. | |
| Switching frequency65 kHz max. | |
| Line regulation≤ 1% | |
| Load regulation≤ 3% | |
| 2-pair poweringPins 4, 5 (+) and 7, 8 (-) | |
| 4-pair poweringNo | |
| Data In / PoERJ45 shielded socket | |
| Surge protectionDifference and common mode | |
| Clamping protection11V data, 60V power | |
| Peak pulse current36A (10/1000 μs) data | |
| Shunt capacitance | |
| Време за реакция | |
| Ambient operating temperature0 to 40° C (32 to 104° F) | |
| Storage temperature-30 to 70°C (-22 to 158° F) | |
| Ambient operating humidity10 to 95% noncondensing | |

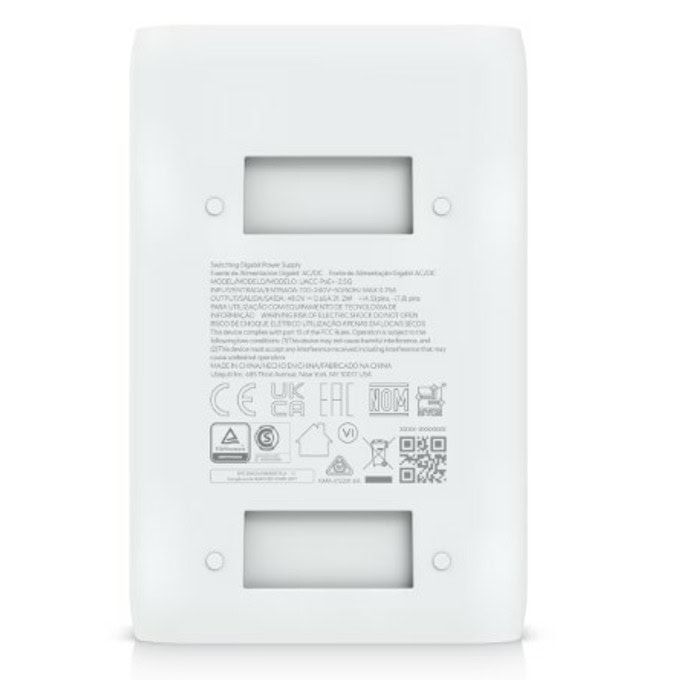

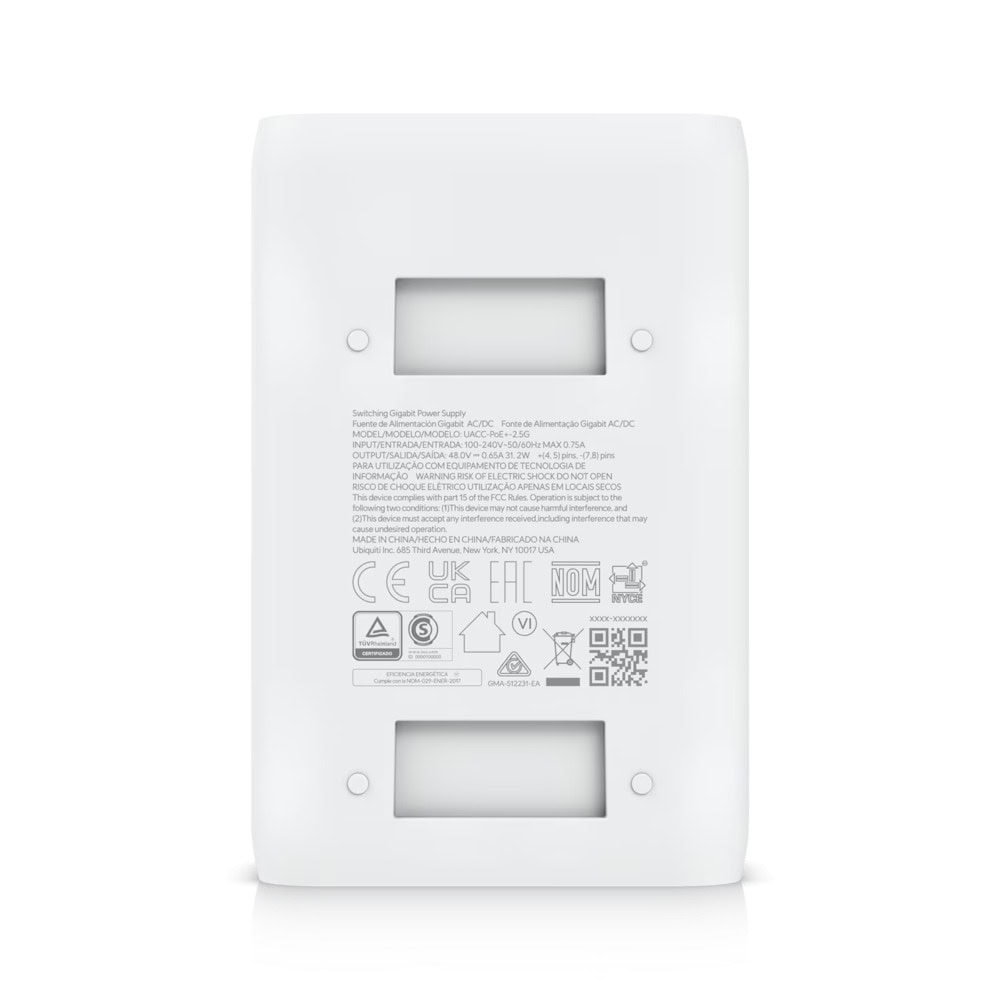

| CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHS | |
| NDAA CompliantYes |
