Ubiquiti

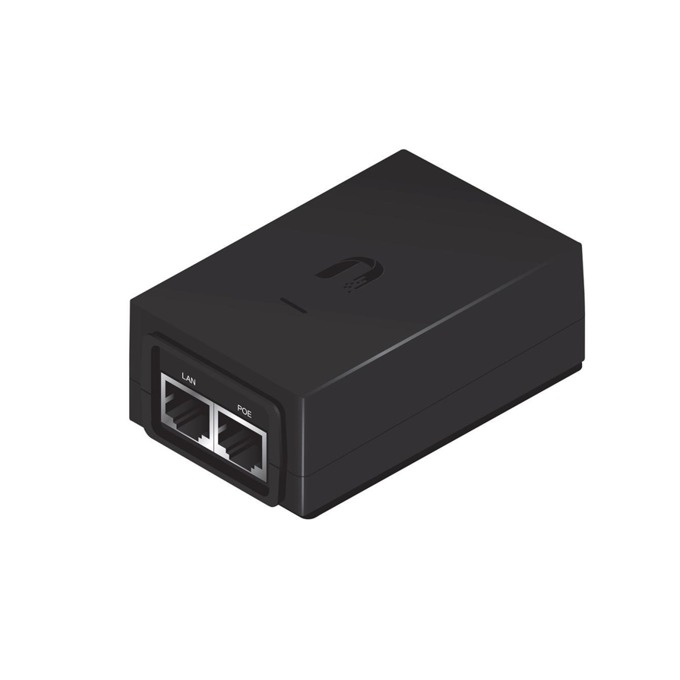

PoE инжектор Ubiquiti POE-48-24W-G
Артикул №: 1000052023
Категория:
Жични мрежи аксесоари
17,99 €
✓ Налично във външен склад
Model: POE-48-24W-G-WH
Dimensions: 96 x 62 x 35 mm
Weight: 166 g
Output Voltage: 48VDC @ 0.5A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Rated Voltage: 100-240VAC @ 50/60Hz
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <65A Peak @ 120VAC, <130A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: ≤ 3%
Load Regulation: ≤ 5%
2-Pair Powering Pins: Pins 4, 5 (+) and Pins 7, 8
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
Dimensions: 96 x 62 x 35 mm
Weight: 166 g
Output Voltage: 48VDC @ 0.5A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Rated Voltage: 100-240VAC @ 50/60Hz
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <65A Peak @ 120VAC, <130A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: ≤ 3%
Load Regulation: ≤ 5%
2-Pair Powering Pins: Pins 4, 5 (+) and Pins 7, 8
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
Технически характеристики
| Размери | 96 x 62 x 35 mm |
| Тегло | 166 g |
| Output Voltage | 48VDC @ 0.5A |
| LAN Activity Indicator | Не |
| Gigabit LAN Port | Да |
| Remote Reset Capability | Не |
| Reset Button | Не |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Efficiency | 80+% |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering Pins | Pins 4, 5 (+) and Pins 7, 8 |
| Работна температура | 0 to 40° C (32 to 104° F) |
| Температура на съхранение | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Certifications | CE, FCC, IC, UL |
