Kingston
Памет 8GB DDR5 5600MT/s
Артикул №: 1000127133
Категория:
Компютърни компоненти
155,99 €
✓ Налично във външен склад
DESCRIPTION

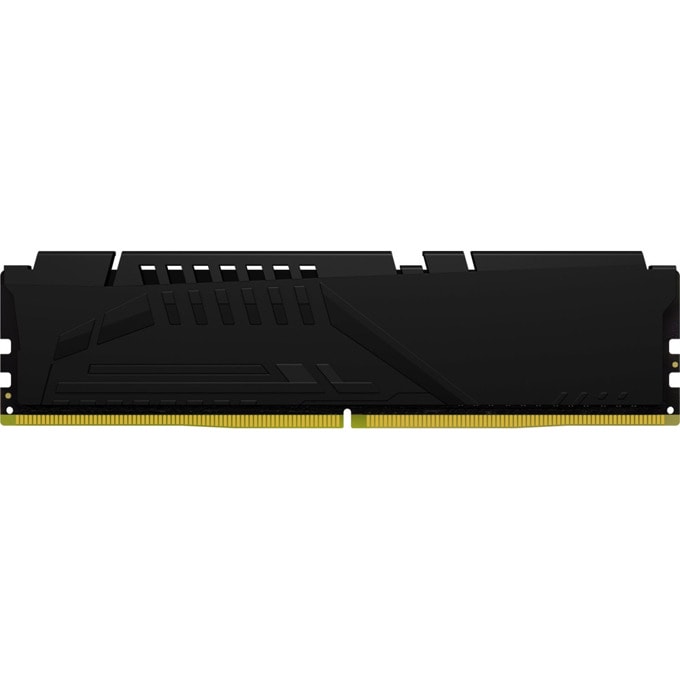

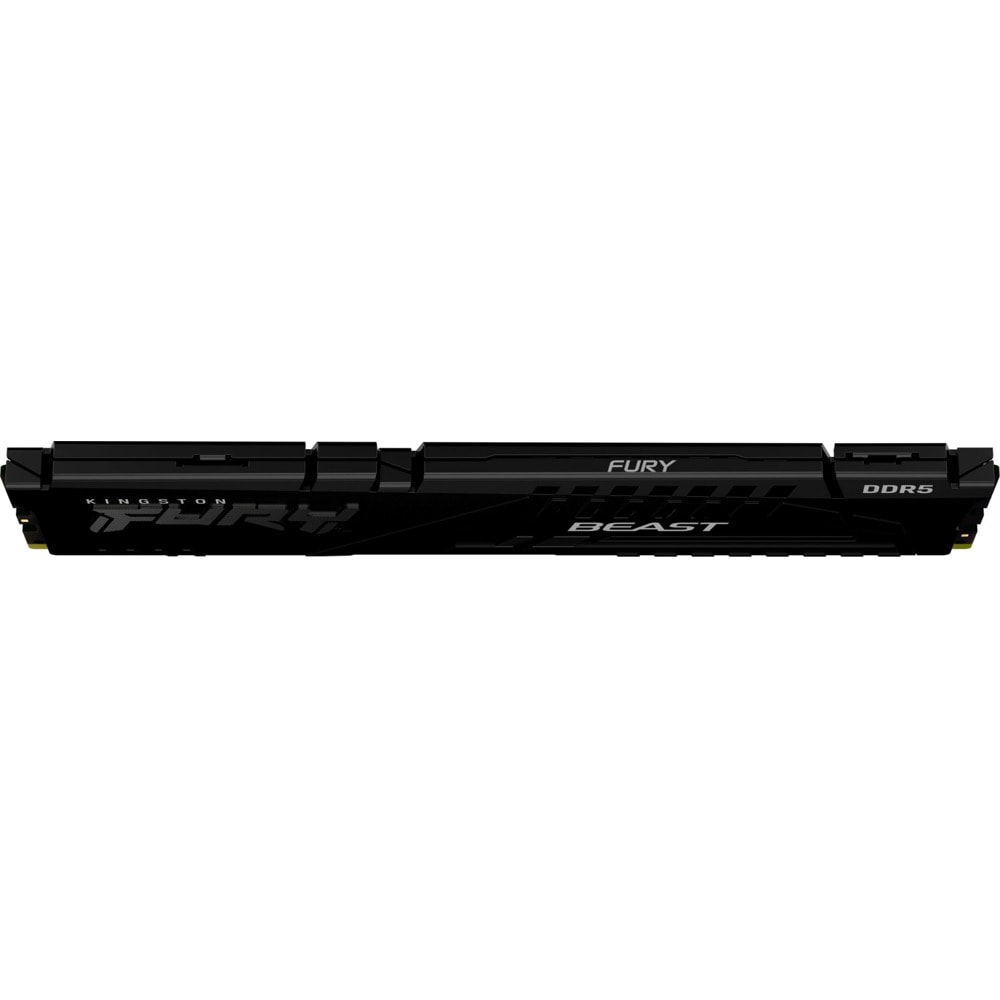

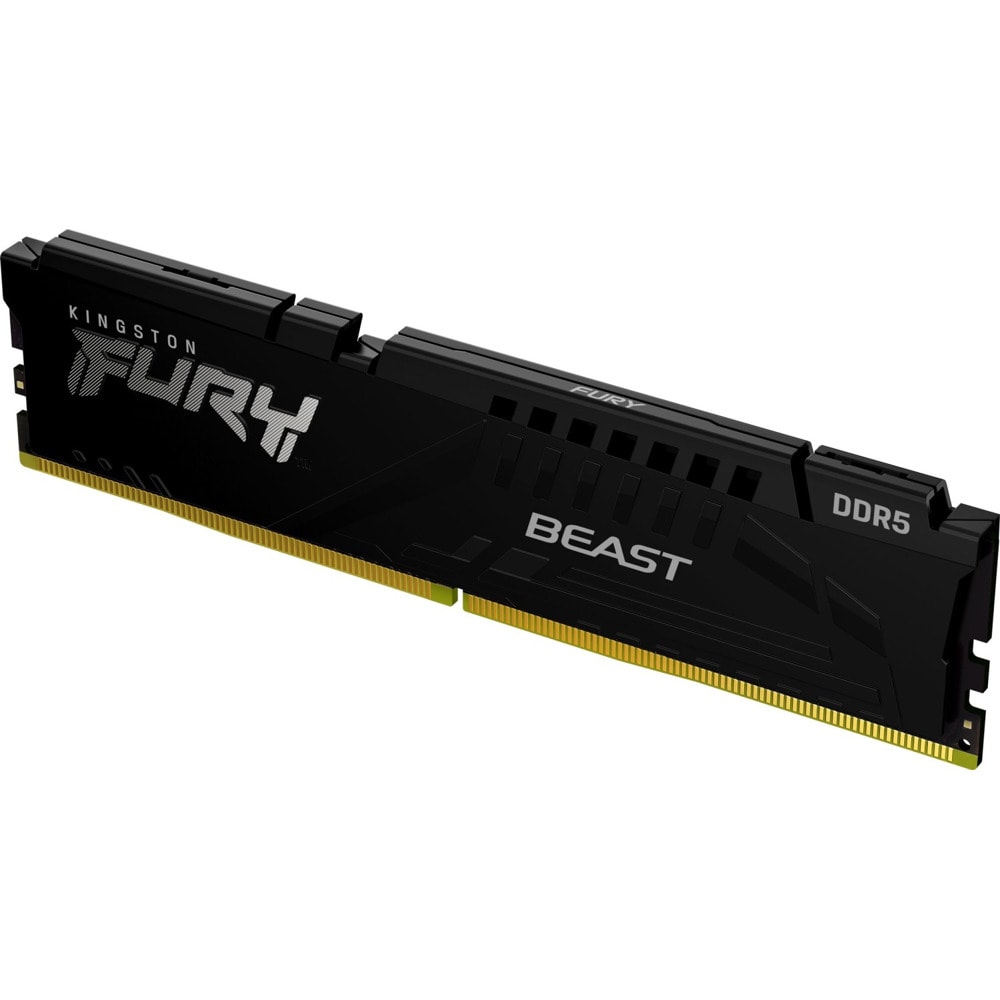

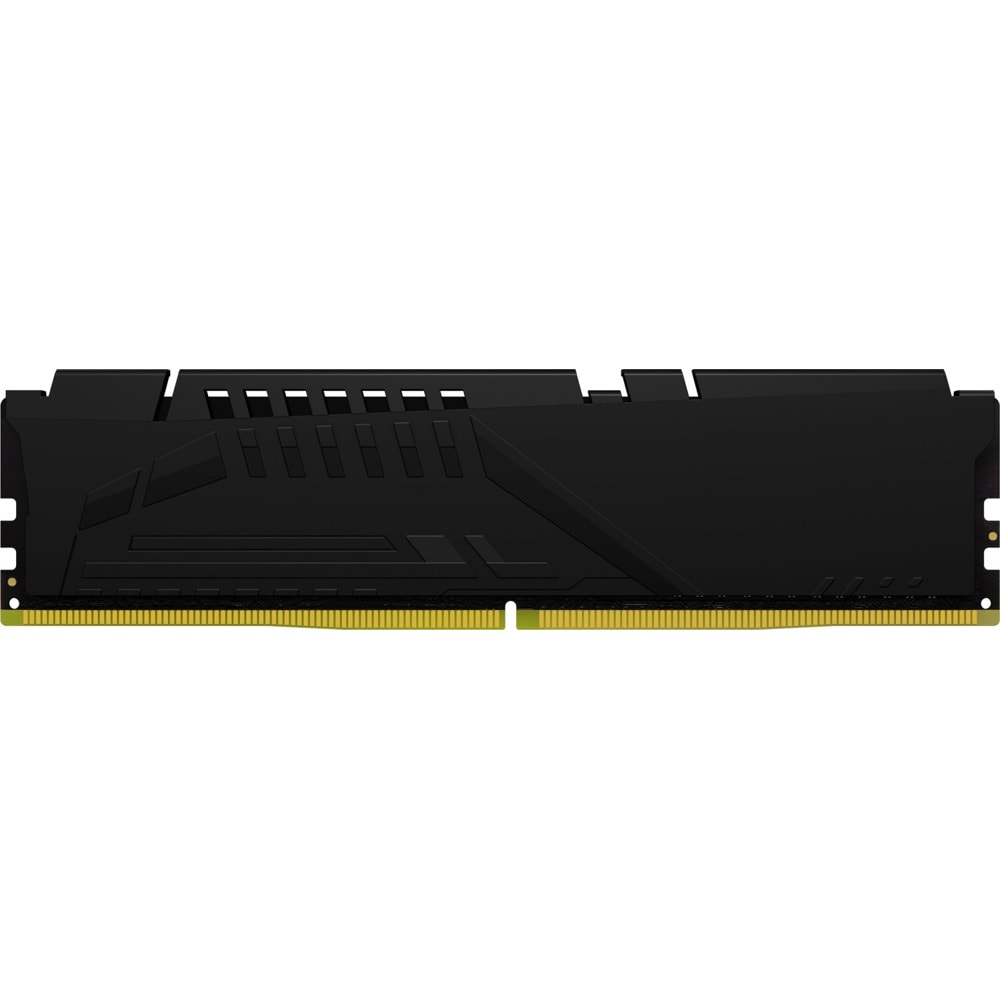

Kingston FURY KF556C36BBE-8 is a 1G x 64-bit (8GB) DDR5-5600
CL36 SDRAM (Synchronous DRAM) 1Rx16, memory module,
based on four 1G x 16-bit FBGA components per module. The
module supports AMD® EXPO v1.0 and Intel® Extreme
Memory Profiles (Intel® XMP) 3.0. Each module has been
tested to run at DDR5-5600 at a low latency timing of 36-38-38 at
1.25V. The SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:
Характеристики
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Работна температура | 0 C to +85 C |
| Storage Temperature -55 C to +100 C | Да |
| Характеристики | Да |
| Захранване | VDD = 1.1V Typical |
| VDDQ = | 1.1V Typical |
| VPP = | 1.8V Typical |
| VDDSPD = | 1.8V to 2.0V |
| On-Die ECC | Да |
| Височина | 1.37” (34.9mm), w/heatsink |
| FACTORY TIMING PARAMETERS | Да |
| Default (JEDEC) | DDR5-4800 CL40-39-39 @1.1V |
| EXPO Profile #0 | DDR5-5600 CL36-38-38 @1.25V |
| EXPO Profile #1 | DDR5-5200 CL40-40-40 @1.25V |
| XMP Profile #1 | DDR5-5600 CL36-38-38 @1.25V |
| XMP Profile #2 | DDR5-5200 CL40-40-40 @1.25V |
