Kingston
Памет 64GB (2x32GB) DDR5 6000MT/s
Артикул №: 1000126610
Категория:
Компютърни компоненти
1 202,99 €
✓ Ограничена наличност

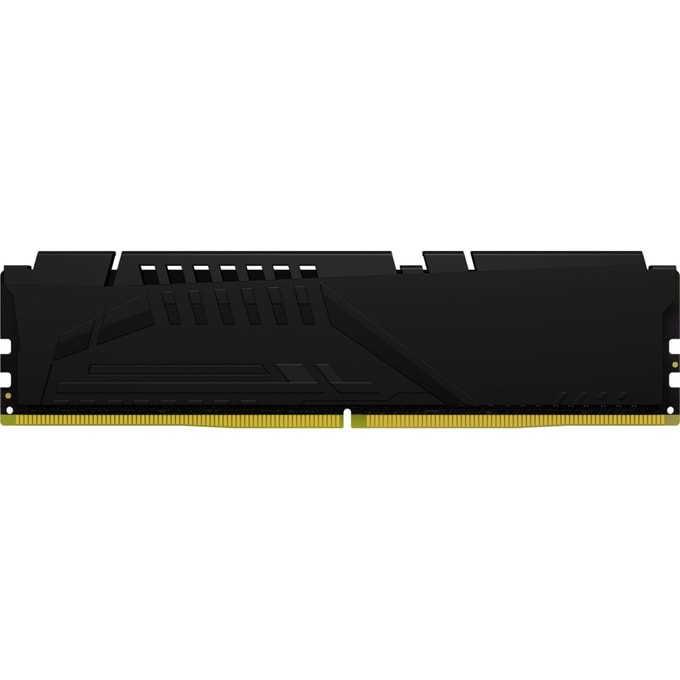

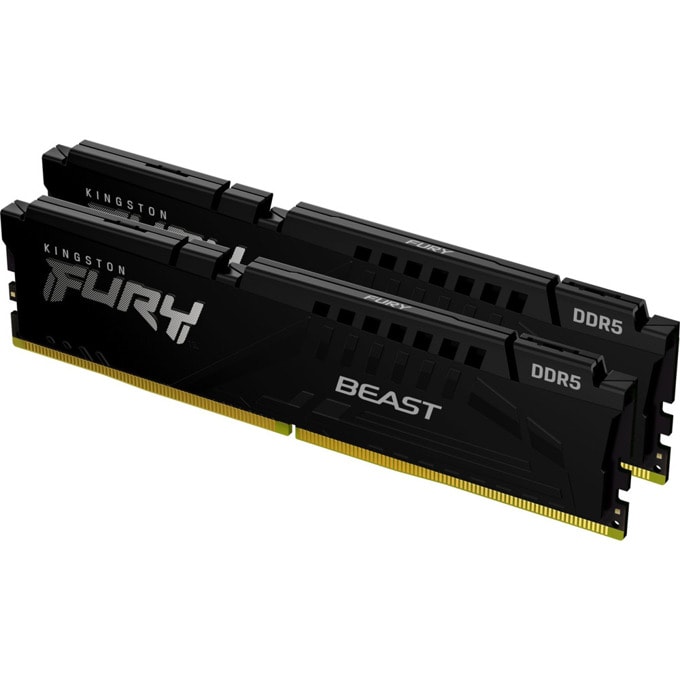

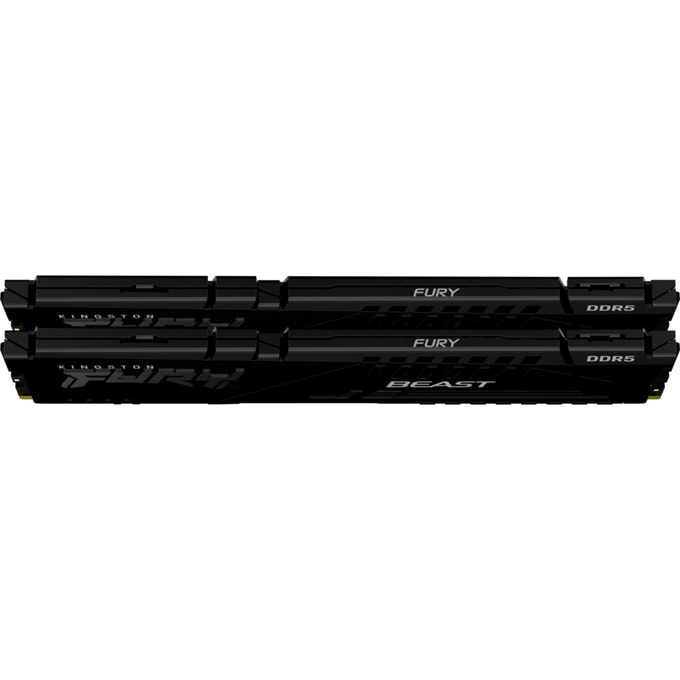

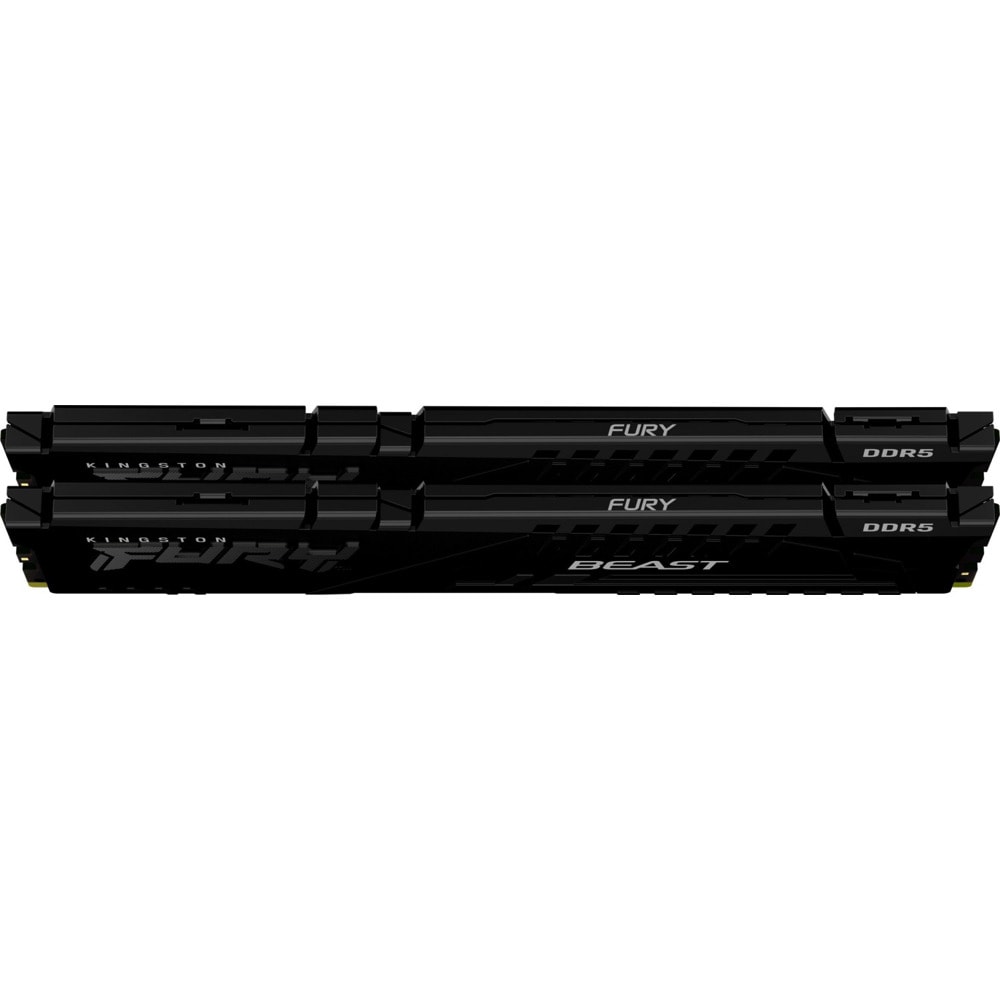

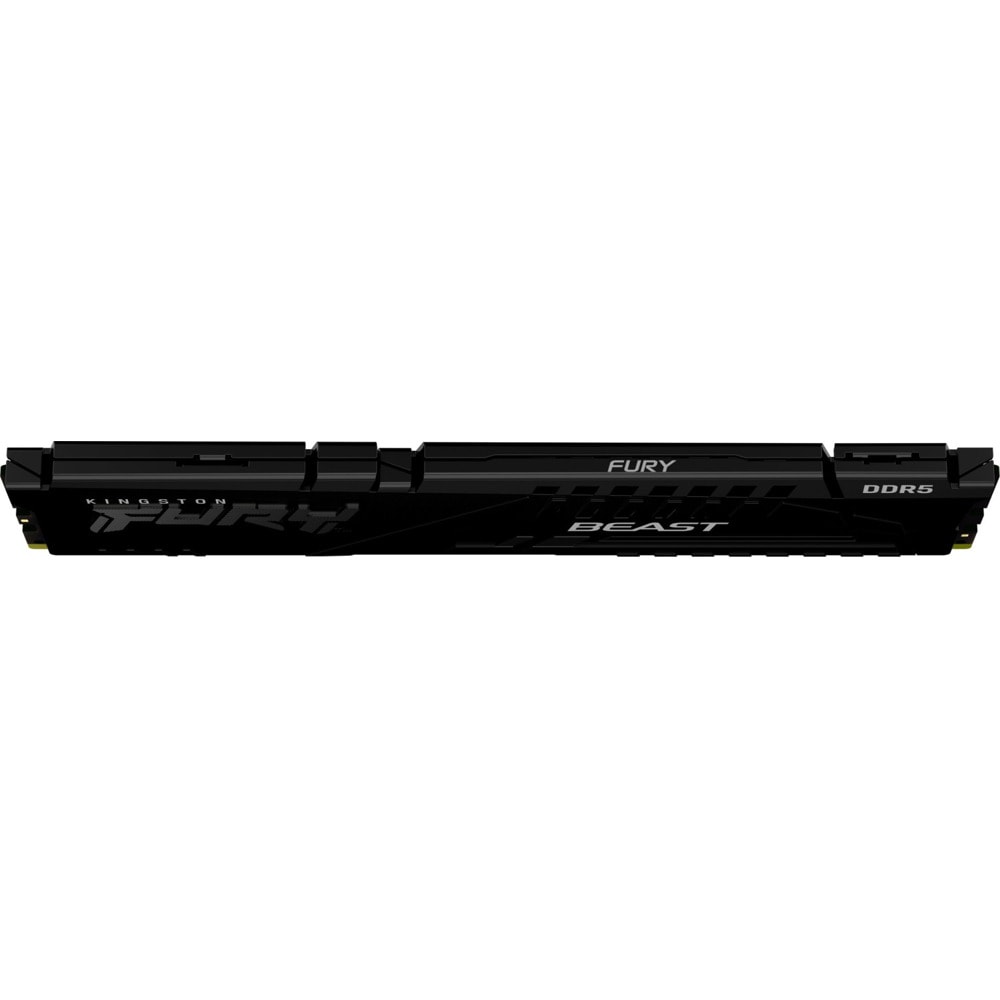

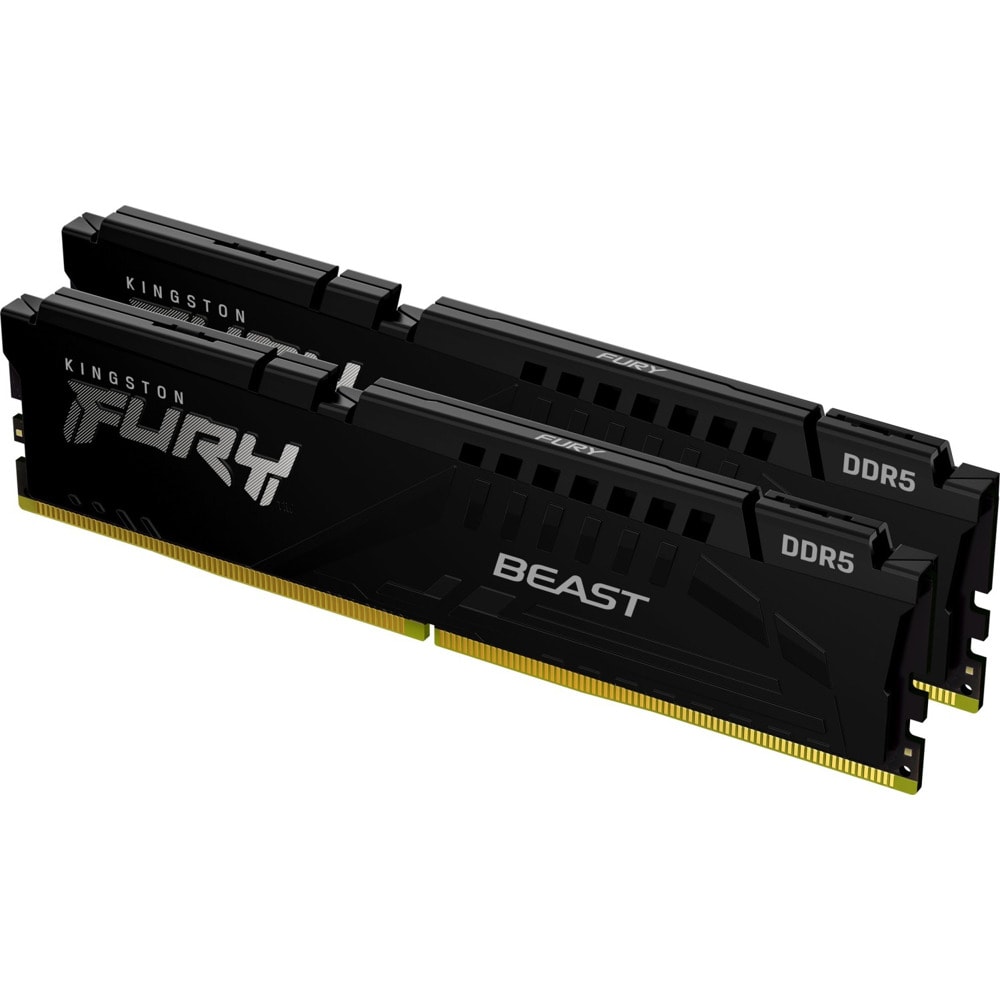

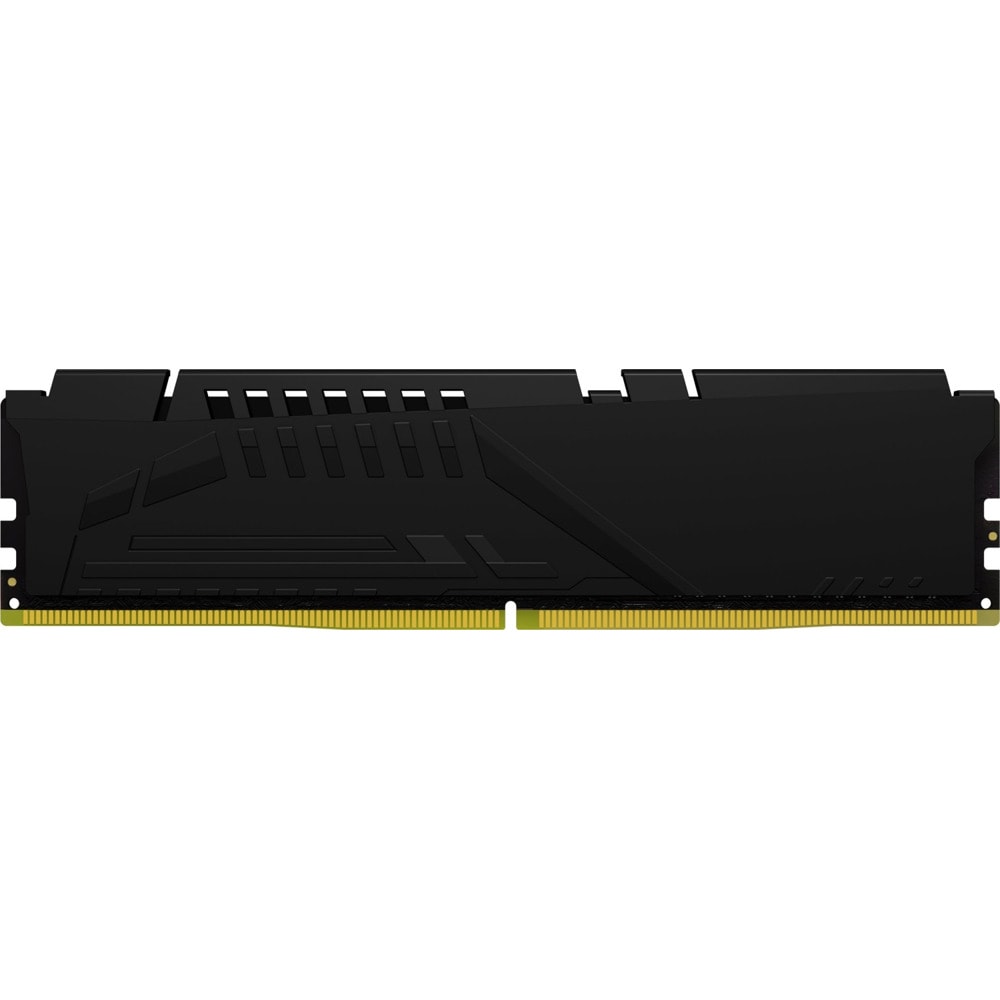

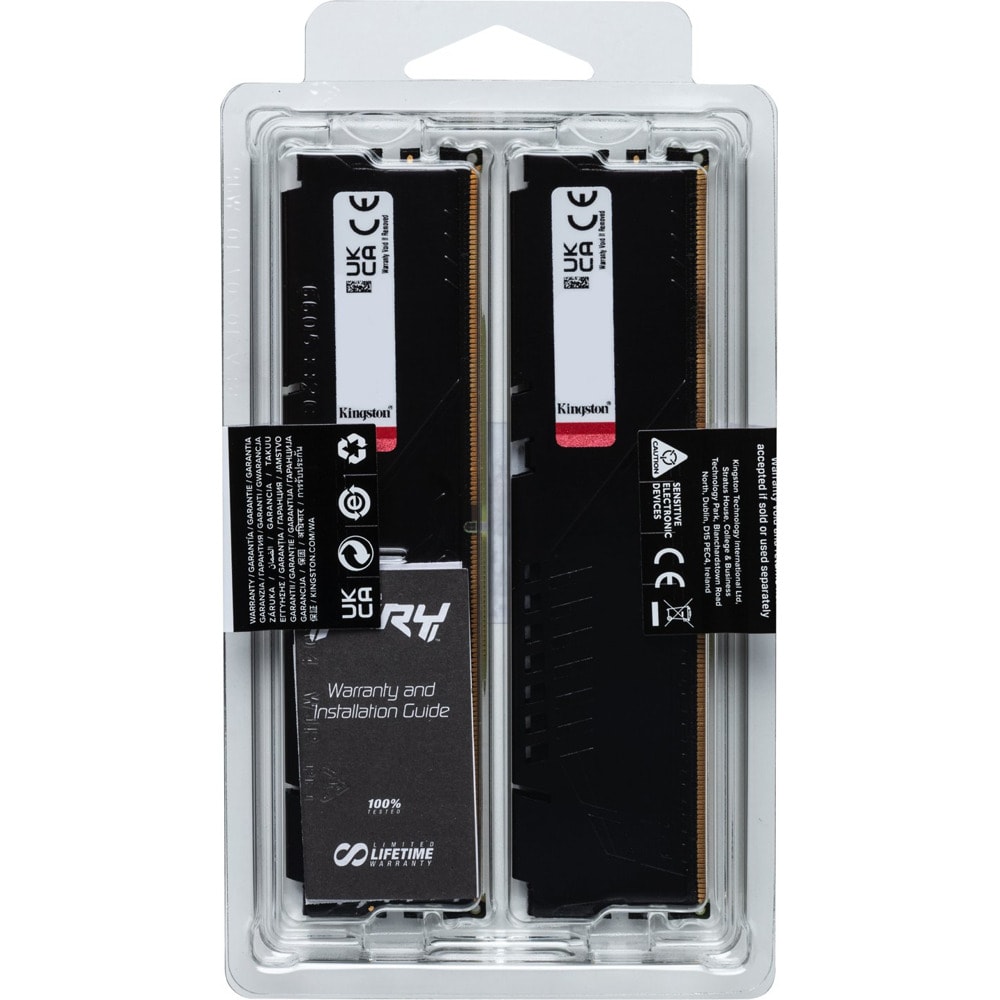

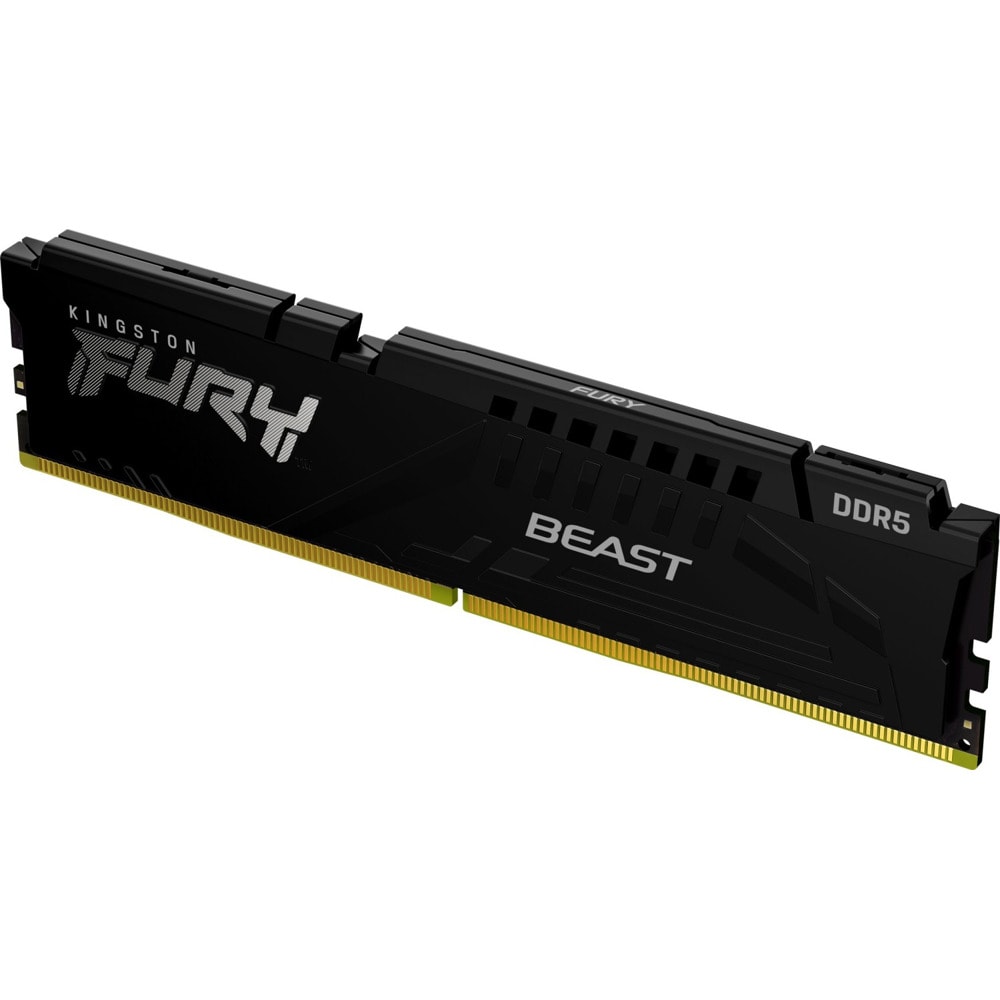

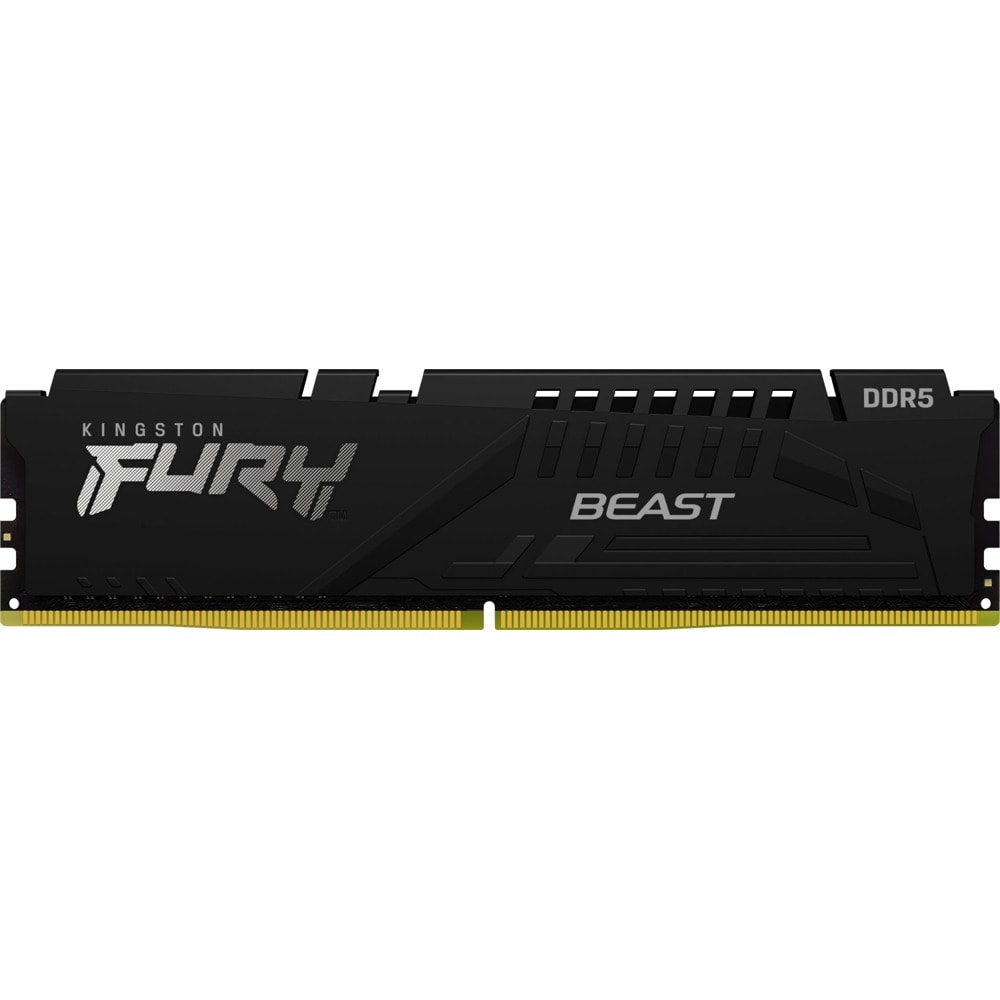

Kingston FURY Beast Black
DESCRIPTION

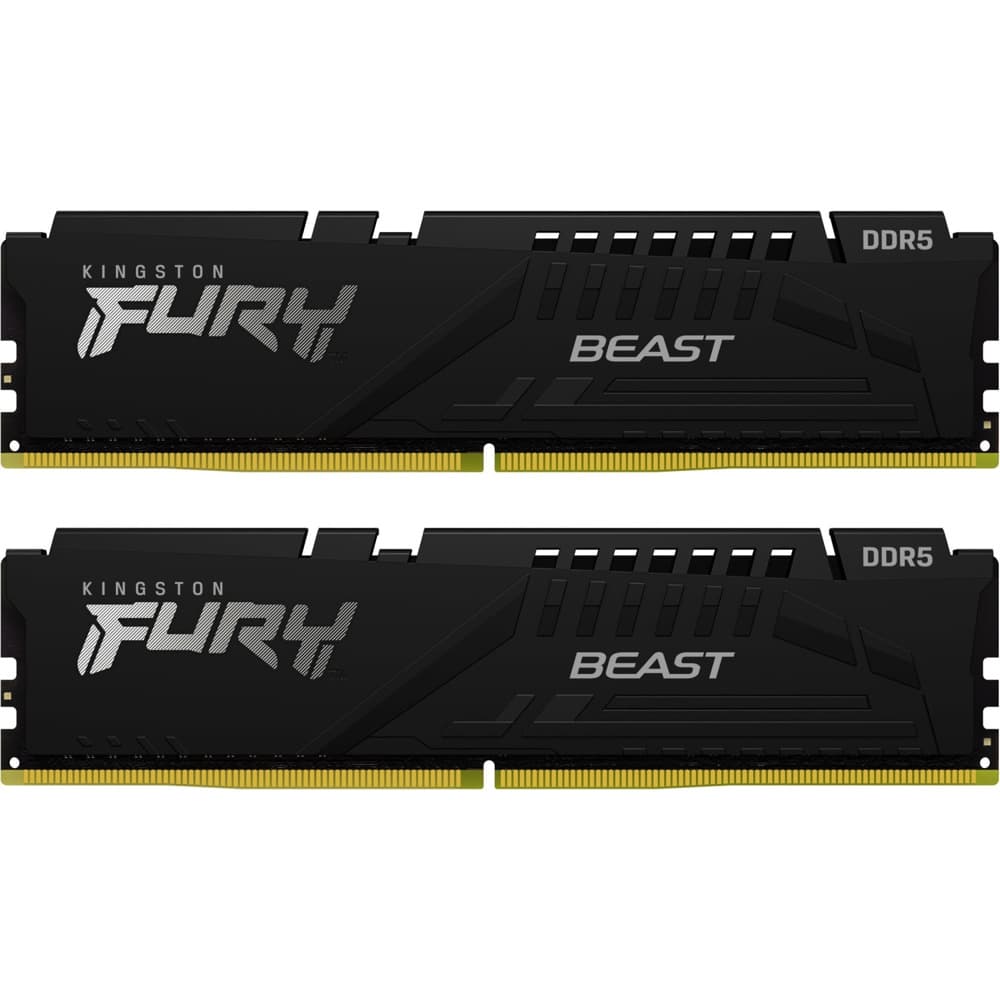

Kingston FURY KF560C36BBEK2-64 is a kit of two 4G x 64-bit
(32GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components per
module. Each module kit supports AMD® EXPO v1.0 and
Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit
capacity is 64GB. Each module has been tested to run at
DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:
Характеристики
| Row Cycle Time (tRCmin)48ns(min.) | Да |
| Refresh to Active/Refresh Command Time (tRFCmin)295ns(min.) | Да |
| Row Active Time (tRASmin)32ns(min.) | Да |
| UL Rating94 V - | 0 |
| Operating Temperature0 C to +85 C | Да |
| Storage Temperature-55 C to +100 C | Да |
| Характеристики | Да |
| Захранване | VDD = 1.1V Typical |
| VDDQ = | 1.1V Typical |
| VPP = | 1.8V Typical |
| VDDSPD = | 1.8V to 2.0V |
| On-Die ECC | Да |
| Височина | 1.37” (34.9mm), w/heatsink |
| FACTORY TIMING PARAMETERS | Да |
| Default (JEDEC) | DDR5-4800 CL40-39-39 @1.1V |
| EXPO Profile #0 | DDR5-6000 CL36-38-38 @1.35V |
| EXPO Profile #1 | DDR5-5600 CL36-38-38 @1.25V |
| XMP Profile #1 | DDR5-6000 CL36-38-38 @1.35V |
| XMP Profile #2 | DDR5-5600 CL36-38-38 @1.25V |
