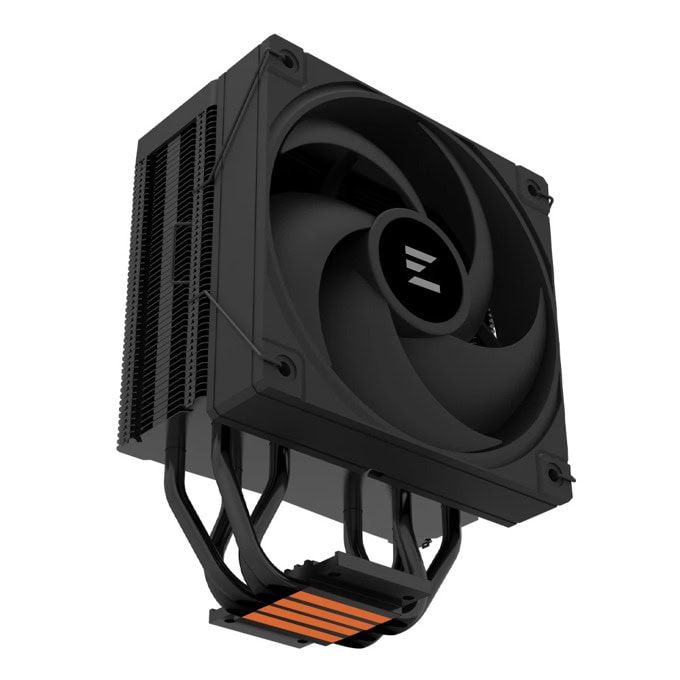

Охлаждане за процесор Zalman CNPS9X ECO DS
Zalman CNPS9X ECO DS

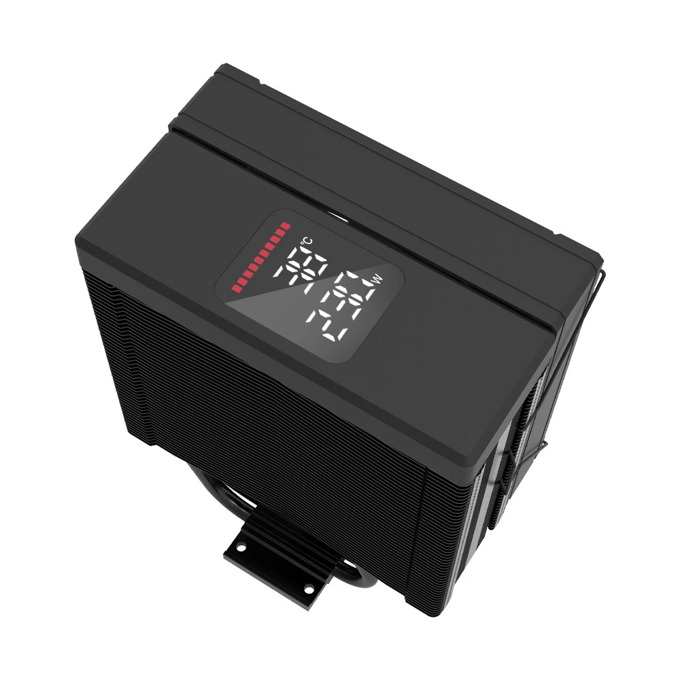

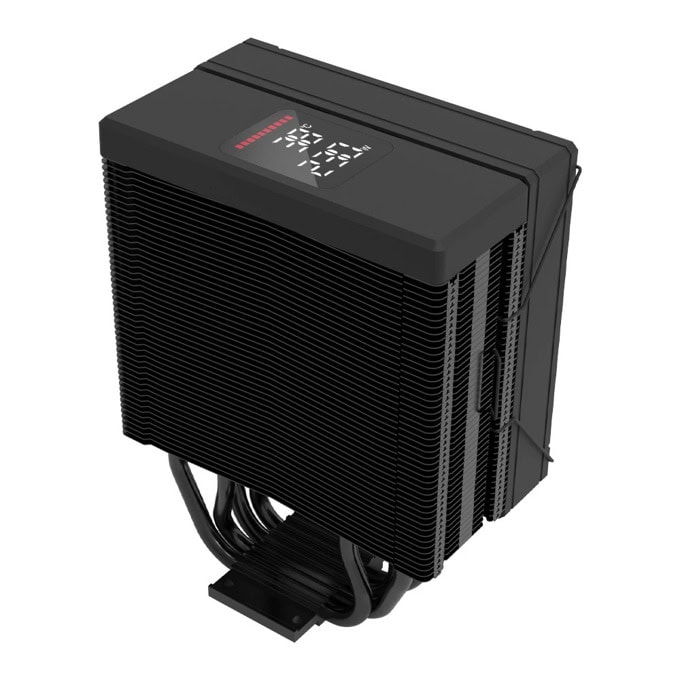

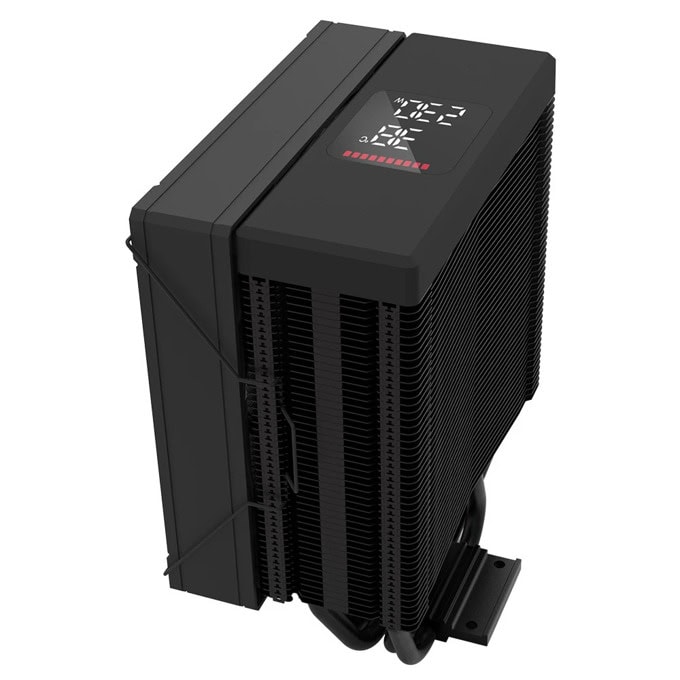

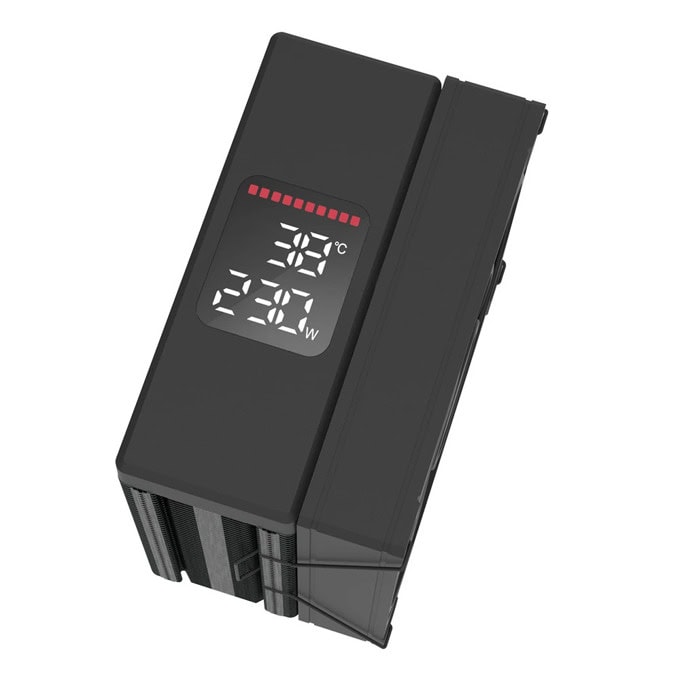

Display Top Cover1. CPU Usage2. Real-time CPU Temperature3. CPU Power Consumption

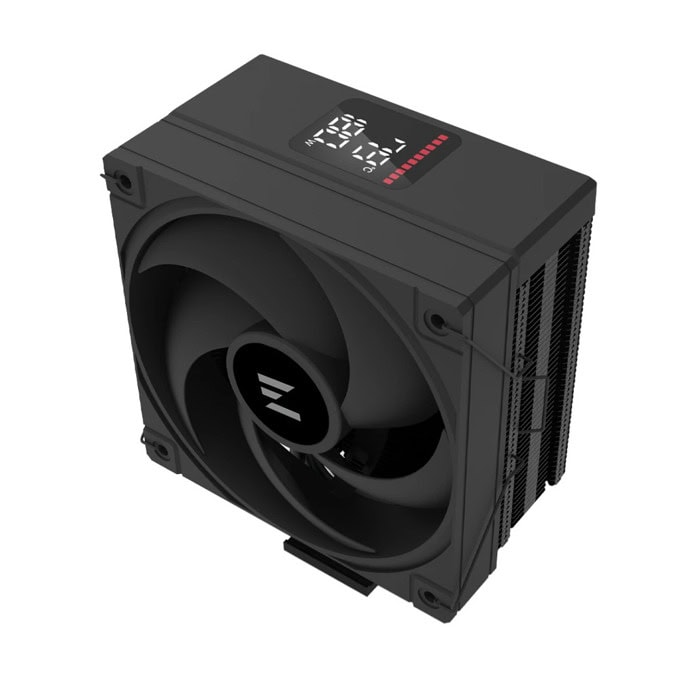

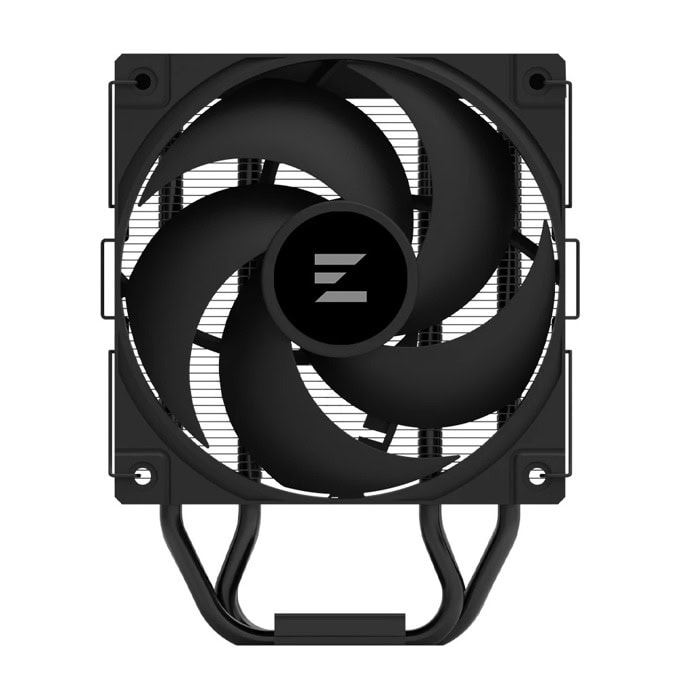

Powerful airflow with PWM Black fanThe CNPS9X ECO DS fan cooler delivers 571 CFM ±10% airflow It provides 241 mmH₂O ±10% static pressure and operates quietly at 314 dB(A) ±10% PWM automatic fan control ensures optimal cooling performance

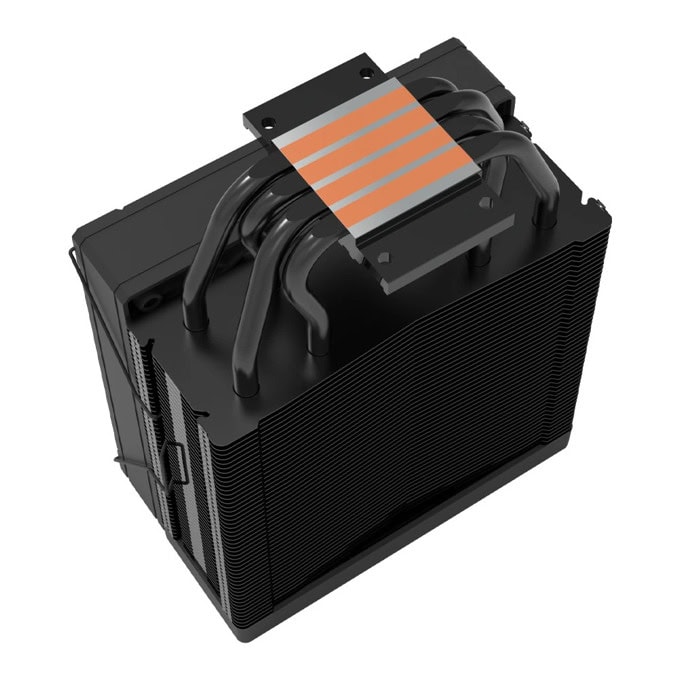

DTH(Direct Touch Heatpipe)Zalman’s DTH technology is applied to minimize thermal resistance and maximize cooling performance
CNPS9X ECO DS effectively dissipates CPU heat with four high quality heatpipes and optimally designed heat sink (Supports up to 190W TDP)
Anti-vibration Rubber DamperRubber dampers absorb vibration noise during operation
Black Coated Copper HeatpipesBlack coating adds aesthetic to CNPS9X ECO DS and improves the thermal conductivity and rust resistance
PWM Control for Automatic Speed ControlCNPS9X ECO DS fan features automatic fan speed control to achieve the optimal balance between cooling performance and noise
Характеристики
| Размери | 120 x 71 x 155(H)mm |
| Materials | Pure Aluminum, Pure Copper |
| Тегло | 498g |
| Heat Dissipation Area | 5,084㎠ |
| Heat Pipe | 4 |
| Q’Max | 190W |
| Fan Dimensions | 120 x 120 x 25(H)mm |
| Fan Bearing Type | Hydraulic bearing |
| Fan Speed | 600~2,100RPM±10% |
| Max. Fan Noise Level | 31.4dB(A)±10% |
| Max. Fan Air Flow | 57.1CFM±10% |
| Max. Fan Air Pressure | 2.41mmH2O±10% |
| Fan Life Span | 40,000hours |
| Fan Connector Type | 4-Pin |
| Fan Control Method | PWM Control |
| Rated Voltage | 12V DC |
| Rated Current | 0.13A |
| Консумация на енергия | 1.56W |
| Socket Compatibility | Intel : LGA1851 / 1700 · AMD : AM5 / AM4 |
