Охлаждане за процесор Noctua NH-U14S DX-4677

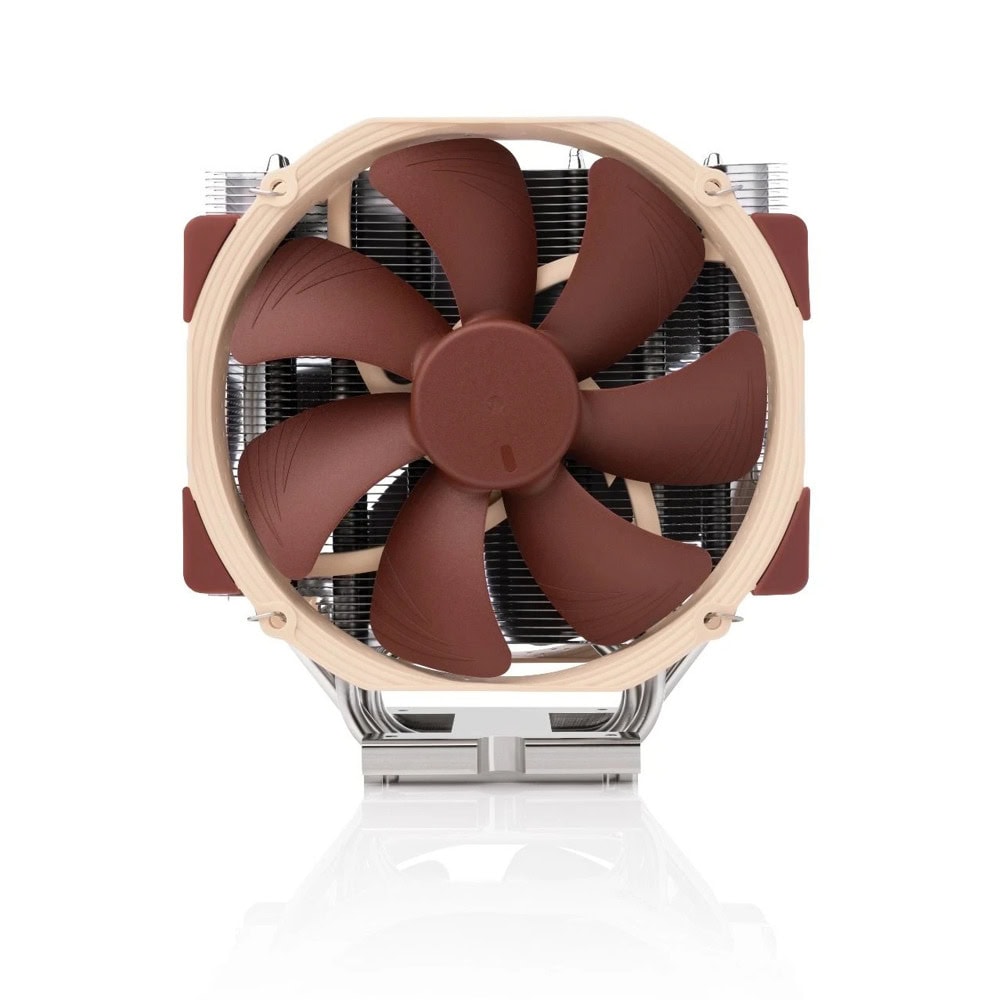

Noctua NH-U14S DX-4677
Cooler Specification
Socket compatibility
Intel Xeon LGA4677
Height (without fan)
165 mm
Width (without fan)
150 mm
Depth (without fan)
52 mm
Weight (without fan)
797 g
Height (with fan)
165 mm
Width (with fan)
150 mm
Depth (with fan)
111 mm
Weight (with fan)
1136 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
179
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
FAN Specification
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
Max. airflow
140,2 m³/h
Max. acoustical noise
24,6 dB(A)
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
JAR Computers може да предложи /смяна/монтаж в наш сервиз или при .
Характеристики
| Материал | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 179 |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
| FAN Specification | Bearing |
| SSO2 | Max. rotational speed (+/- 10%) |
| 1500 RPM | Min. rotational speed @ 20% PWM (+/-20%) |
| 300 RPM | Max. airflow |
| 140,2 m³/h | Max. acoustical noise |
| 24,6 dB(A) | Input power (max.) |
| 1,56 W | Voltage range |
| 12 V | MTTF |
