Охлаждане за процесор Noctua NH-U12S

Noctua NH-U12S

The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow™ fan with PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.

Socket compatibility Intel LGA1700 (included since Q1 2022, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4-UxS)Height (without fan) 158 mm

Width (without fan) 125 mm

Depth (without fan) 45 mm

Height (with fan) 158 mm

Width (with fan) 125 mm

Depth (with fan) 71 mm

Weight (without fan) 580 g

Weight (with fan) 755 g

Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Fan compatibility 120x120x25

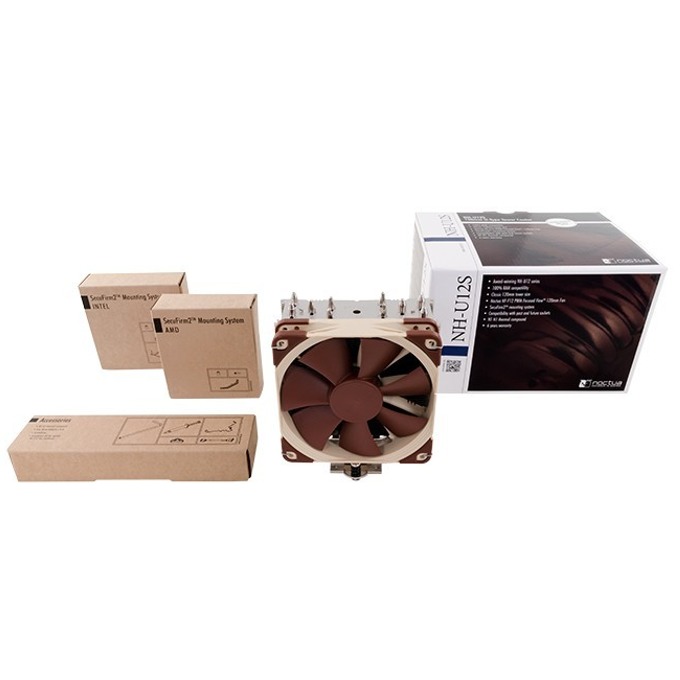

Scope of Delivery:

NF-F12 PWM premium fan

Low-Noise Adaptor (L.N.A.)

NT-H1 high-grade thermal compound

SecuFirm2™ Mounting Kit

Anti-vibration pads and fan-clips for second NF-F12

Noctua Metal Case-Badge

Fan specifications

Model Noctua NF-F12 PWM

Bearing SSO2

Max. Rotational Speed (+/- 10%) 1500 RPM

Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM

Min. Rotational Speed (PWM) 300 RPM

Max. Airflow 93,4 m3/h

Max. Airflow with L.N.A. 74,3 m3/h

Max. Acoustical Noise 22,4 dB(A)

Max. Acoustical Noise with L.N.A. 18,6 dB(A)

Input Power 0,6 W
