Охлаждане за процесор Noctua NH-D9L

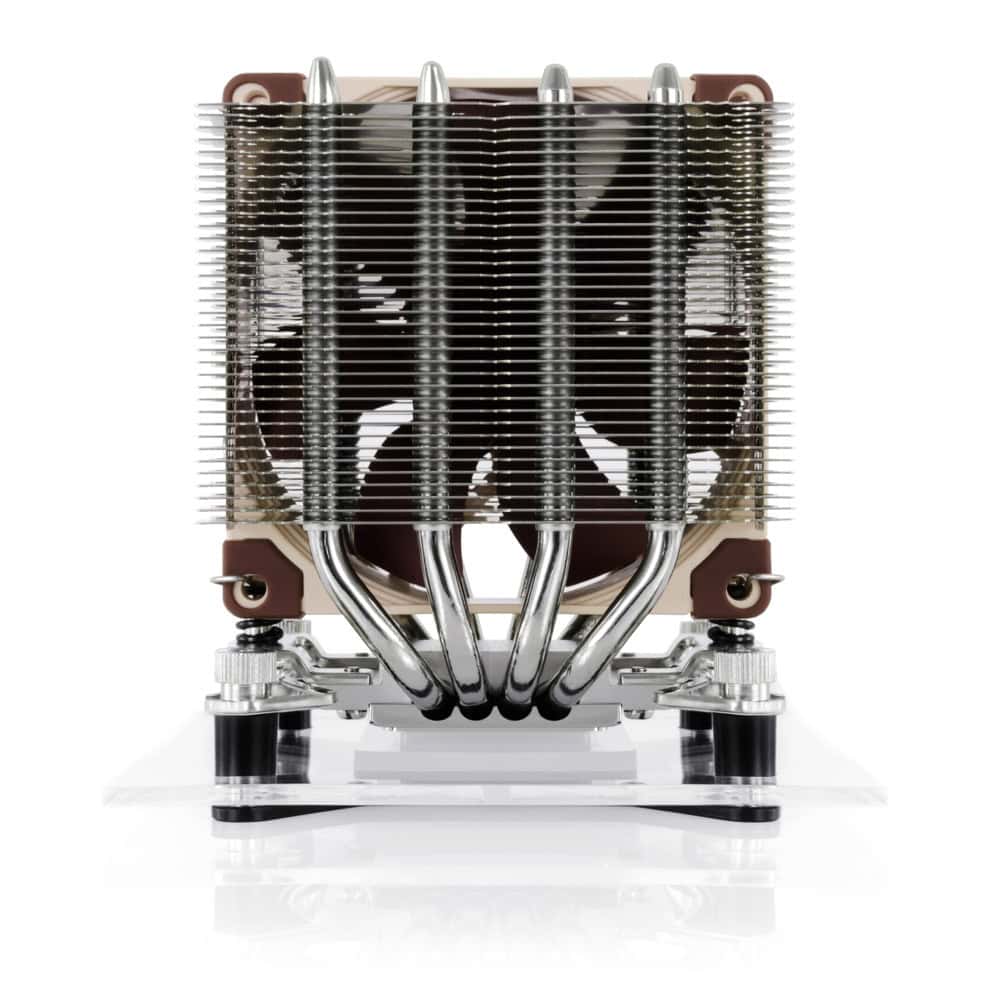

Noctua NH-D9L

The NH-D9L is a premium grade dual tower CPU cooler that has been designed to provide excellent quiet cooling performance at a

height of only 110mm. Its comparably low

profile (15mm lower than classic 9cm tower coolers such as the NH-U9S) doesn’t only guarantee full 3U compliance but also makes the NH-D9L ideal for compact HTPC and

Small Form Factor cases that have airflow paths parallel to the mainboard. Thanks to its 95x95mm footprint, the NH-D9L clears the RAM and PCIe slots on all Intel based

and most AMD based ITX mainboards. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quie

tness of operation and a second,

optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system,

Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D9L forms a highly compact premium package for space-restricted applications.

Low-profile tower design for better airflow efficiency

While most low-profile coolers blow air towards the motherboard, the NH-D9L is a tower style

cooler that bows parallel to the mainboard, which allows for superior airflow efficiency in cases

with front intake and rear exhaust fans that create an airflow path parallel to the mainboard.

3U compatibility

Whereas classic 9cm coolers with up to 125mm height fit 4U rack mount cases, the NH-D9L’s

reduced height of 110mm allows it to also fit 3U chassis. This makes it ideal for noise-sensitive

3U applications in fields such as audio or video processing.

100% compatibility with PCIe cards on mini-ITX

Many Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the

95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe

slot, the 95x95xmm sized NH-D9L provides full compatibility with PCIe cards, be it on ATX,

microATX or ITX.

NF-A9 premium fan

The highly optimised NF-A9 premium fan features Noctua’s proprietary AAO frame as well as

sophisticated aerodynamic design measures such as Flow Acceleration Channels, which allows it

to further improve the renowned efficiency of Noctua’s previous 92mm models and contributes

to the NH-D9L’s superior cooling performance.

Dual fan ready

The NH-D9L includes an extra set of fan mounting clips for users who want to achieve even better

cooling performance by adding a second, optional NF-A9 to the front fin stack. Using the y-cable

supplied with the NF-A9 PWM retail fan, both fans can be connected to one CPU fan header.

SecuFirm2™ mounting system

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety

and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156),

LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2™ mounting

included with the NH-D9L guarantees perfect contact pressure and maximum convenience

on all current sockets.

PWM support and Low-Noise Adaptor

The NF-A9 92mm fan supplied with the NH-D9L supports PWM for convenient automatic

speed control through the mainboard. In addition, the maximum fan speed can be reduced

from 2000 to 1550rpm using the supplied Low-Noise Adaptor for even quieter operation.

COOLER SPECIFICATIONS

Socket compatibility

Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4)

Height (without fan) 110 mm
