Охлаждане за процесор Noctua NH-D15S

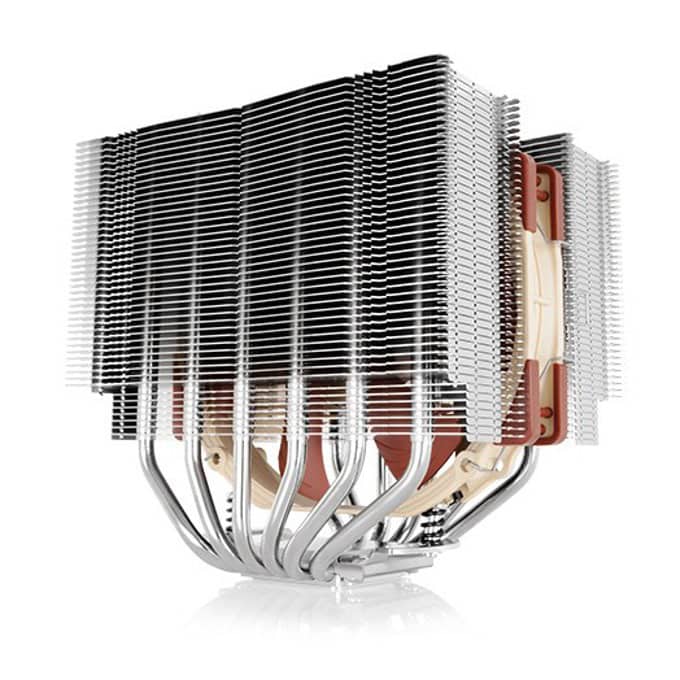

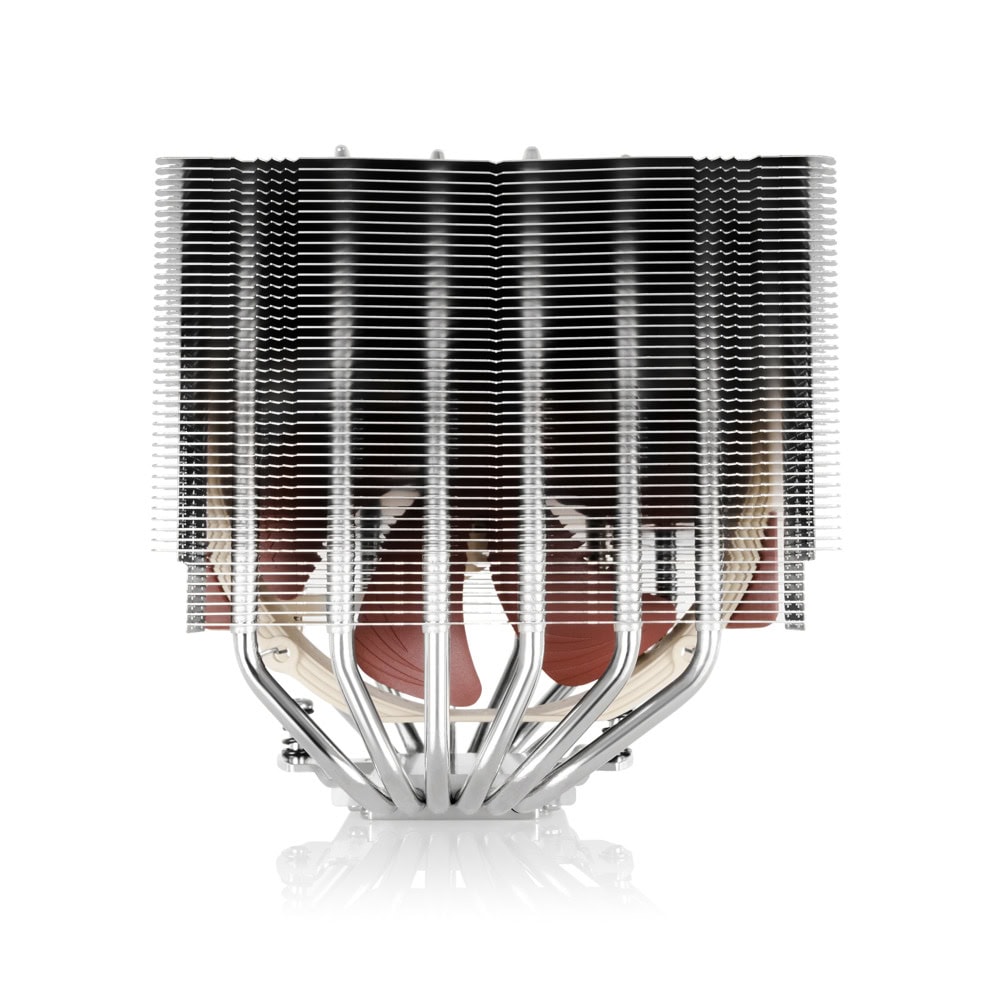

Noctua NH-D15S
Tailored to provide superior RAM and PCIe compatibility, the NH-D15S is an asymmetrical single fan version of Noctua’s award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most µATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15S forms a complete premium quality solution that combines dual tower efficiency with excellent compatibility and flexible upgrade options.
Характеристики
| Socket compatibility | Intel LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required) Height (without fan): 160 mm Width (without fan): 150 mm Depth (without fan): 135 mm Height (with fan): 165 mm Width (with fan): 150 mm Depth (with fan): 135 mm Weight (without fan): 980 g Weight (with fan): 1150 g Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel platingMax. TDP see TDP guide Fan compatibility 140x150x25 (with 120mm mounting holes) 140x140x25 (with 120mm mounting holes) 120x120x25 Fan specifications Model: 1x Noctua NF-A15 PWM Bearing: SSO2 Max. Rotational Speed (+/- 10%): 1500 RPM Max. Rotational Speed with L.N.A. (+/- 10%): 1200 RPM Min. Rotational Speed (PWM, +/-20%): 300 RPM Max. Airflow: 140,2 m³/h Max. Airflow with L.N.A.: 115,5 m³/h Max. Acoustical Noise: 24,6 dB(A) Max. Acoustical Noise with L.N.A.: 19,2 dB(A) Input Power: 1,56 W Voltage Range: 12 V MTBF: > 150.000 h |
