Охлаждане за процесор be quiet! Dark Rock 5
be quiet! DARK ROCK 5
Dark Rock is the high-end series of the be quiet! range of CPU coolers. It includes double-tower, single-tower and top-flow cooler designs. They all follow the distinctive be quiet! design language and offer the highest cooling power available. Dark Rock coolers are virtually inaudible at regular speed and feature the famous be quiet! Silent Wings technology at the heart of your PC. They are excellent for overclocked systems and demanding workstations.
Immensely high cooling efficiency
- Immensely high cooling capacity keeps the temperature low even at peak performance

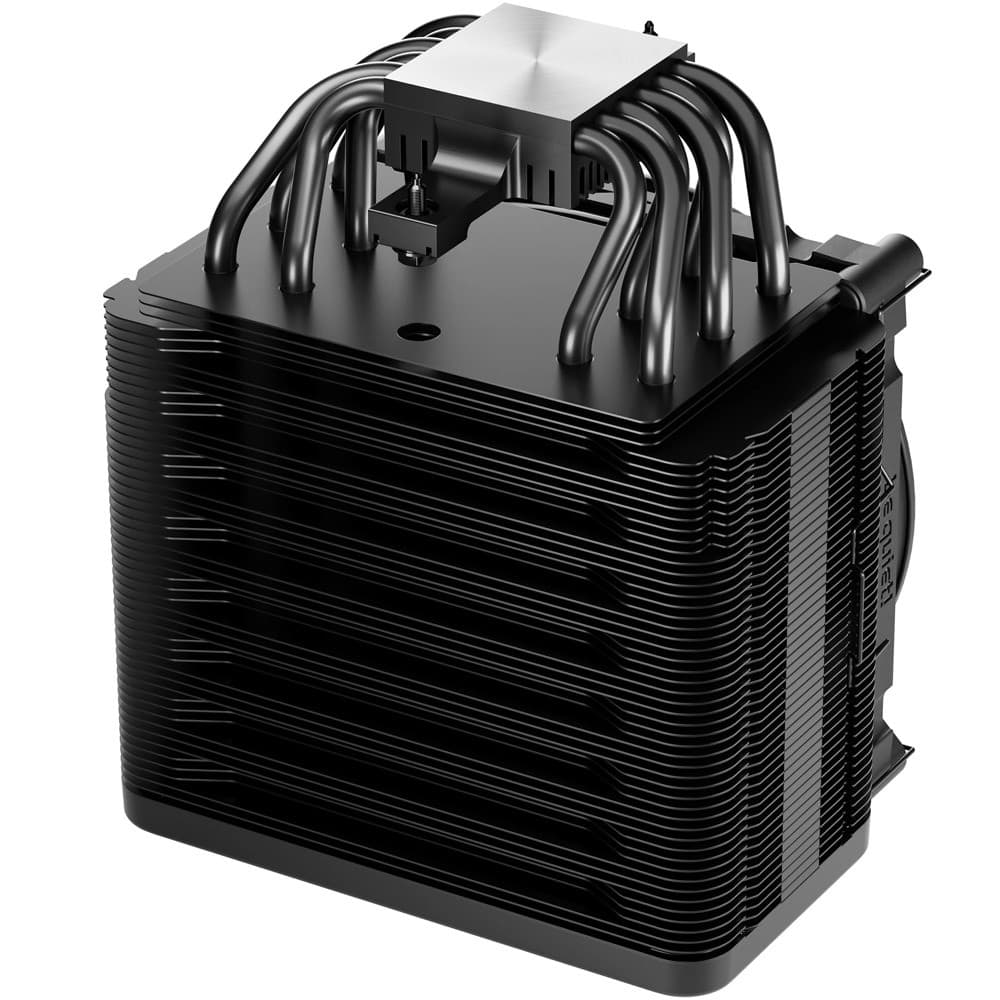

- Up to 7 high-performance heat pipes carry heat to the optimal location on the cooling fins, maximizing heat conductance
- Airflow-optimized cooling fins increase the air circulation
- Special black coating with ceramic particles enables perfect heat transfer
Virtually Inaudible Operation
- Silent Wings PWM fans with advanced fluid-dynamic bearing, airflow-optimized fan blades and an innovative 6-pole fan motor for less vibration
- Decoupled fan mounting with vibration-isolating elements on the heat sink
- Noise never exceeds 27.1dB(A) even at 100% PWM function
Specs:
TDP (W)210
Color optionBlack
Overall dimensions without mounting material (L x W x H), (mm)101 x 136 x 161
Total weight (kg)1.03
Socket compatibility Intel1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMDAM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm)11.9 / 23.2 / 29.8
Number of fans1
Lighting connector-
Heatsink specifications
Dimensions (L x W x H), (mm)76 x 136 x 161
Fin materialAluminum
Surface treatmentCeramic coating
Base materialCopper
CPU contact surfaceCNC machined
Heatpipe number / Diameter (mm)6 / 6
Decoupled fan mounting-
Fan specifications
Fan modelSilent Wings 4 120mm PWM
Fan dimensions (mm)120 x 120 x 25
Speed @ 100% PWM (rpm)2100
Airflow at 100% PWM / 12V (CFM / m3/h)55.0 / 93.5
Air Pressure at 100% PWM / 12V (mm H2O)2.73
Bearing technologyFluid Dynamic Bearing
Характеристики
| Motor technology6-pole fan motor | Rated Voltage (V)12 |
| Input current (A)0.10 | Safety current (A)0.20 |
| Input power (W)2.4 | Connector4-pin PWM |
| Lighting connector- | Cable length (mm)220 |
| Lifespan (h / 25°C)300,000 | Y-Cable- |
| Safety certification | ApprovalsCE, UKCA, UL, TÜV |
