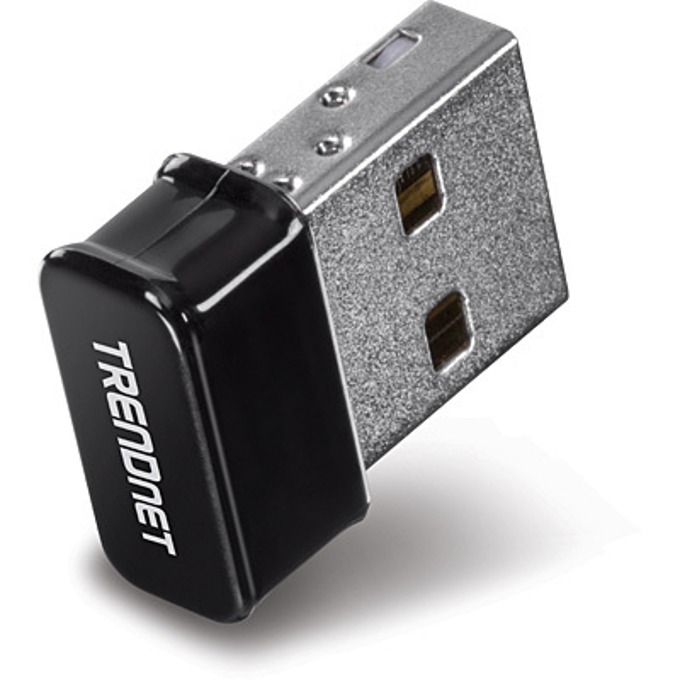

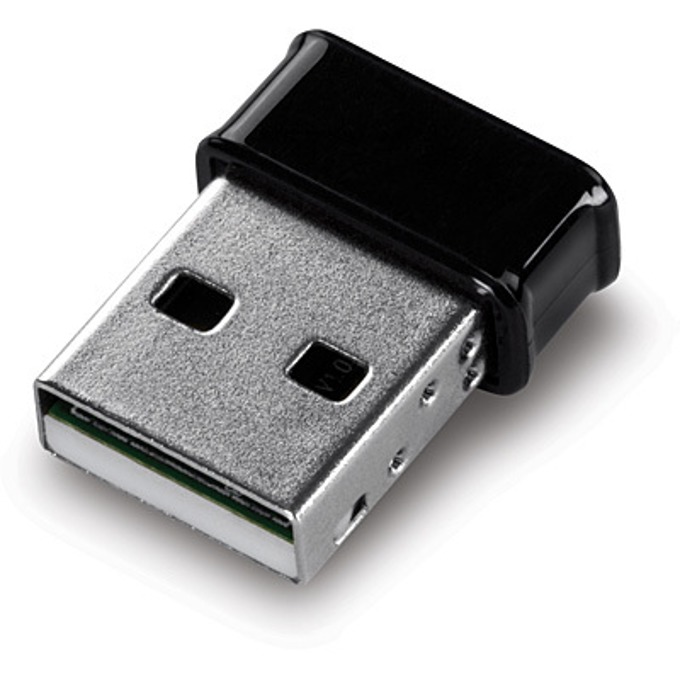

Мрежови адаптер TRENDnet TEW-808UBM

TEW-808UBM (Version v1.0R)

Quick and easy setup
Ultra-compact high speed WiFi AC1200 MU-MIMO adapter
Upgrade your laptop or desktop to wireless AC
Dual band support for 2.4GHz and 5GHz WiFi networks
WMM Quality of Service (QoS) data prioritization
Supports Windows® and Mac® operating systems

Specifications

Standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300Mbps)
IEEE 802.11ac (up to 867Mbps)

Hardware Interface

USB 2.0
LED Indicator

Special Features

High-speed 802.11ac connectivity
Explicit Beamforming
Supports MU-MIMO technology

Compatibility

Windows® 10, 8.1, 8, 7
Mac OS® 10.9 – 10.12

Data Rate

802.11a: up to 54Mbps
802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 300Mbps (2.4GHz & 5GHz)
802.11ac: up to 867Mbps

Encryption

64/128-bit WEP, WPA / WPA2-Enterprise, WPA / WPA2-PSK (AES/TKIP)
Quality of Service
WMM

Frequency

2.400 – 2.483GHz
5.150 – 5.825GHz

Modulation

802.11b: CCK, DQPSK, DBPSK
802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Antenna

2.4GHz / 5GHz: 2 x 1 dBi (max.) dual band internal

Output Power

802.11a: 8.5 dBm (max.) @ 54Mbps
802.11b: 9.5 dBm (max.) @ 11Mbps
802.11g: 8.5 dBm (max.) @ 54Mbps
802.11n: 7.5 dBm (max.) (2.4GHz & 5GHz) @ 300Mbps
802.11ac: 5.5 dBm (max.) @ 867Mbps

Receiving Sensitivity

802.11a: -70 dBm (typical) @ 54Mbps
802.11b: -81 dBm (typical) @ 11Mbps
802.11g: -70 dBm (typical) @ 54Mbps
802.11n (2.4GHz): -68 dBm (typical) @ 300Mbps
802.11n (5GHz): -67 dBm (typical) @ 300Mbps
802.11ac: -54 dBm (typical) @ 867Mbps

Wireless Channels

2.4GHz: FCC: 1-11; ETSI: 1-13
5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**

Power

Consumption: Max. 0.98W

Operating Temperature
0° – 40° C (32° – 104° F)

Operating Humidity
Max. 90% non-condensing

Dimensions
20 x 15 x 7mm (0.8 x 0.6 x 0.3 in.)

Weight
2g (0.07 oz.)
