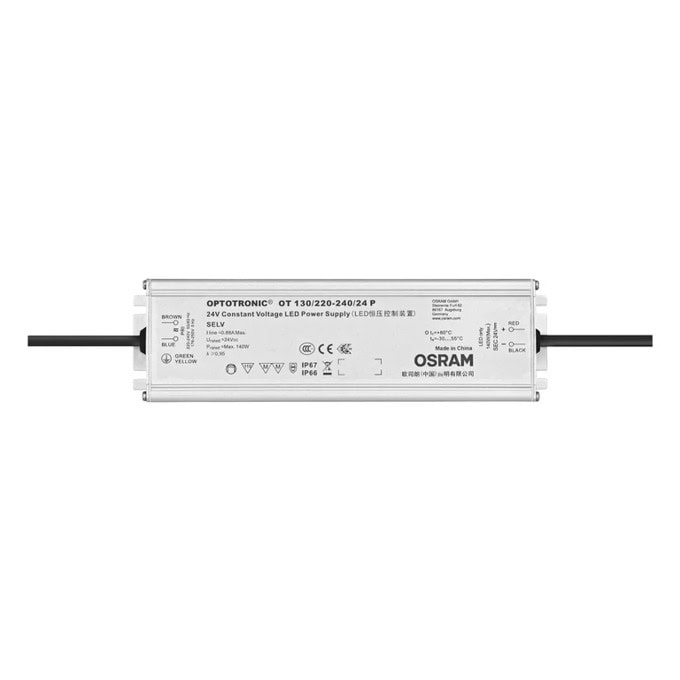

LED захранване Osram Optotronic

Артикул №: 1000034451

Категория: LED Захранвания

121,99 €

✓ Налично във външен склад

Product benefits

Large range of products from 20 W to 250 W
Installation in very cold and hot environments
Very stable output power
High electronical reversible short-circuit, overload, overtemperature protection
Smart Power Supply: boosting power to turn on cold LEDs
Independent installation possible

Areas of application

Product features

Electrical data

Nominal wattage	140.00 W
Nominal output power	130 W
Nominal voltage	220…240 V
Nominal output voltage	24.2 V
Input voltage AC	198…264 V
Input voltage DC	176…250 V
Inrush current	60 A
Mains frequency	0/60 Hz
Total harmonic distortion	< 15 %
Power factor λ	0.95
ECG efficiency	90.5 %
Device power loss	14.7 W
Max. ECG no. on circuit breaker 10 A (B)	8
Max. ECG no. on circuit breaker 16 A (B)	13
Max. ECG no. on circuit breaker 25 A (B)	20
Surge capability (L/N-Ground)	6 kV
Surge capability (L-N)	4 kV
Galvanic isolation	SELV

Dimensions & Weight

Length	220.00 mm
Mounting hole spacing, length	207 mm
Width	63.00 mm
Height	37.00 mm
Cable cross-section, input side	1 mm²
Cable cross-section, output side	1 mm²
Wire preparation length, input side	90 mm
Wire preparation length, output side	90 mm
Product weight	943.00 g

Colors & materials

Casing material	Metal
Body material	Metal

Temperatures & operating conditions

Ambient temperature range	-30…+55 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % 1)

1) Maximum 56 days/year at 85 %

Lifespan

ECG lifetime

50000 h

Additional product data

Encapsulated

Yes

Capabilities

Dimmable	No
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
No-load proof	Yes
Suitable for fixtures with prot. class	I
Type of connection, output side	Cables

Certificates & Standards

Approval marks – approval	ENEC, RCM, CCC, EAC
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 61000-3-3, Acc. to EN 60598-1, Acc. to EN 62384
Protection class	I
Type of protection	IP66/IP67

LOGISTICAL DATA

Temperature range at storage

-40…+85 °C
