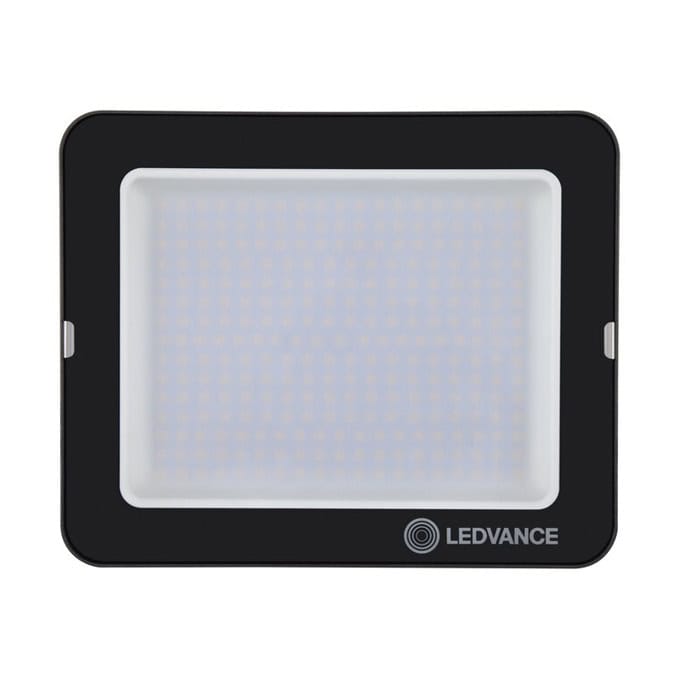

LED прожектор Ledvance FL COMP V 840 SYM 100 BK

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas

Product features

• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)

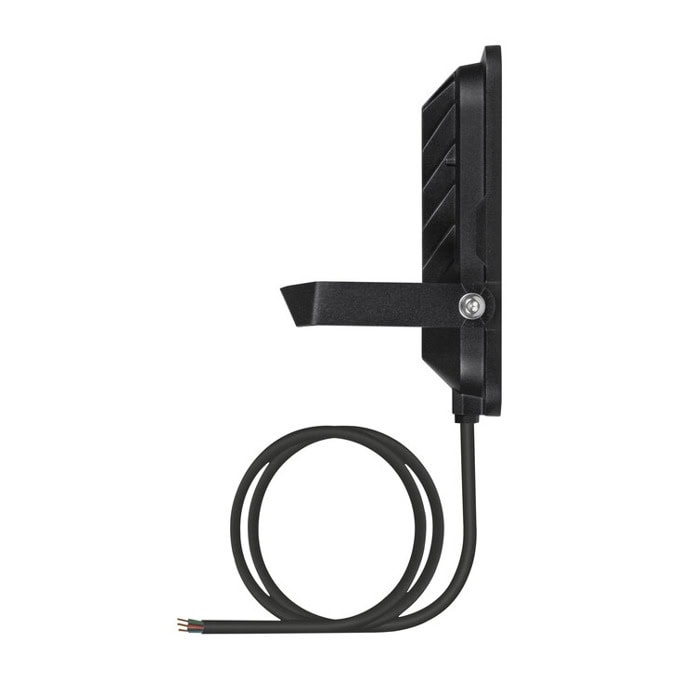

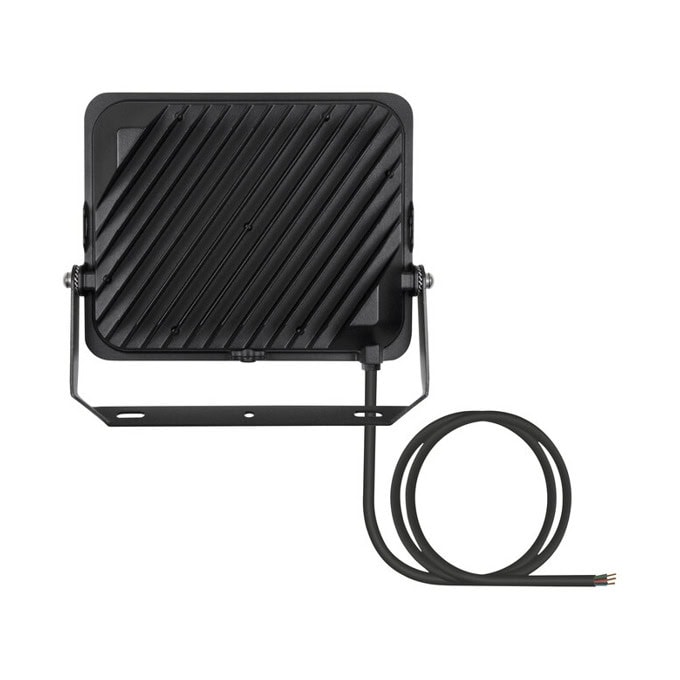

• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
• Breather membrane to optimize air exchange, without compromising IP protection

Safety advice

• Max. wind load surface 0.061 m²
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Technical data

Electrical data

Nominal wattage135.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current649 mA

Inrush current9 A

Inrush current time Th502.7 µs

Max. number of luminaires per miniature circuit breaker B1613

Max. number of luminaires per miniature circuit breaker C1010

Max. number of luminaires per miniature circuit breaker C1616

Power factor λ> 0.90
