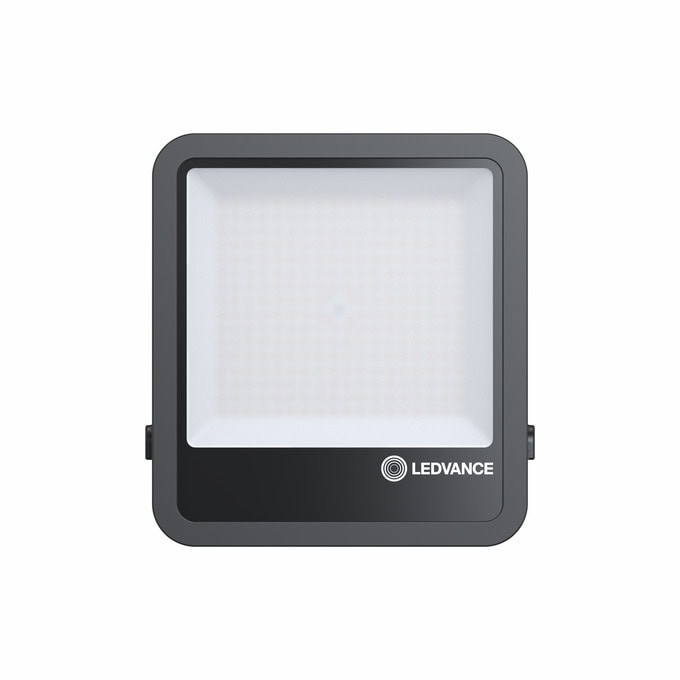

LED прожектор Ledvance FL 200 P 133W 20KLM 840 PS SY100 BK

Product benefits

• Breather membrane to optimize air exchange, without compromising IP protection
• Highly versatile due to selectable power steps (Multi Lumen) on the housing
• Robust cable gland with integrated waterstop function
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• Bright, robust and durable
• Energy savings of up to 90 % compared to halogen lamp floodlights
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP66)
• D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
• Public areas
• Building facades
• Construction areas
• Parking

Product features

• High luminous efficacy: up to 150 lm/W
• Type of protection: IP66
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
• Reflector-based, symmetric light distribution with 100° x 100° beam angle

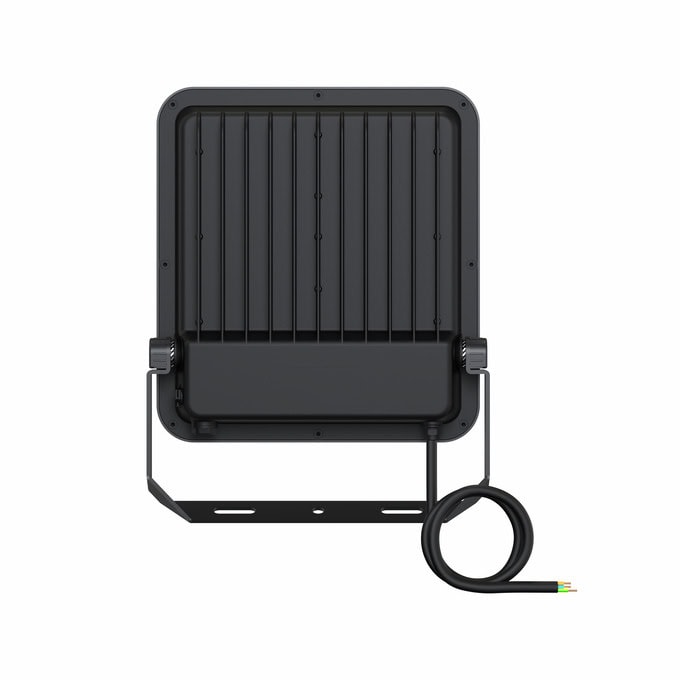

• Mounting bracket with 30° angle and wide rotation area

Safety advice

• Max. wind load surface 0.085 m²

Technical data

Electrical data

Nominal wattage133 W / 117 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current590/519 mA

Inrush current34.6 A

Inrush current time Th50552 µs

Max. number of luminaires per miniature circuit breaker B164

Max. number of luminaires per miniature circuit breaker C104

Max. number of luminaires per miniature circuit breaker C167

Power factor λ> 0.90

Total harmonic distortion

Photometrical data

Luminous flux20000 lm / 17500 lm

Luminous efficacy150 lm/W

Color temperature4000 K

Light color (designation)Cool White

Color rendering index Ra80

Standard deviation of color matching5 sdcm

Stroboscope effect metric (SVM)≤0.9

Photobiological safety group acc. to EN62778RG1

Photobiological safety group acc. to EN62471RG1
