Ledvance

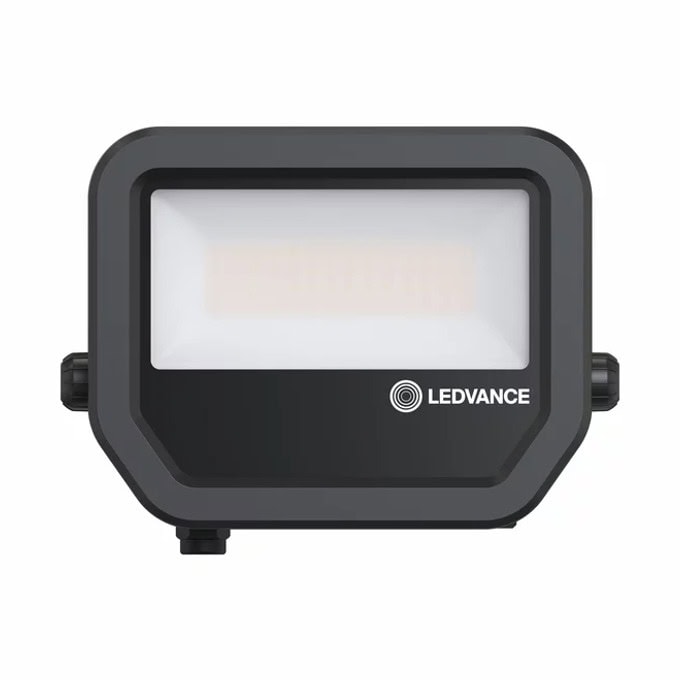

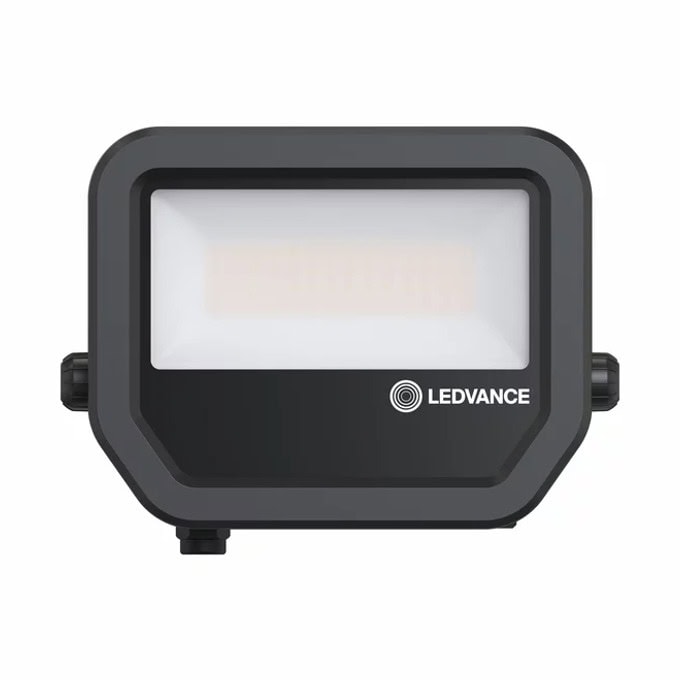

LED прожектор Ledvance FL 20 P 2K4LM 840 PS SY100 BK
Артикул №: 1000137528
Категория:
Електрически крушки
22,99 €
✓ Налично във външен склад
Product benefits
- Breather membrane to optimize air exchange, without compromising IP protection
- Highly versatile due to selectable power steps (Multi Lumen) on the housing
- Robust cable gland with integrated waterstop function
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- Bright, robust and durable
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Building facades
- Construction areas
- Parking
- Gardens and balconies
Product features
- High luminous efficacy: up to 145 lm/W
- Type of protection: IP66
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle

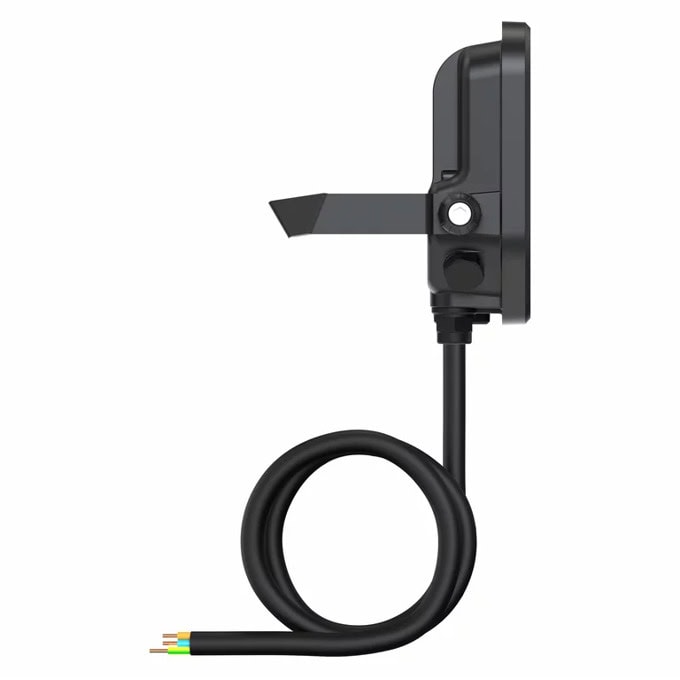

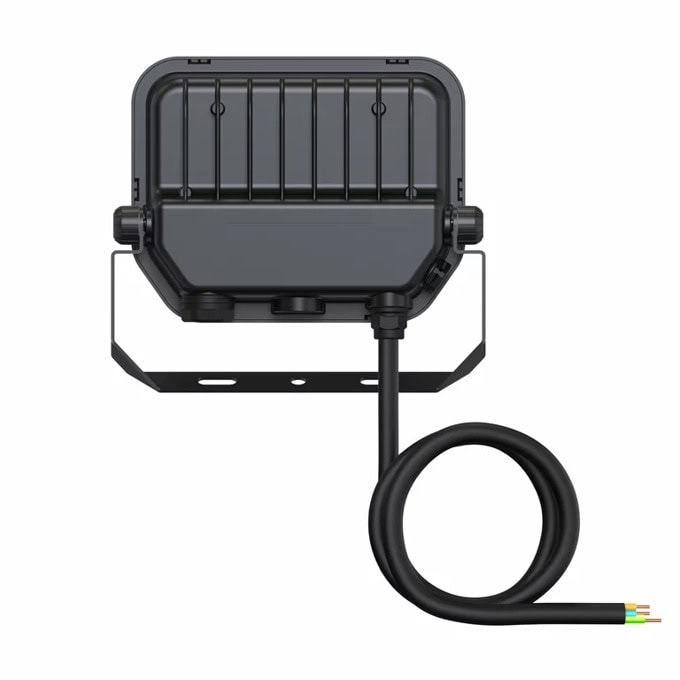

- Mounting bracket with 30° angle and wide rotation area
Safety advice
- Max. wind load surface 0.015 m²
Характеристики
| Nominal wattage17 W / | 11 W |
| Nominal voltage220…240 V | Да |
| Mains frequency50…60 Hz | Да |
| Nominal current75/60 mA | Да |
| Inrush current7.32 A | Да |
| Inrush current time Th5023.4 µs | Да |
| Power factor λ> | 0.90 |
| Total harmonic distortion | Да |
| Photometrical data | Да |
| Luminous flux2400 lm / | 1600 lm |
| Luminous efficacy145 lm/W | Да |
| Color temperature4000 K | Да |
| Light color (designation)Cool White | Да |
| Color rendering index Ra80 | Да |
| Standard deviation of color matching5 sdcm | Да |
| Stroboscope effect metric (SVM)≤0.9 | Да |
| Photobiological safety group acc. to EN62778RG1 | Да |
| Photobiological safety group acc. to EN62471RG1 | Да |
| Beam angle100 ° x | 100 ° |
| Dimensions & Weight | Да |
| Length157.00 mm | Да |
| Height141.00 mm | Да |
| Width38.00 mm | Да |
| Product weight526.00 g | Да |
| Cable length1000 mm | Да |
| Materials & Colors | Да |
| Product colorBlack | Да |
| Housing colorBlack | Да |
| Body materialAluminum | Да |
| Cover materialGlass | Да |
| Light emitting surface materialGlass | Да |
| Glow Wire Test according to IEC | 60695-2-12650 °C |
| Mercury content0.0 mg | Да |
| Application & Mounting | Да |
| Ambient temperature range-30…+50 °C | Да |
| Temperature range at storage-40…+70 °C | Да |
| Type of connectionCable, | 3-pole |
| Type of protectionIP66 | Да |
| Protection class IK (shock resistance)IK07 | Да |
| Corrosion resistance class acc. to EN | 12944C4 |
| DimmableNo | Да |
| Mounting typeSurface | Да |
| Mounting locationWall, Ceiling, Floor | Да |
| Application environmentOutdoor | Да |
| AdjustableYes | Да |
| Replaceable light source (EPREL)Not replaceable | Да |
| With light sourceYes | Да |
| Lifespan | Да |
| Lifespan L70/B50 at | 25 °C100000 h 1) |
| Lifespan L80/B10 at | 25 °C75000 h 1) |
| Lifespan L90/B10 at | 25 °C35000 h |
| 1) t[h] | L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta) |
| Control gear | Да |
| Output current133 mA | Да |
| ECG - Output ripple current | Да |
| Certificates & Standards | Да |
| StandardsCE, CB, ENEC, EAC, UKCA, EPD | Да |
| Luminaire with limited surface temperature, "D sign"Yes | Да |
| Ball shot safeNo | Да |
| Additional product data | Да |
| Added functionMULTI SELECT | Да |
