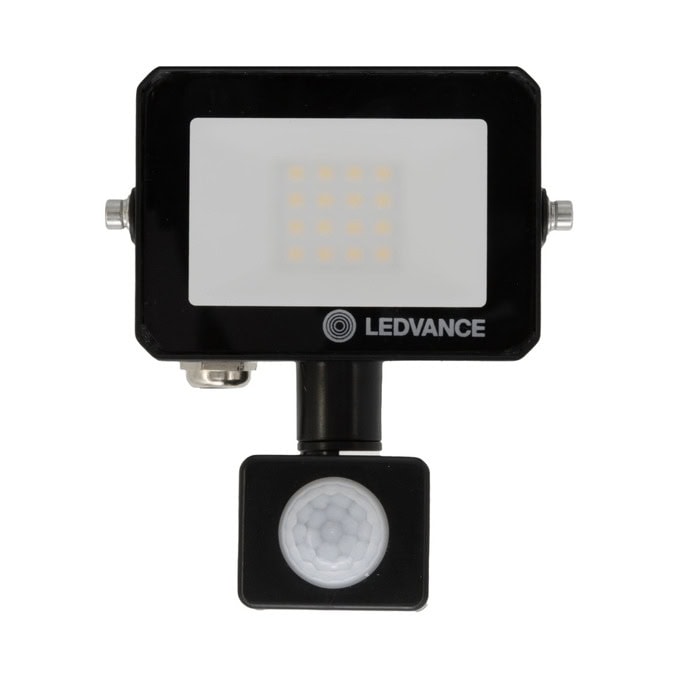

LED прожектор Ledvance Effect 865 Black

Areas of application

Gardens and other outdoor areas

Workshops, garages, covered outdoor storage areas

Outdoor use (IP65)

Product benefits

Milky glass reducing the glare effect

Bent-over bracket for easy mounting

Easy adjustment of sensor range, daylight detection and hold time

Product features

Modern design

Lifetime up to 30,000 h

Frosted diffuser

Adjustable sensor with functions: Time, lux, zone

Technical data

Electrical data

Nominal wattage 10.00 W

Nominal voltage 220…240 V

Mains frequency 50 Hz

Nominal current 45.000 mA

Max. number of luminaires per miniature circuit breaker B16 164

Max. number of luminaires per miniature circuit breaker C16 215

Power factor λ > 0.85

Total harmonic distortion Photometrical data

Luminous flux 900 lm

Luminous efficacy 90 lm/W

Color temperature 6500 K

Light color (designation) Daylight

Color rendering index Ra 80

Standard deviation of color matching 6 sdcm

Photobiological safety group acc. to EN62778 RG1

Beam angle 105 °

Dimensions & Weight

Length 102.00 mm

Width 134.00 mm

Height 52.00 mm

Product weight 200.00 g

Materials & Colors

Product color Black

Housing color Black

Body material Aluminum

Glow Wire Test according to IEC 60695-2-12 650 °C

Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C

Temperature range at storage -30…+80 °C

Type of connection Cable, 3-pole
