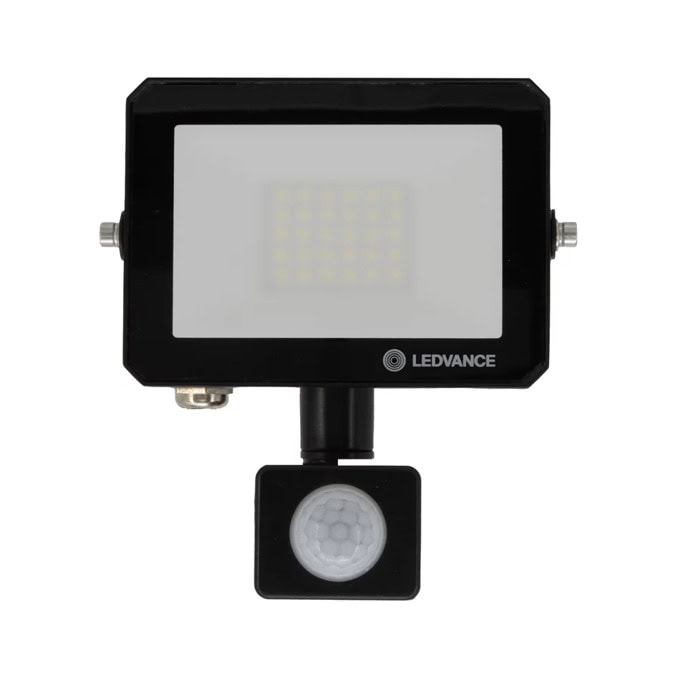

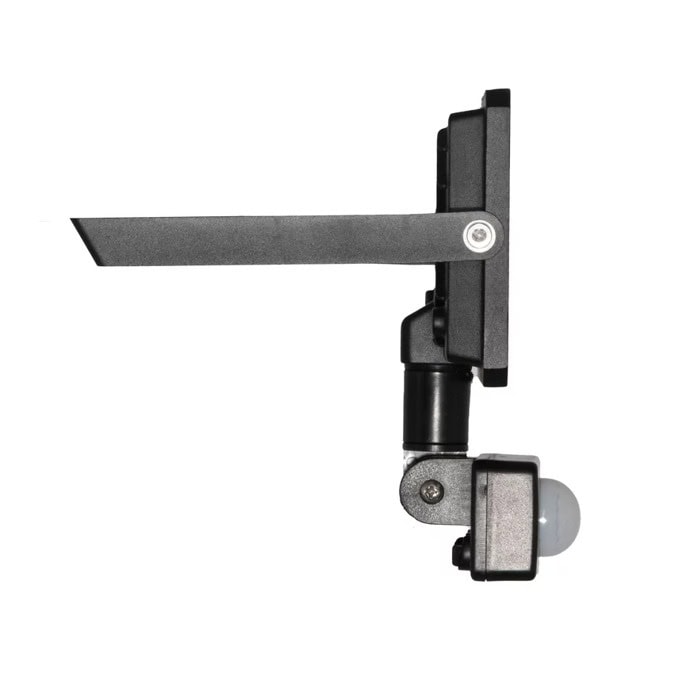

LED прожектор Ledvance Effect 840 Black
Electrical data
Nominal wattage 30.00 W
Nominal voltage 220…240 V
Mains frequency 50 Hz
Nominal current 135.000 mA
Max. number of luminaires per miniature circuit breaker B16 94
Max. number of luminaires per miniature circuit breaker C16 94
Power factor λ > 0.90
Total harmonic distortion Photometrical data
Luminous flux 2700 lm
Luminous efficacy 90 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra 80
Standard deviation of color matching 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 105 °
Dimensions & Weight
Length 159.00 mm
Width 175.00 mm
Height 52.00 mm
Product weight 384.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -30…+80 °C
Type of connection Cable, 3-pole
Характеристики
| Type of protection IP65 | Protection class IK (shock resistance) IK06 |
| Dimmable No | Mounting type Surface |
| Mounting location Wall | With light source Yes |
| Replaceable light source No | Lifespan |
| Number of switching cycles 20000 | Sensor |
| Type of sensor Light / Motion | Sensor technology Passive infrared (PIR) |
| Sensor detection angle 120 ° | Sensor controlled switching time 8 s...10 min |
