LED осветително тяло Videx VLE-SLE14-305

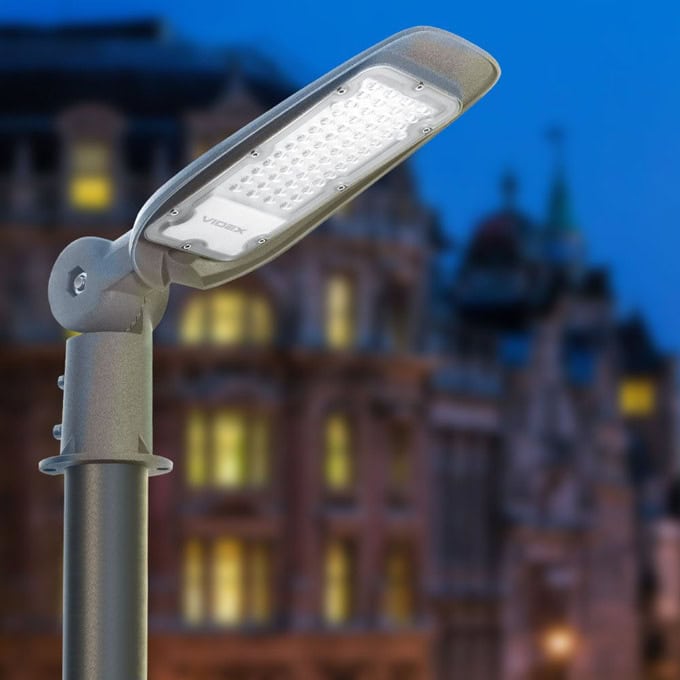

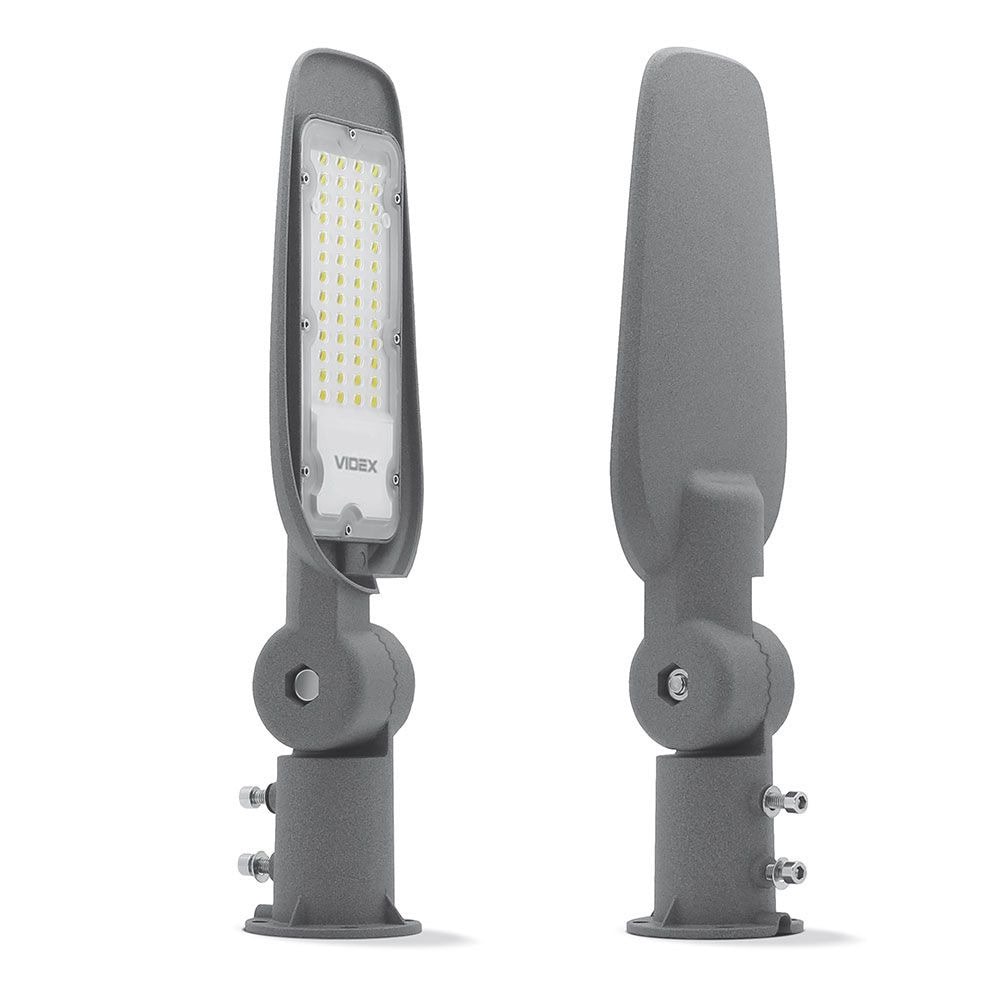

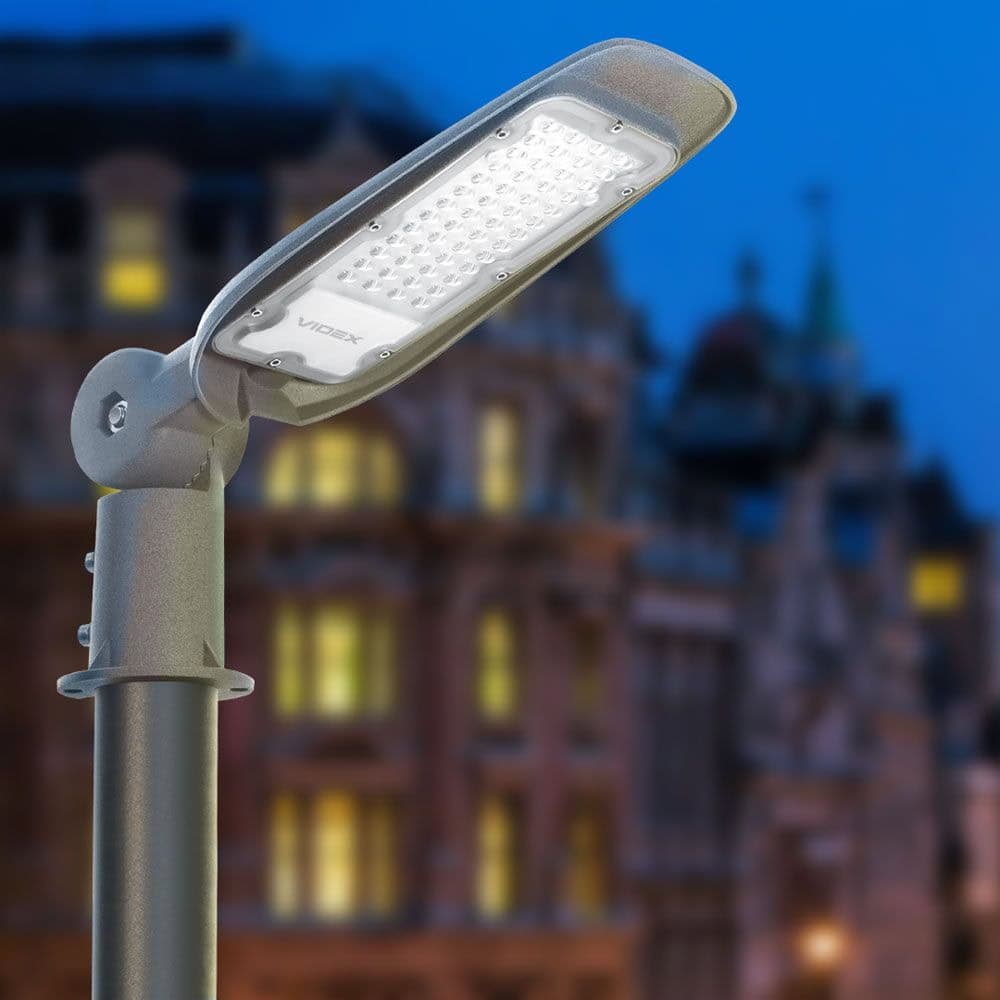

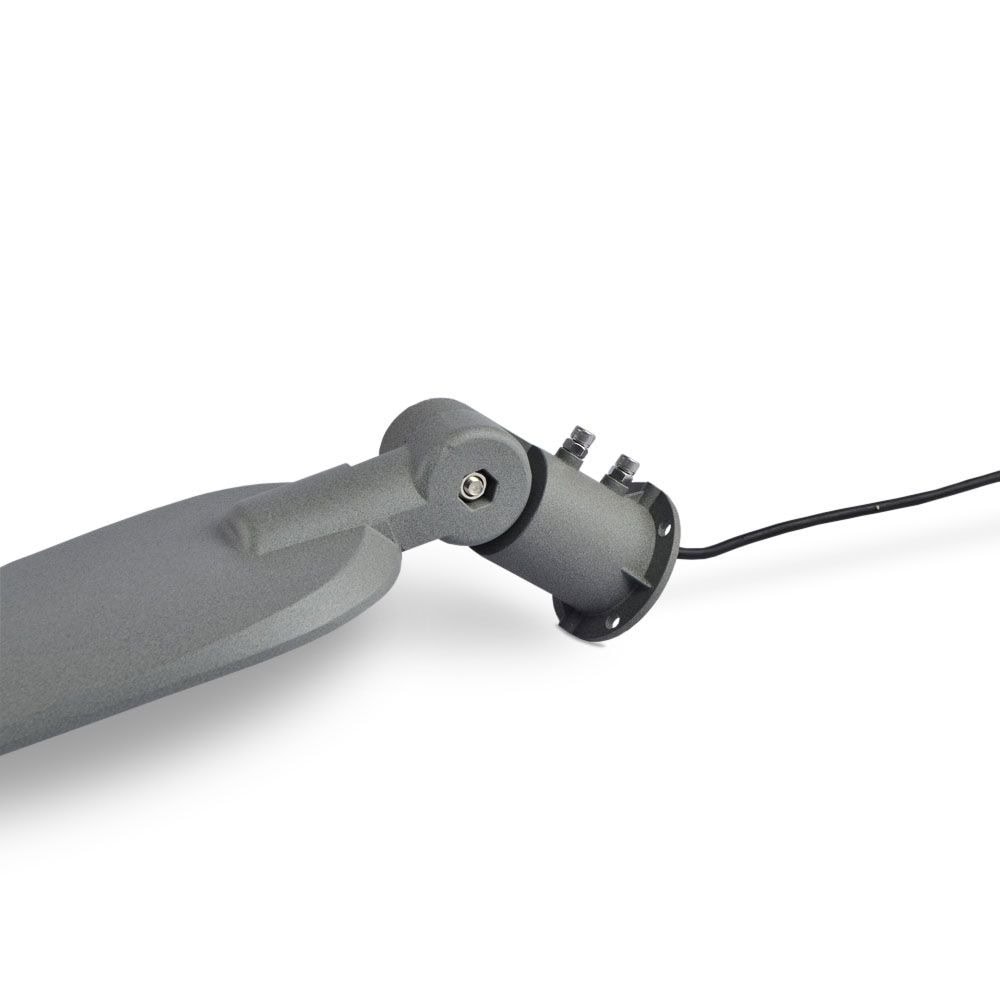

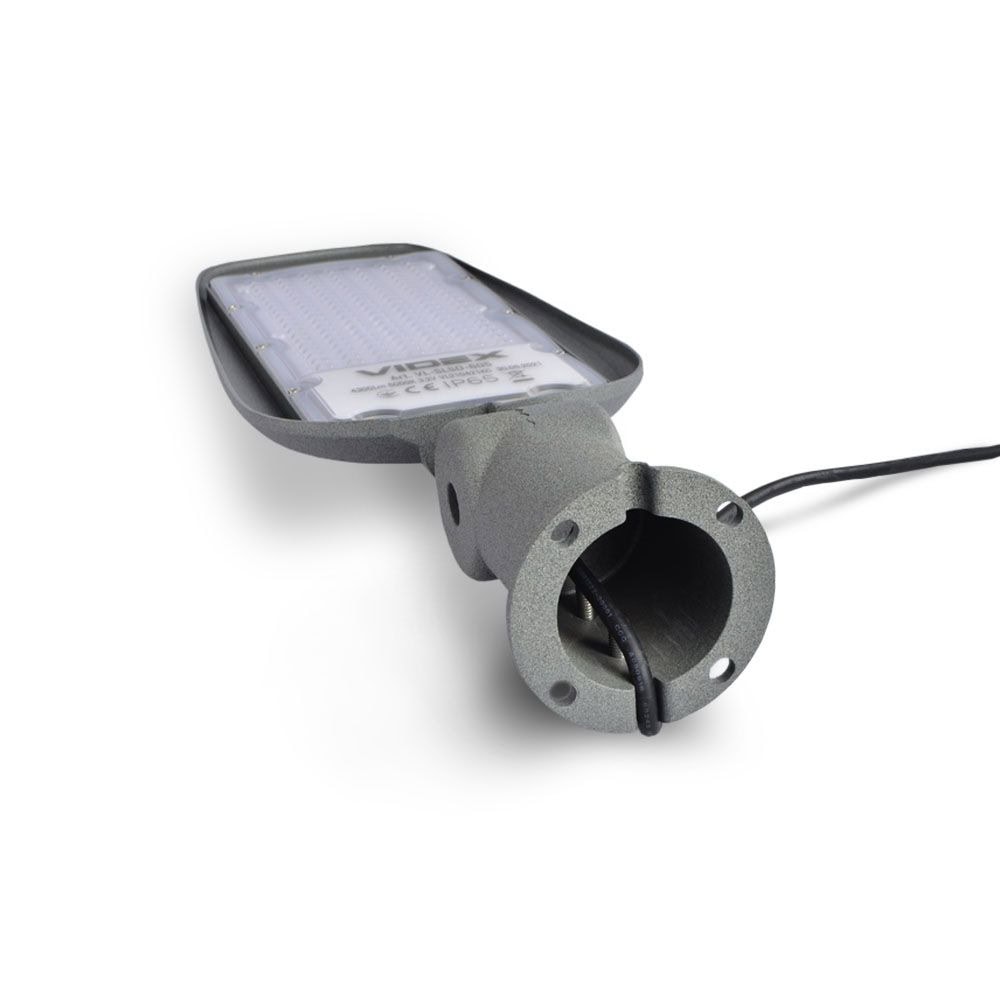

VIDEX LEYA is an LED street light with complete protection against water, dirt and mechanical impact. This product is intended for lighting of park paths, street sidewalks, yards, roads of local and regional importance. A wide range of operating temperatures removes restrictions on the use of the light in any weather. The housing of the lamp is equipped with the mechanism of adjustment of an angle of inclination within 200 degrees. The hybrid mounting part makes it possible to install the light not only on poles but also on walls. The surface of the case is covered with a special rough layer that is difficult to scratch or damage. LEDs are equipped with oval-shaped optical lenses, which allows them to distribute light mainly along the road. Long service life of 30,000 hours.
Характеристики
| On-mode power (Pon) | 30 W |
| Useful luminous flux of the light source (Φuse) | 2700 Lm |
| Correlated color temperature | 5000K (neutral white) |
| Peak luminous intensity | 1700 cd |
| Rated voltage, frequency | AC 220-240 V, 50/60 Hz |
| Beam angle | 90 × 130° |
| Place of installation | Pillar, Wall |
| Vertical adjustment range | 200° |
| Place of application | outdoor |
| Mounting hole size | Ø54 mm |
| Дължина на кабела | 30 cm |
| Rated current | 140 mA |
| Power factor (PF) | 0.9 |
| Color rendering index (CRI) | Ra > 80 |
| Lifetime | 30000 h |
| On/Off cycles | 20000 |
| Housing colour | Сив |
| Impact protection | IK07 |
| Input interface | Free wire ends |
| Useful luminous flux of the light source reference | in a wide cone (120°) |
| Electric shock protection class | I |
| Minimum distance from the illuminated object | 0.5 m |
| Diffuser material | PC |
| Diffuser type | symmetric |
| Operating temperature range | -20° +50°C |
| Dimmable | Не |
| Control gear replaceable | - |
| Light source replaceable | Не |
| Mercury content | Does not contain |
| Ingress protection | IP65 |
| Housing material | Aluminum alloy |
| Височина | 439 mm |
| Ширина | 129 mm |
| Дълбочина | 88 mm |
