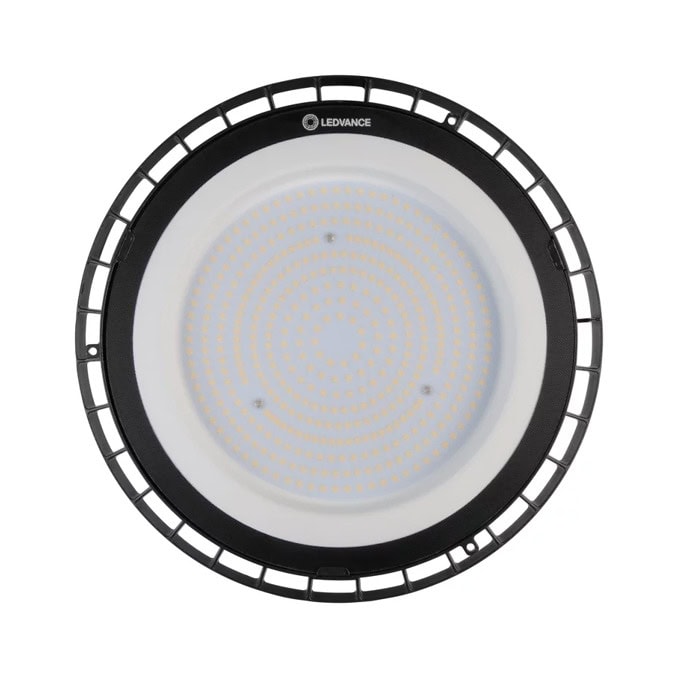

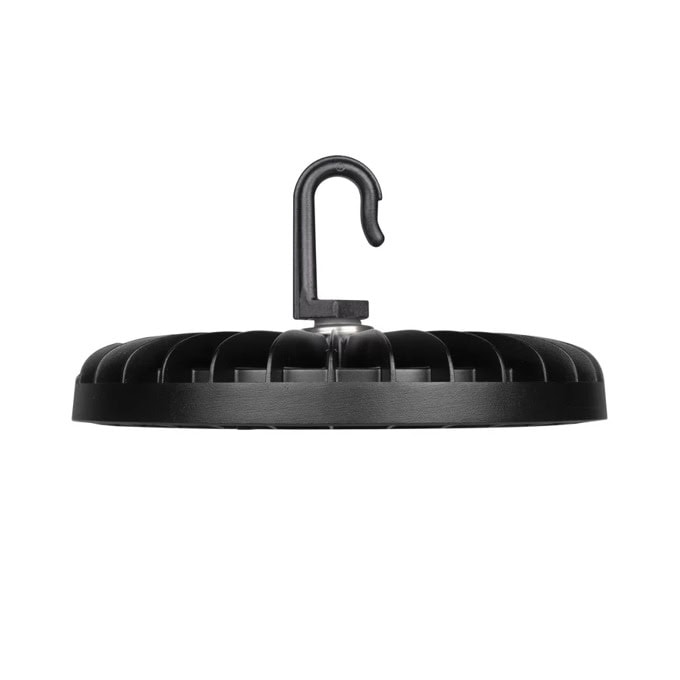

LED осветително тяло Ledvance HB COMP V 225W 840 110DEG IP65

Product benefits

• Modern exclusive design
• Energy savings of up to 60 % compared to conventional high bay luminaires
• Optimized weight and size due to compact design

Areas of application

• Replacement for high bay luminaires with mercury vapor or metal halide lamps
• Warehouses
• Logistics halls
• Industry
• High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)

Product features

• Operating temperature: -20…45 °C

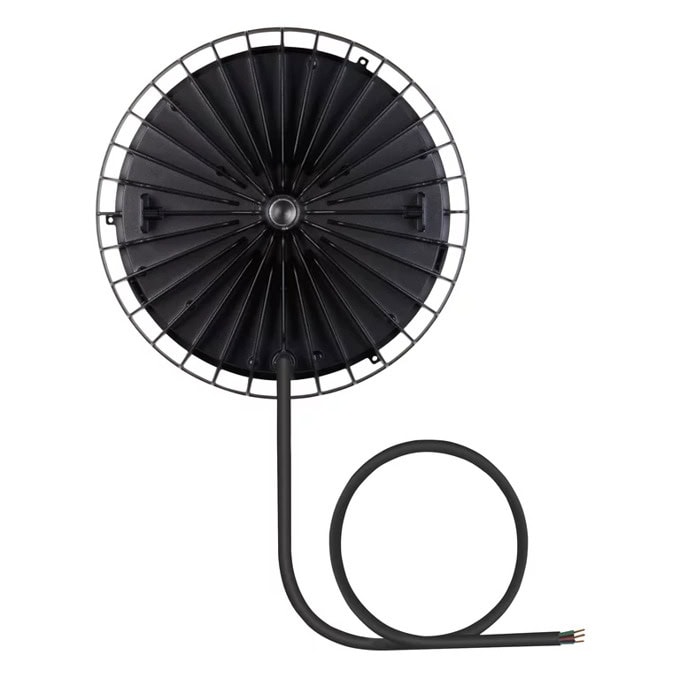

• Black aluminum housing, tempered glass cover
• Opal cover
• Type of protection: IP65
• Lifetime (L70): up to 50,000 h
• High luminous efficacy: up to 120 lm/W

Electrical data

Nominal wattage225.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current980 mA

Inrush current10.64 A

Inrush current time Th5016.52 µs

Max. number of luminaires per miniature circuit breaker B1613

Max. number of luminaires per miniature circuit breaker C108

Max. number of luminaires per miniature circuit breaker C1613

Power factor λ> 0.90

Total harmonic distortion

Photometrical data

Luminous flux27000 lm

Luminous efficacy120 lm/W

Color temperature4000 K

Light color (designation)Cool White

Color rendering index Ra> 80

Standard deviation of color matching≤5 sdcm

Photobiological safety group acc. to EN62778RG1

Beam angle110 °
