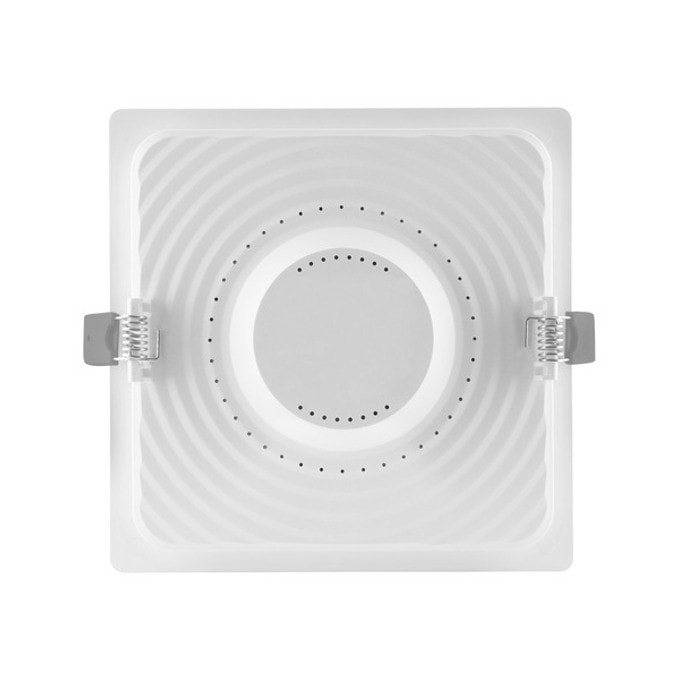

LED луна за вграждане Ledvance DL SLIM SQ 210 WT

Product benefits

• Very slim housing
• Low installation depth
• High luminous efficacy
• Energy savings up to 60 % (compared to luminaires that use CFL lamps)
• Very homogenous light
• Functional design
• Easy installation with fast connection
• Simple installation thanks to integrated driver

Areas of application

• Direct replacement for luminaires with compact fluorescent lamps
• General illumination
• Public areas
• Stairways
• Corridors
• Foyers
• Shops

Product features

• Small visible bezel
• Connector box with push wire terminal for tool-free connection
• Light guide made of non-yellowing PMMA for long lifetime

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• The luminaires are not suitable for covering with thermally insulated material.

Technical data

Electrical data

Nominal wattage18.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current108 mA

Inrush current17 A

Inrush current time Th5056 µs

Max. number of luminaires per miniature circuit breaker B1644

Max. number of luminaires per miniature circuit breaker C1035

Max. number of luminaires per miniature circuit breaker C1656

Power factor λ0.50
