Ledvance

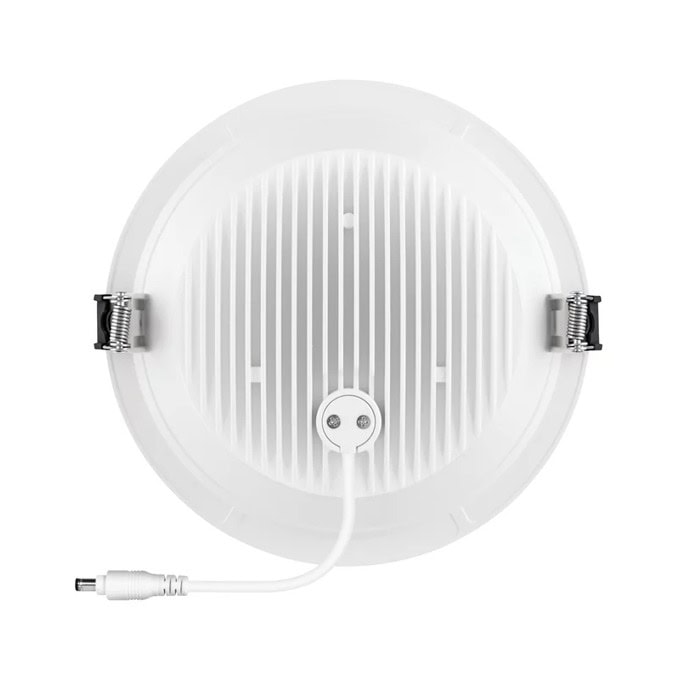

LED луна за вграждане Ledvance DL ALU DN 200 IP44/IP20 WT
Артикул №: 1000136335
Категория:
Електрически крушки
54,99 €
✓ Налично във външен склад
Product benefits
- High luminous efficacy
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
- Very homogenous light
- Functional design
- Easy installation with fast connection
- External driver for extended flexibility (compatible with selected DALI drivers)
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features
- Diameter of required ceiling cut-out: 150 mm or 200 mm (depending on version)
- Type of protection: IP44
Характеристики
| Nominal wattage25.00 W | Да |
| Nominal voltage220…240 V | Да |
| Mains frequency50…60 Hz | Да |
| Nominal current110 mA | Да |
| Inrush current7 A | Да |
| Power factor λ> | 0.90 |
| Total harmonic distortion | Да |
| Photometrical data | Да |
| Luminous flux2370 lm | Да |
| Luminous efficacy95 lm/W | Да |
| Color temperature4000 K | Да |
| Light color (designation)Cool White | Да |
| Color rendering index Ra> | 80 |
| Standard deviation of color matching≤6 sdcm | Да |
| Luminous intensity- | Да |
| Flickering metric (Pst LM)- | Да |
| Stroboscope effect metric (SVM)- | Да |
| Photobiological safety group acc. to EN62778RG0 | Да |
| Photobiological safety group acc. to EN62471RG0 | Да |
| Beam angle100 ° | Да |
| Dimensions & Weight | Да |
| Diameter215.00 mm | Да |
| Height61.00 mm | Да |
| Product weight600.00 g | Да |
| Materials & Colors | Да |
| Product colorWhite | Да |
| Housing colorWhite | Да |
| Body materialAluminum | Да |
| Cover materialPolymethylmethacrylate (PMMA) | Да |
| Glow Wire Test according to IEC | 60695-2-12650 °C |
| Application & Mounting | Да |
| Ambient temperature range-20…+45 °C | Да |
| Temperature range at storage-20…+80 °C | Да |
| Type of connectionScrew terminal, | 2-Pole (L,N) |
| Type of protectionIP44/IP20 | Да |
| Protection class IK (shock resistance)IK02 | Да |
| DimmableNo | Да |
| Mounting typeRecessed | Да |
| Mounting locationCeiling | Да |
| Application environmentIndoor | Да |
| Mounting diameter200 mm | Да |
| Mounting depth120 mm | Да |
| LED module replaceableNot replaceable | Да |
| With light sourceYes | Да |
| Lifespan | Да |
| Lifespan L70/B50 at | 25 °C50000 h 1) |
| Lifespan L80/B10 at | 25 °C45000 h 1) |
| Lifespan L90/B10 at | 25 °C30000 h |
| Number of switching cycles100000 | Да |
| Control gear | Да |
| Output current550 mA | Да |
| ECG - Output ripple current | Да |
| Certificates & Standards | Да |
| StandardsCE, CB, ENEC, TÜV SÜD | Да |
| Luminaire with limited surface temperature, "D sign"No | Да |
| Ball shot safeNo | Да |
| Additional product data | Да |
| Number of illuminantsNot relevant | Да |
