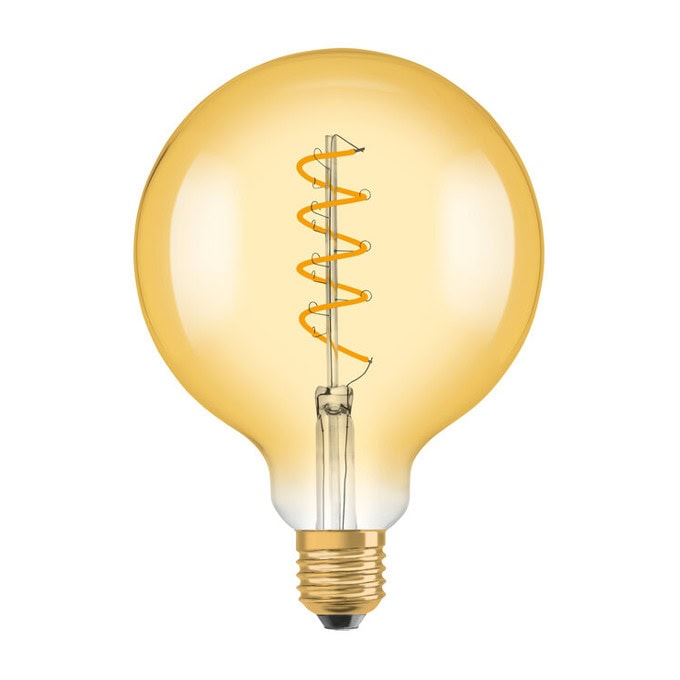

LED крушка Ledvance Vintage 1906 Globe 28 Filament 820 Gold

Product benefits

• Lower energy consumption than incandescent or halogen lamps
• Instant 100 % light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs
• Lamps with innovative LED "filament" technology

Areas of application

• Perfect for decorative installations
• Domestic applications
• General illumination
• Outdoor use in suitable outdoor luminaires only

Product features

• LED lamps for line voltage
• Lamp made of glass
• Lifetime up to 15,000 h
• Beam angle: up to 360°
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity

Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.

Technical data

Electrical data

Nominal wattage4 W

Construction wattage4.00 W

Nominal voltage220…240 V

Operating modeAC Mains

Claimed equiv. conventional lamp power28 W

Nominal current32 mA

Type of currentAC

Inrush current1.5 A

Operating frequency50/60 Hz

Mains frequency50/60 Hz

Max. lamp number on MCB B10 A400

Max. lamp number on MCB B16 A480

Power factor λ> 0.50

Photometrical data

Luminous flux300 lm

Nominal useful luminous flux 90°250 lm

Luminous efficacy75 lm/W

Lumen main.fact.at end of nom.life time0.70

Light color (designation)Warm Comfort Light

Color temperature2000 K

Color rendering index Ra80

Light color820

Standard deviation of color matching≤6 sdcm

Rated LLMF at 6,000 h0.80

Flickering metric (Pst LM)≤1

Stroboscope effect metric (SVM)≤0.4

Light technical data

Beam angle300 °

Warm-up time (60 %)‹ 0.50 s

Starting time

Dimensions & Weight

Overall length168.00 mm

Diameter124.00 mm

Maximum diameter124 mm

Product weight95.00 g

Temperatures & operating conditions

Ambient temperature range-20…+40 °C

Maximum temperature at tc test point65 °C

Lifespan

Lifespan L70/B50 at 25 °C15000 h

Number of switching cycles100000

Lumen maintenance at end of service lifetime0.70

Rated lamp survival factor at 6,000 h≥ 0.90

Additional product data

Base (standard designation)E27

Mercury content0.0 mg

Mercury-freeYes

Design / versionClear gold

Product remarkAll technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

DimmableNo

Certificates & Standards

Energy efficiency classG 1)

Energy consumption4.00 kWh/1000h

Type of protectionIP20

StandardsCE, EAC

Photobiological safety group acc. to EN62778RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

LOGISTICAL DATA

Temperature range at storage-20…+80 °C

Energy labelling regulation data acc EU 2019/2015
