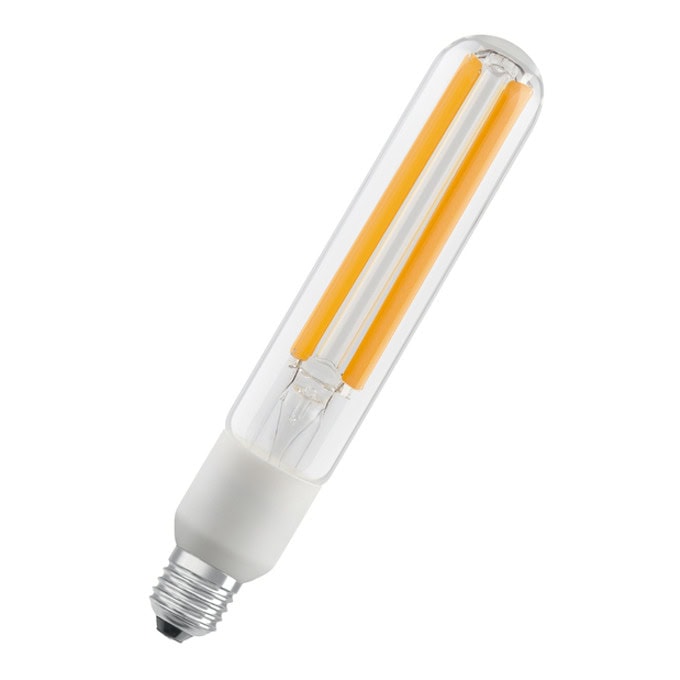

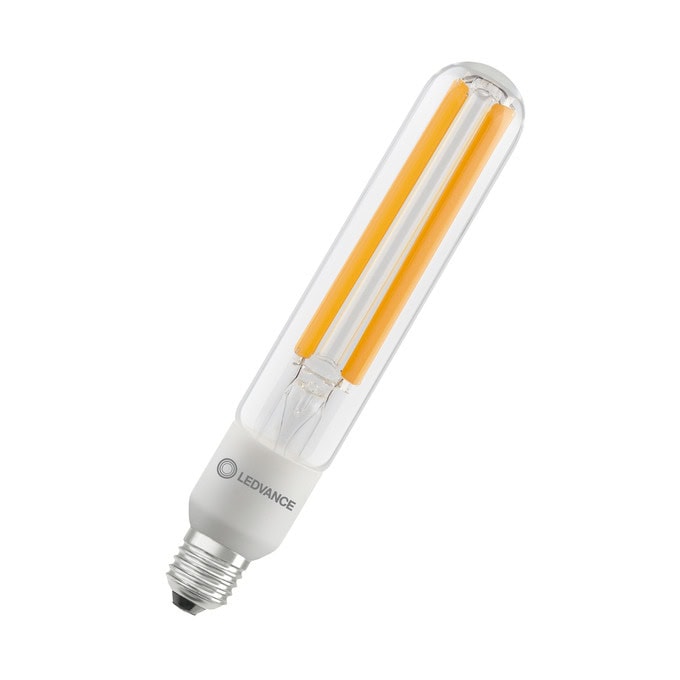

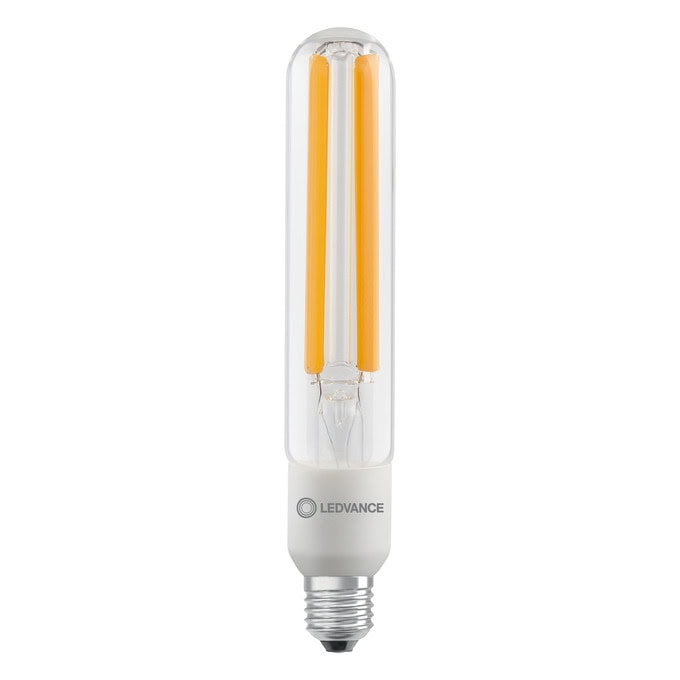

LED крушка Ledvance NAV 70 LED FILAMENT V 740

Product benefits

• Same design as traditional NAV lamps with clear, tubular full glass bulb
• Full use of reflector of existing luminaire thanks to 360 degree beam angle
• Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
• Instant 100 % light, no warm-up time
• Similar light distribution as traditional NAV lamps

Areas of application

• Streets
• Area lighting
• Pedestrian zones
• Parks
• Outdoor applications only in suitable luminaires

Product features

• Suitable for operation with conventional control gear (CCG) or 230 V AC mains
• Very high efficiency of up to 190 lm/W
• Power factor: 0.9
• Type of protection: IP65
• Surge protection: up to 2 kV (L-N)

Safety advice

• Not suitable for operation with ignitors.
• Operation on the capacitor can lead to a reduction of the power factor of the system.
• When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
• Use in tight luminaires and luminaires with tight reflectors not recommended.
• Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
• All electrical connections must be made by a qualified person.

Technical data

Electrical data

Nominal wattage35 W

Construction wattage35.00 W

Nominal voltage220…240 V

Operating modeCCG, AC Mains

Claimed equiv. conventional lamp power70 W

Nominal current155 mA

Type of currentAC

Inrush current11.1 A

Operating frequency50/60 Hz

Mains frequency50/60 Hz

Max. lamp number on MCB B10 A11

Max. lamp number on MCB B10 A - CCG without compensation16

Max. lamp number on MCB B10 A - CCG with compensation6

Max. lamp number on MCB B16 A14

Max. lamp number on MCB B16 A - CCG without compensation20

Max. lamp number on MCB B16 A - CCG with compensation8

Total harmonic distortion12 %

Power factor λ> 0.90

Surge capability (L-N)2 kV

Photometrical data

Luminous intensityNot relevant

Luminous flux6000 lm

Nominal useful luminous flux 90°6000 lm

Luminous efficacy171 lm/W

Lumen main.fact.at end of nom.life time0.70

Light color (designation)Cool White

Color temperature4000 K

Color rendering index Ra70

Light color740

Standard deviation of color matching≤6 sdcm

Rated LLMF at 6,000 h0.80

Flickering metric (Pst LM)1

Stroboscope effect metric (SVM)0,4

Light technical data

Beam angle360 °

Warm-up time (60 %)‹ 0.50 s

Starting time

Dimensions & Weight

Overall length210.00 mm

Diameter38.00 mm

Maximum diameter38 mm

Product weight120.00 g

Temperatures & operating conditions

Ambient temperature range-20…+50 °C 1)

Maximum temperature at tc test point90 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C25000 h

Number of switching cycles100000

Lumen maintenance at end of service lifetime0.70

Rated lamp survival factor at 6,000 h≥ 0.90

Additional product data

Base (standard designation)E27

Mercury content0.0 mg

Mercury-freeYes

Capabilities

DimmableNo

Certificates & Standards

Energy efficiency classC 1)

Energy consumption35.00 kWh/1000h

Type of protectionIP65

StandardsCE, EAC, UKCA

Photobiological safety group acc. to EN62778RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

LOGISTICAL DATA

Temperature range at storage-20…+80 °C

Energy labelling regulation data acc EU 2019/2015
