Кутия Thermaltake View 71 Tempered Glass ARGB Snow (CA-1I7-00F6WN-00)
View 71 Tempered Glass Snow Edition
Thermaltake View 71 Tempered Glass Snow Edition Full Tower Chassis

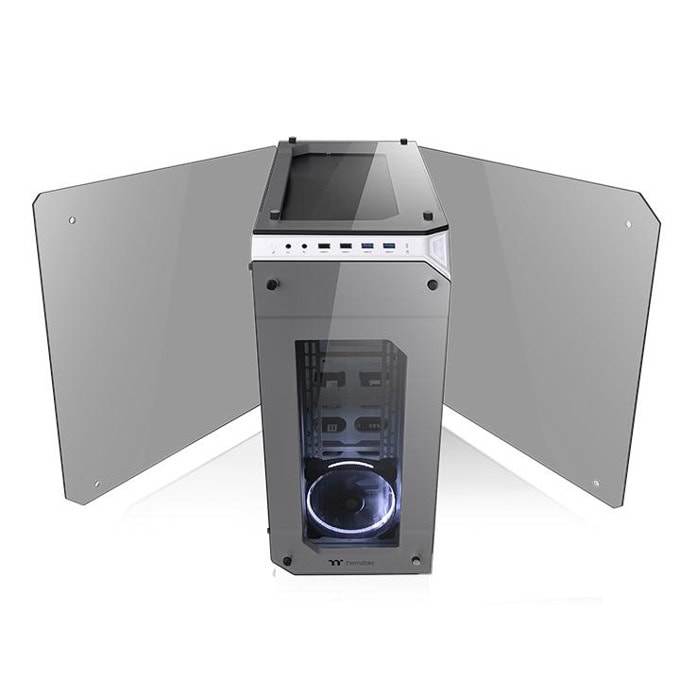

Designed to expand the legacy of the View Series lineup, the View 71 Tempered Glass Snow Edition Full Tower Chassis features unrivaled cooling support and expandability surrounded in tempered glass for a one of a kind view. Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. Preinstalled with two 140mm Riing white fans, Vertical GPU mount and 3-Way radiator support for today’s PC hardware demands, the only limitation is your imagination.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Make the Move to Modular Design

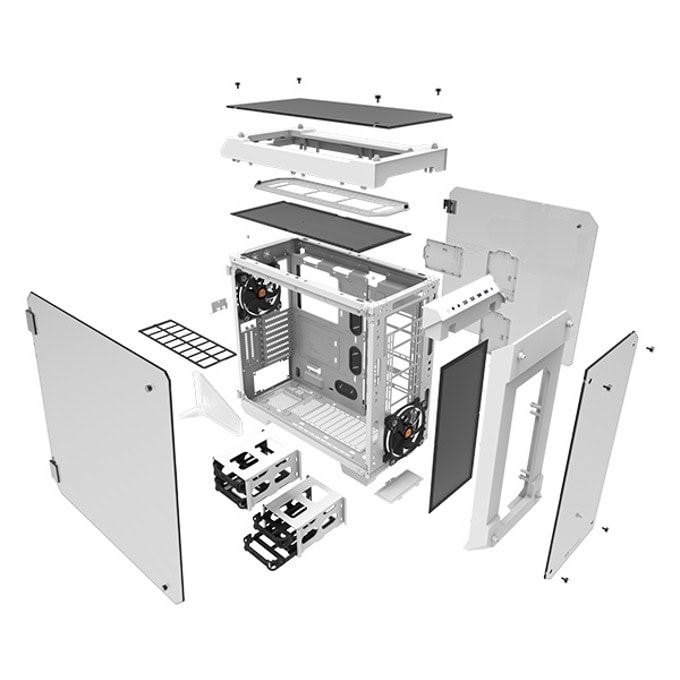

The View 71 TG Snow Edition enables users to freely build their system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.
Характеристики
| Серия | View |
| CASE TYPE | Full Tower |
| Dimension (H x W x D) | 577 x 274 x 592 mm · (22.7 x 10.8 x 23.3 inch) |
| Нето тегло | 18.9 kg / 41.66 lb |
| PANEL | 5mm Tempered Glass x 4 (Left & Right & Front & Top) |
| Цвят | Exterior & Interior : White |
| Материал | SPCC |
| COOLING SYSTEM | Rear (exhaust) : · 140 x 140 x 25 mm Riing LED White fan · (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) · Front (intake) : · 140 x 140 x 25 mm Riing LED White fan · (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) |
| Drive Bays -Accessible -Hidden | · 2.5” x 4 or 3.5”x4 (HDD Rack) · 2.5”x 6 or 3.5” x 3 |
| Слотове за разширение | 8+2 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) · |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: · 3 x 120mm , 2 x 140mm · Top: · 3 x 120mm , 3 x 140mm · Rear: · 1 x 120mm, 1 x 140mm · Bottom: · 2 x 120mm |
| RADIATOR SUPPORT | Front: · 1 x 360mm , 1 x 420mm · Top: · 1 x 360mm , 1 x 420mm · Rear: · 1 x 120mm, 1 x 140mm · Right: · 1 x 360mm, 1 x 420mm · Bottom: · 1 x 240mm |
| CLEARANCE | CPU cooler height limitation: · 190mm · VGA length limitation: · 310mm(With HDD Rack) · 410mm(Without HDD Rack) · PSU length limitation: · 220mm (Without Bottom Fan) |
