Кутия MSI MAG PANO 100R PZ
MSI MAG PANO 100R PZ

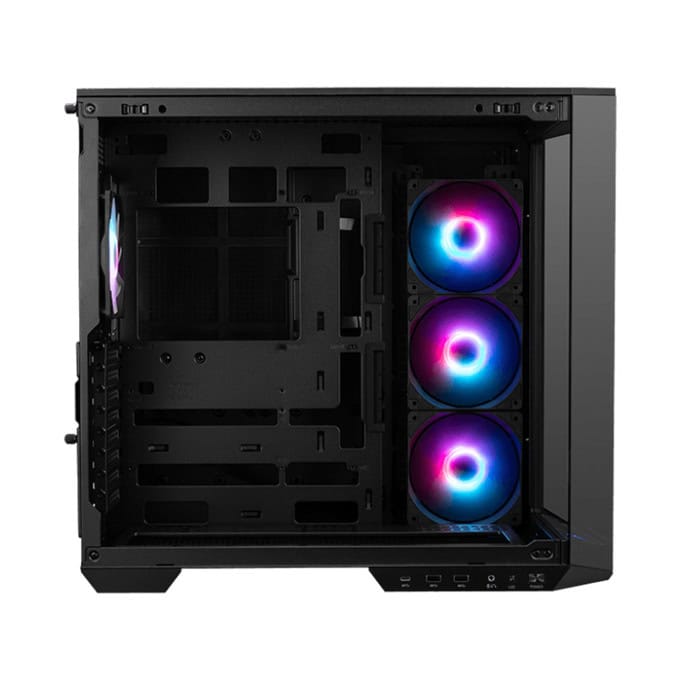

Fans and radiator supported overview
Dual Chamber
Large cable management space to reduce cable routing complexity, ensuring sufficient space for cable organization.
1 to 4 ARGB-fan control boardThanks to the integrated control board, users can easily and intuitively manage lighting effects and adjust fan speeds conveniently.
The uni-front-panel cable is easy for users to connect to MSI motherboards.
Push-latch side panel and PCIe bracket, streamline installation process, enhancing the experience.
Multi-function storage bracket
The multi-function storage bracket with swinging door serves as a convenient tool for SSD installation and cover the messy cables, maintaining a clean and aesthetic appearance in the main chamber.
1. USB 20Gbps Type-C2. 2 x USB 5Gbps Type-A3. Mic In/ Audio Out
4. LED Switch Button 5. Power Button
Характеристики
| Mid Tower | Да |
| Motherboard Form Factor Support | Да |
| Regular | ATX / Micro-ATX / Mini-ITX |
| Back-connect | ATX / Micro-ATX |
| I/O Ports | Да |
| X USB 20Gbps Type-C | 1 |
| X USB 5Gbps Type-A | 2 |
| X Audio-Out / Mic-in | 1 |
| X LED Switch Button | 1 |
| X Power Button | 1 |
| Drive Mount Support | Да |
| X 2.5” | 3 |
| X 2.5”/3.5” combo | 2 |
| Слотове за разширение | Да |
| 8 | Да |
| Maximum GPU Length | Да |
| Mm / 15.75 inches | 400 |
| Maximum CPU Cooler Height | Да |
| Mm / 6.54 inches | 166 |
| Power Supply Support | Да |
| ATX | Да |
| Maximum PSU Length | Да |
| Mm / 7.87 inches | 200 |
| Fan Size Support | Да |
| Top | 3 x 120 mm / 3 x 140 mm |
| Front | NA |
| Rear | 1 x 120 mm |
| Side | 3 x 120 mm / 2 x 140 mm |
| Bottom | 3 x 120 mm / 2 x 140 mm / 2 x 160 mm |
| Pre-installed Fan Size | Да |
| Side | 3 x 120 mm |
| Rear | 1 x 120 mm |
| Pre-installed Fan Type | Да |
| Side | 3 x ARGB Reverse-blade |
| Rear | 1 x ARGB |
| Radiator Size Support | Да |
| Top | 120 / 240 / 360 mm |
| Front | NA |
| Rear | 120 mm |
| Side | 120 / 240 / 360 mm |
| Bottom | 120 / 240 / 360 mm |
| Dimensions (DxWxH) | Да |
| X 290 x 482 mm / 20.42 x 11.42 x 18.98 inches | 518.7 |
