Fractal Design
Кутия Fractal Design Ridge PCIe 4.0
Артикул №: 1000136997
Категория:
Компютърни компоненти
155,99 €
✓ Налично във външен склад
Характеристики
| Dedicated 2.5" drive mounts | 4x included, 4x positions total |
| Слотове за разширение | 3-slot |
| Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED |
| Total fan mounts | 2x 120/140 mm and 3x 80 mm |

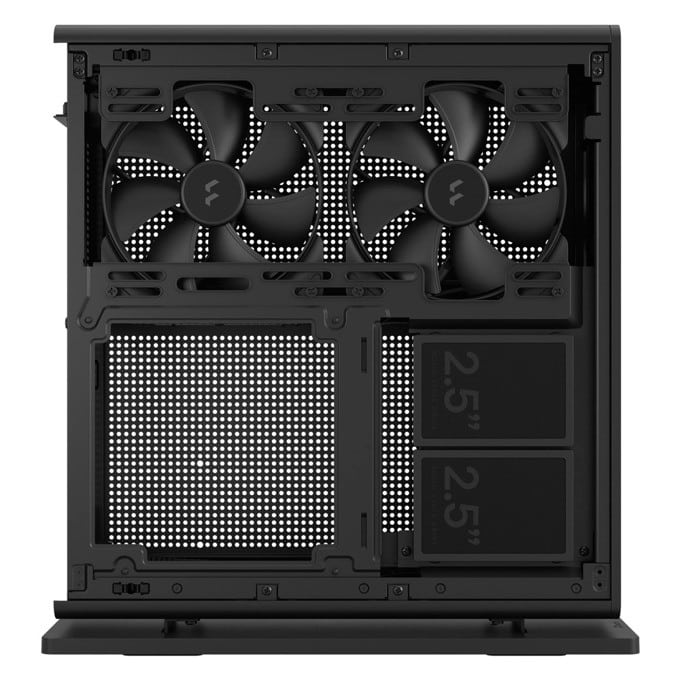

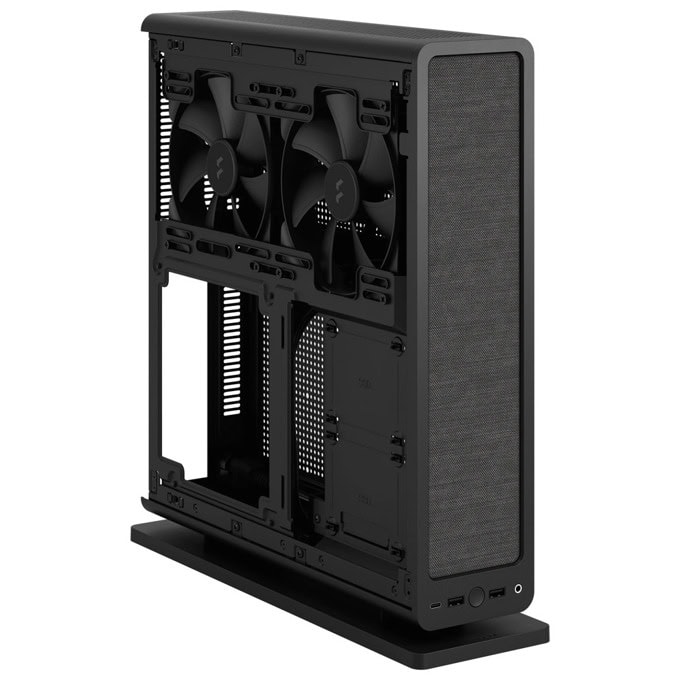

| Side fan | 2x 120/140 mm (2x PWM Aspect fan 140 mm included) |
| Top fan | 3x 80 mm (not included) |
| Cable routing space | 13,8 mm (behind PSU) |
| Tool-less slide with thumbscrew lock | Side panels |
| Captive thumbscrews | Side panels |
| Left side panel | Steel |
| Right side panel | Steel |
| Съвместимост | Да |
| Motherboard compatibility | Mini ITX |
| Power supply type | SFX, SFX-L |
| Side radiator | 120 mm when ≤175mm long GPUs are installed (280 mm without GPU) |
| PSU max length | SFX-L |
| GPU max length | 325 mm with SSD installed. 335 mm without SSD installed. |
| GPU max height | 125 mm with top fan(s) installed, 137 mm without top fans |
| GPU max thickness | 57 mm with 2x 140 mm fans installed, 82 mm without side fans |
| CPU cooler max height | 70 mm |
| SFF-Ready Enthusiast GeForce Cards | Да |
| Размери | Да |
| Case dimensions | Да |

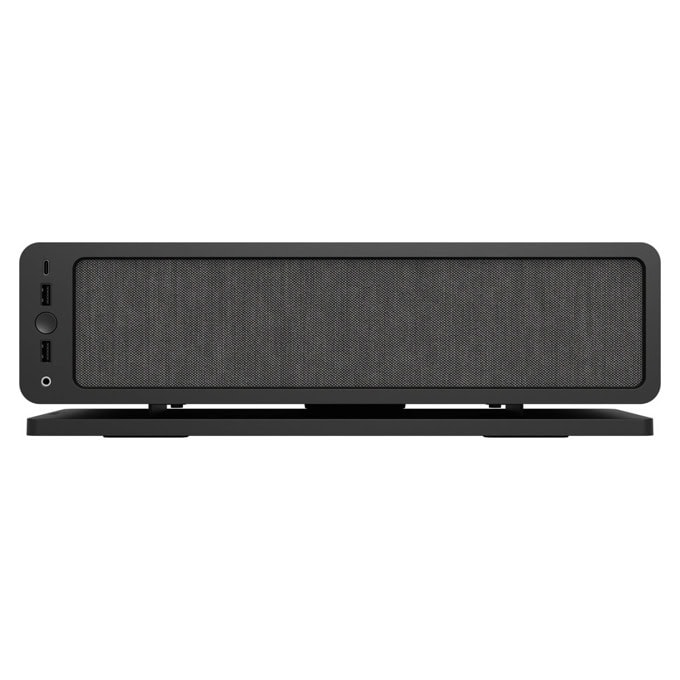

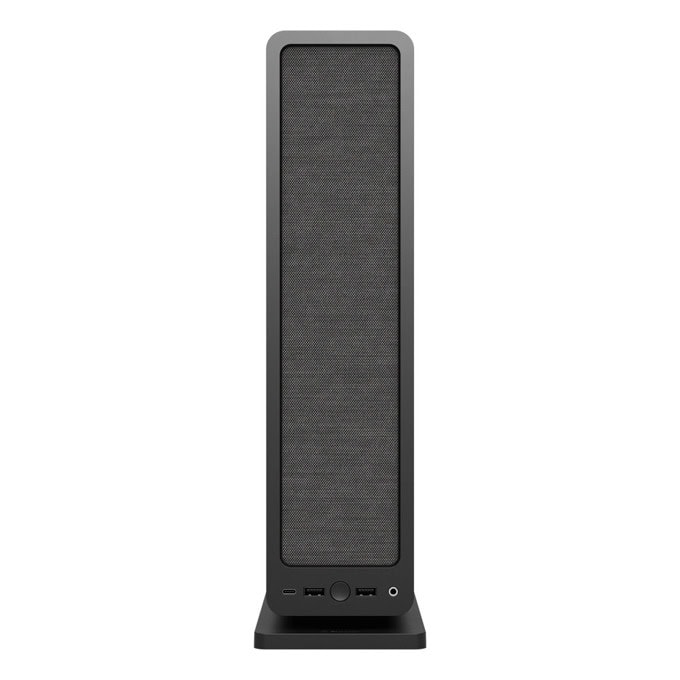

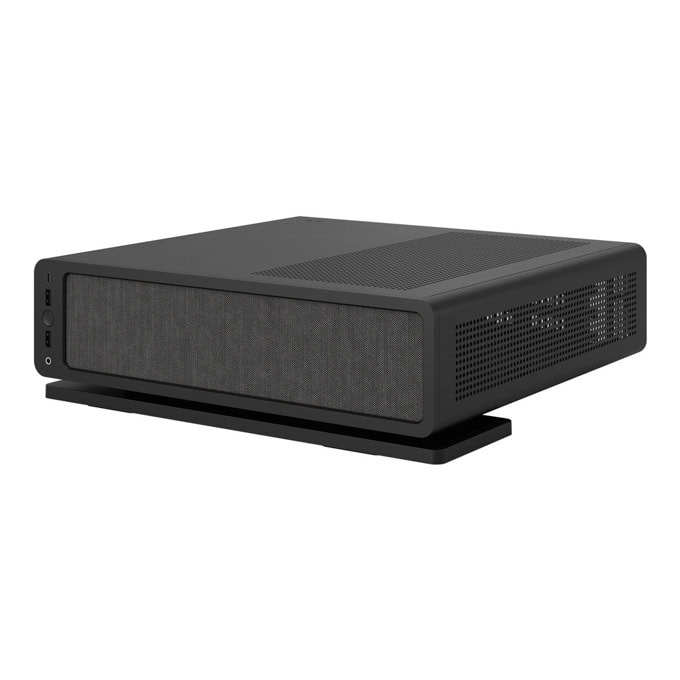

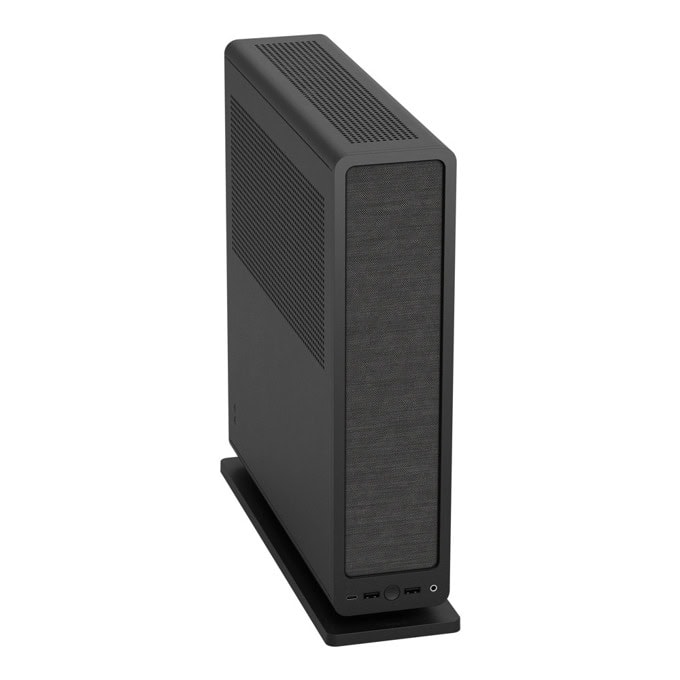

| Vertical | 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm |
| Case dimensions w/o feet/protrusions/screws | 355 x 95 x 375 mm |
| Нето тегло | 4.3 kg |
| Package dimensions (LxWxH) | 426 x 167 x 431 mm |
| Бруто тегло | 5.5 kg |
| Volume | 12.6 liter |
