Кутия DeepCool CG530U 4F
DeepCool CG530U 4F
Seamless panoramic view
The CG530U 4F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.
Ready to flow

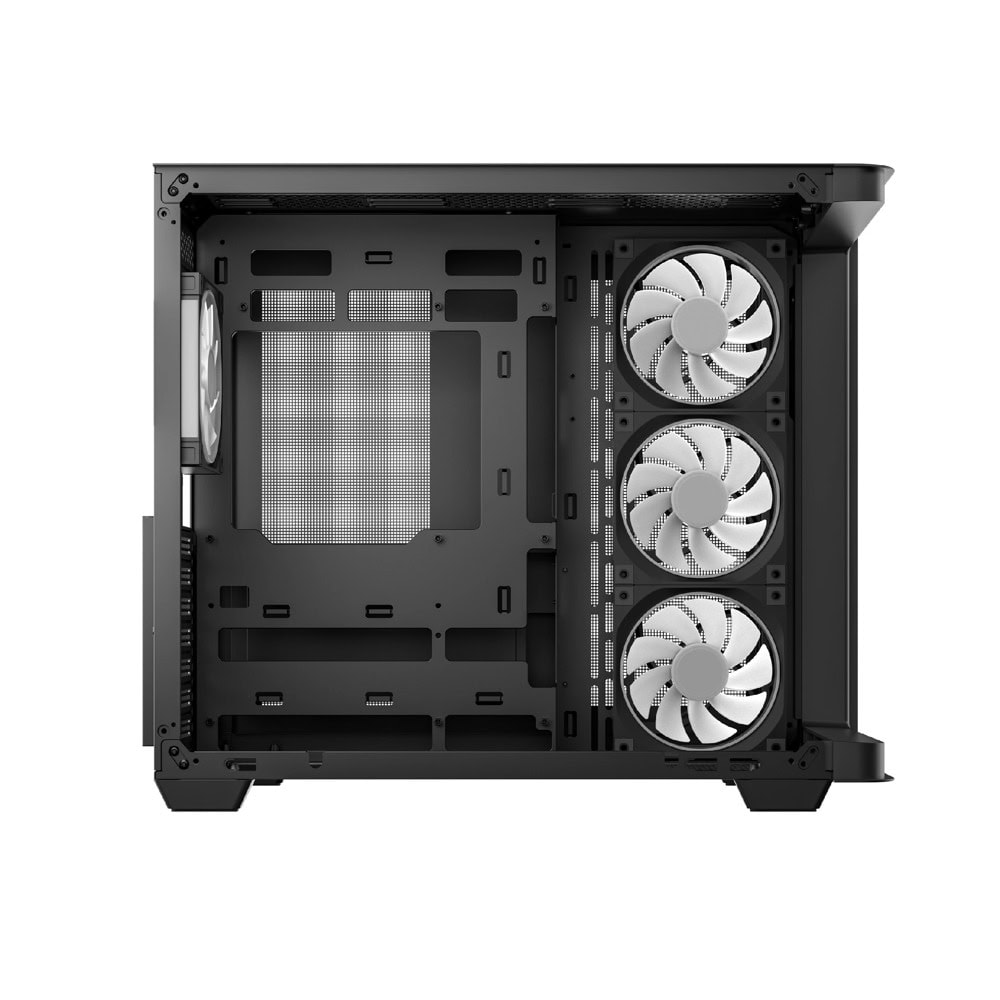

Four ARGB fans come pre-installed with three reverse-blade units on the side and one standard fan at the rear. The balanced intake and exhaust setup provides strong airflow and reliable cooling from the start.
Maximum cooling capabilitiesNever fear the heat with CG530U 4F's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.

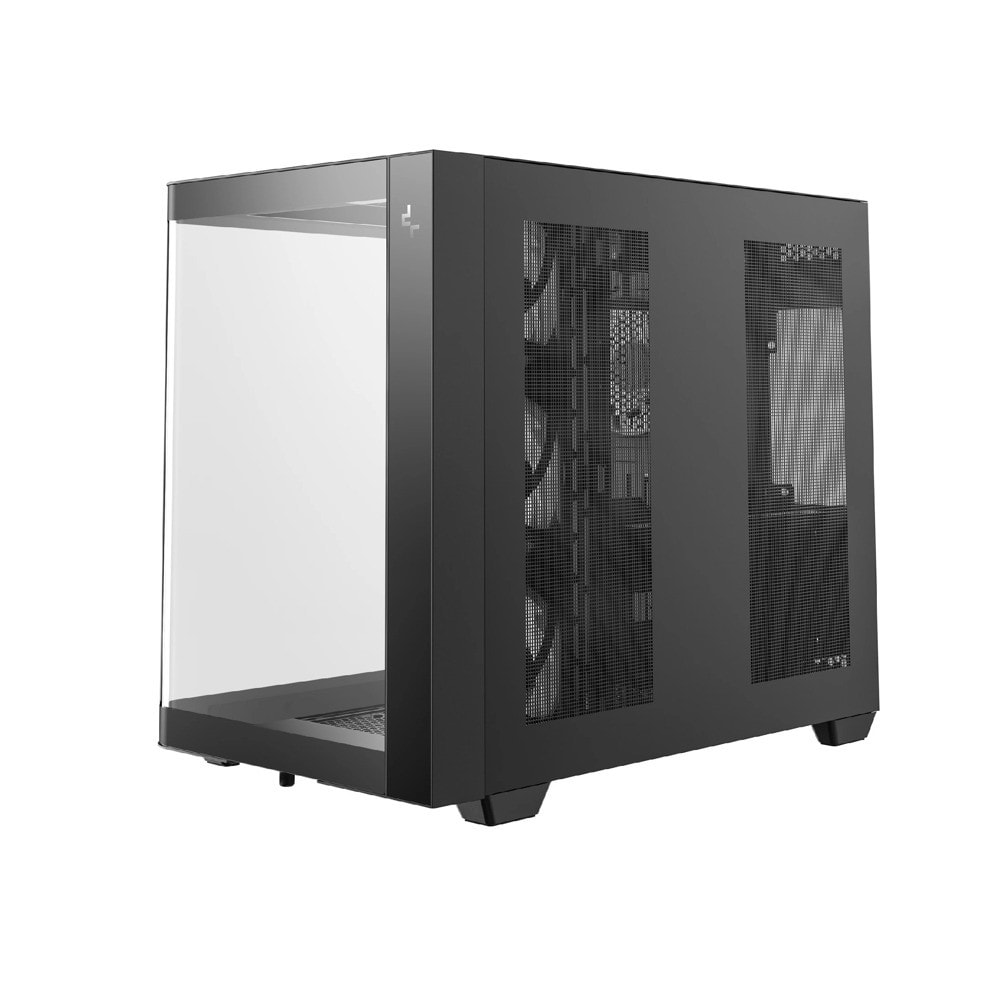

Efficient ventilationA dual-chamber layout isolates the power supply and storage drives from the main airflow. Large mesh panels maximize ventilation, with side-mounted reverse intake fans drawing in fresh air and the rear fan exhausting heat, creating a direct horizontal airflow path across the case.
Broad hardware support
Built to handle demanding hardware, the CG530U 4F supports CPU coolers up to 160mm tall, GPUs up to 410mm long, and PSUs up to 210mm, offering broad compatibility for high-performance builds.
Характеристики
| Net Weight7.3kg | Да |
| MaterialsABS+SPCC+Tempered Glass | Да |
| Front I/O PortsUSB3.0 x2,Gen2 Type-C x1,Audio/Mic x1,LED | Да |
| 3.5" Drive Bays2 | Да |
| 2.5" Drive Bays2+1 | Да |
| Expansion Slots7 Slots | Да |
| Pre-Installed FansSide | 3×120mm Rear: 1×120mm |
| Fan SupportFront | NA Top: 3×120mm/2x140mm Side: 3×120mm/2x140mm Rear: 1×120mm Bottom: 3×120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm |
| Radiator SupportFront | NA Top: 120/140/240/280/360mm Side: 120/140/240/280mm Bottom: 120/240/360mm |
| CPU Cooler Height Limit160mm | Да |
| GPU Size Limit410mm | Да |
| Power Supply TypeATX PS2 (maximum length | 210mm)/SFX/SFX-L |
