Кутия Cougar Gaming MX600 Mini RGB
Cougar Gaming MX600 Mini RGB
Hardcore FandomThe cooling capability of 2x 160mm front panel fans defies the MX600 Mini RGB’s deceptively diminutive size. With a total capacity of 10 fans, even the most performance-intensive rig stays cool at peak operation.
Clear VisualCompatibility with reverse connector motherboards eradicates cable clutter completely. *Supported models: ASUS BTF and MSI Project Zero.
Cold Case
Future iterations of components are expected to generate exponentially more heat, making cooling a critical feature: focused, directed ventilation inoculates the MX600 Mini RGB against escalating temperatures.

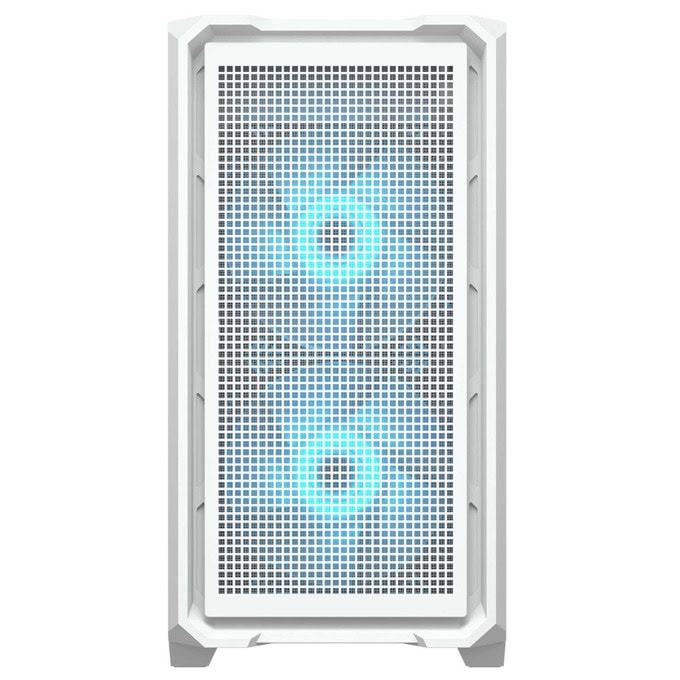

Sloped Airflow RampDirects smoother airflow.11 % Increase in AirflowSquare perforations on the front panel increase airflow by 11% compared to circular designs.
Характеристики
| Case Form Factor | Mini Tower |
| Motherboard Type | Mini ITX / Micro ATX |
| Dimensions (WxHxD) | 232 x 445 x 456 (mm) · 9.1 x 17.5 x 18 (in) |
| I/O Panel | Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack & RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 1+2 (converted from 3.5" drive bays) |
| Слотове за разширение | 5 |
| Cooling Fan Support | 160mm x 2 |
| Top | 120mm x 3 / 140mm x 2 |
| M/B Side | 120mm x 2 |
| PSU Shroud | 120mm x 2 |
| Rear | 120mm x 1 |
| Pre-installed Fans | 160mm ARGB PWM fan x 2 |
| Rear | 120mm ARGB PWM fan x 1 |
| Скорост | 160mm ARGB PWM fan: 400-1200 ± 10% RPM · 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Конектор | 5V 3 Pin (ARGB) · 4 Pin PWM (Fan) |
| Maximun Number of Fans | 10 |
| Water Cooling Support | *360mm / 280mm / 240mm / 140mm / 120mm |
| M/B Side | *240mm / 120mm · *Please choose either top or M/B side to install a radiator. |
| Rear | 120mm |
| PWM and RGB hub Sync with M/B | Да |
| Max. Graphics Card Length | 380 (mm) / 15 (in) (Only fans at the M/B Side) · 255 (mm) / 10 (in) (Radiator with fans at the M/B Side) |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Max. PSU Length | 180 (mm) / 7.1 (in) |
