Кутия Chieftec UNI Workstation Chassis

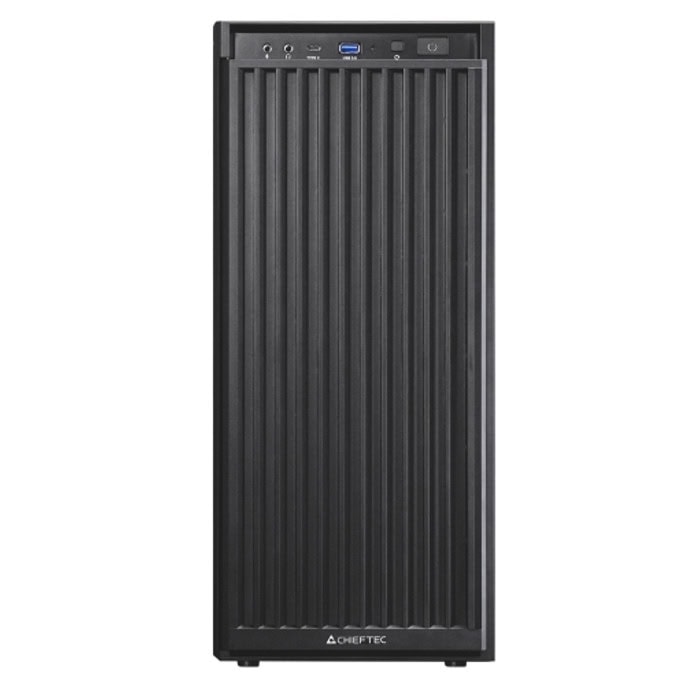

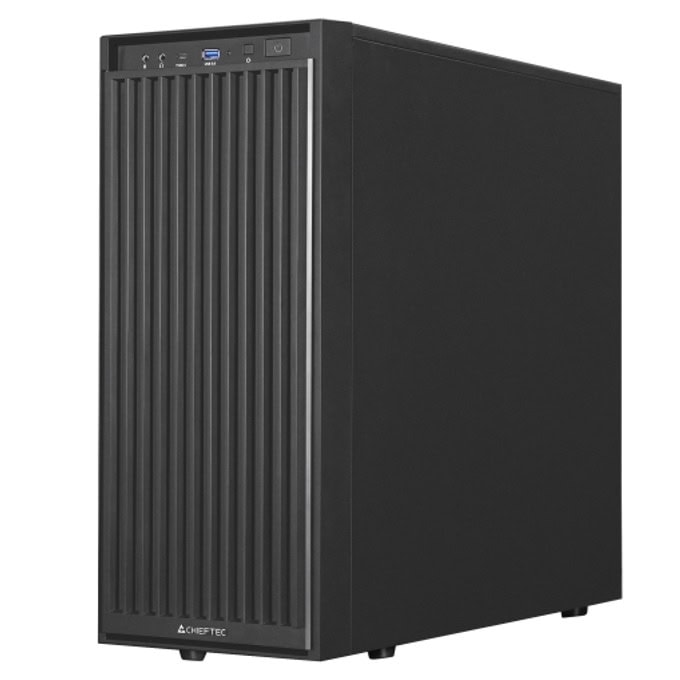

The CHIEFTEC BW-01B-OP is a high-performance ATX workstation chassis that blends a timelessly elegant front panel with a modernly designed door and essential front I/O, including a USB Type-C port. It comes pre-installed with a 120mm PWM HDB fan for quiet and long-lasting operation. It offers an easy-to-remove storage cage system and meets the demands of digital content creators as well as their long-term data storage needs. The chassis features cable management holes with rubber grommets for a clean build and efficient airflow. Built to support modern workstation systems, the BW-01B-OP delivers both performance and style in a refined, professional chassis.
Cooling CompatibilityFront: 2x 120mm / 2x 140mm fan Rear: 1x 120mm PWM HDB fan (pre-installed) Top: 3x 120mm / 3x 140mm fan / 240mm radiator / 360mm radiator (if the 5.25” tray on the top is left empty)
Характеристики
| Chieftec UNI Workstation Chassis | |
| Modern ATX workstation with a pre-installed 120mm PWM HDB fan | |
| Supports radiators up to 360mm | |
| Two tool-less 5.25" drive bays | |

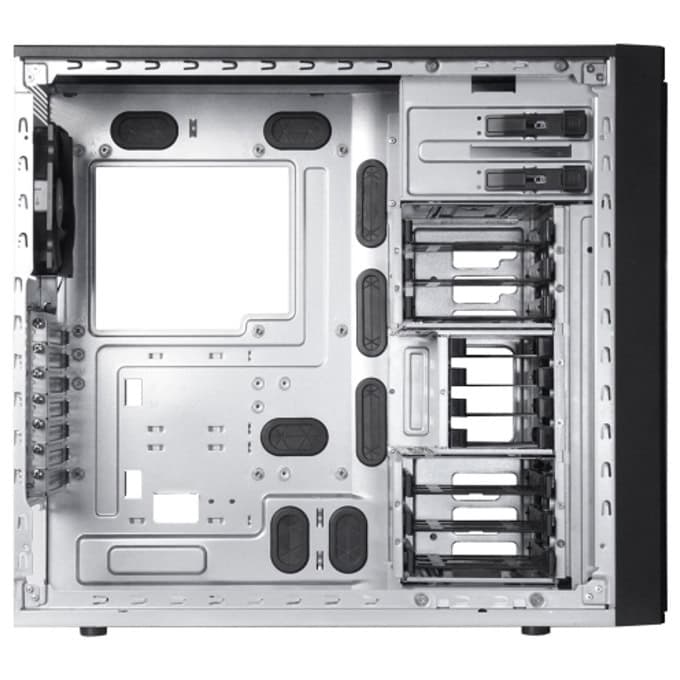

| Features 3.5" and 2.5" tool-less trays for up to 10 SSD/HDD drives | |
| Easy-to-remove storage cage system | |
| ColorBlack | |
| Material0.6mm SGCC | |
| Motherboard supportMini ITX, mATX, ATX | |
| Dimension (DxWxH)510mm x 200mm x 465mm | |
| Weight (without/with package)8.23 kg / 9.51 kg | |
| Drive bay external2 x 5.25” | |
| Drive bay internal6 x 3.5” and 4 x 2.5” | |
| Power supplyATX PSU (optional, up to 160 mm length) | |

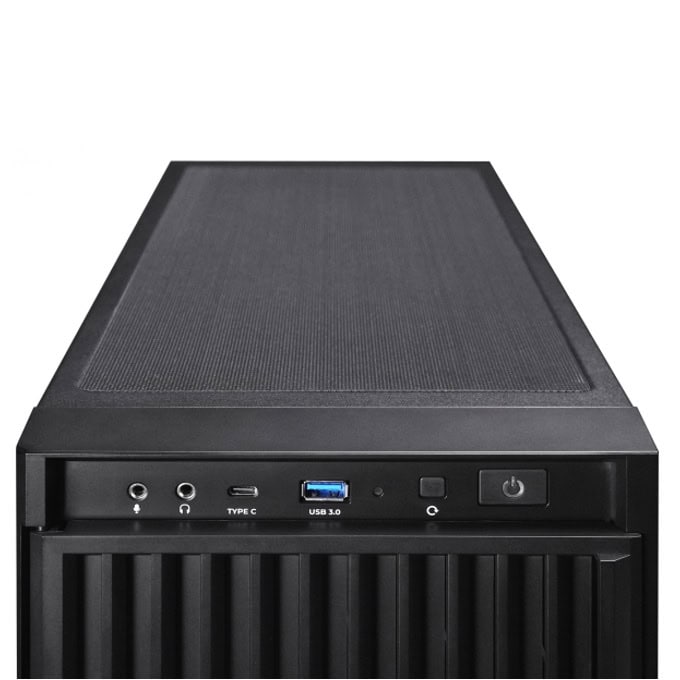

| Front I/O1x USB Type C, 1 x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-In | |
| Scope of deliveryScrew set, removable dust filter bottom, magnetic dust filter on top | |

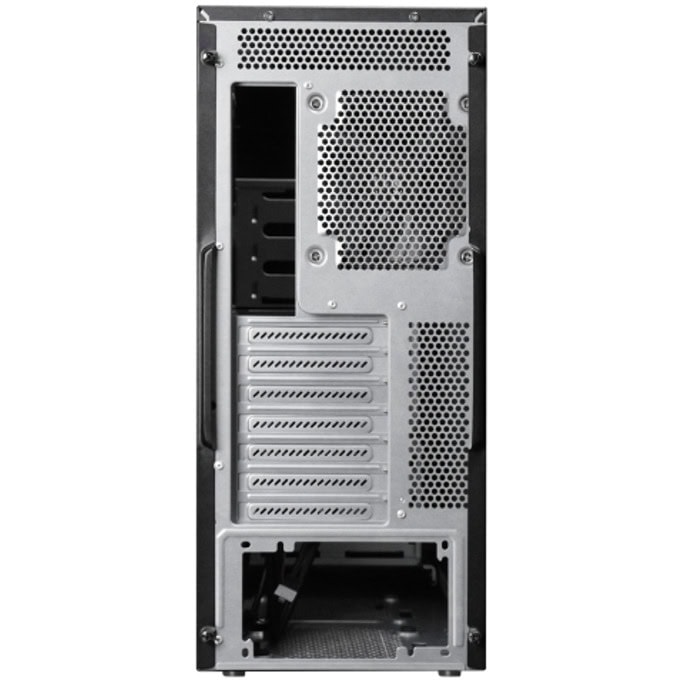

| Expansion slots7 | |
| CPU cooler height (max.)157mm | |
| VGA card length (max.)310mm (or 410mm, if 2.5” SSD cage is not installed) |
