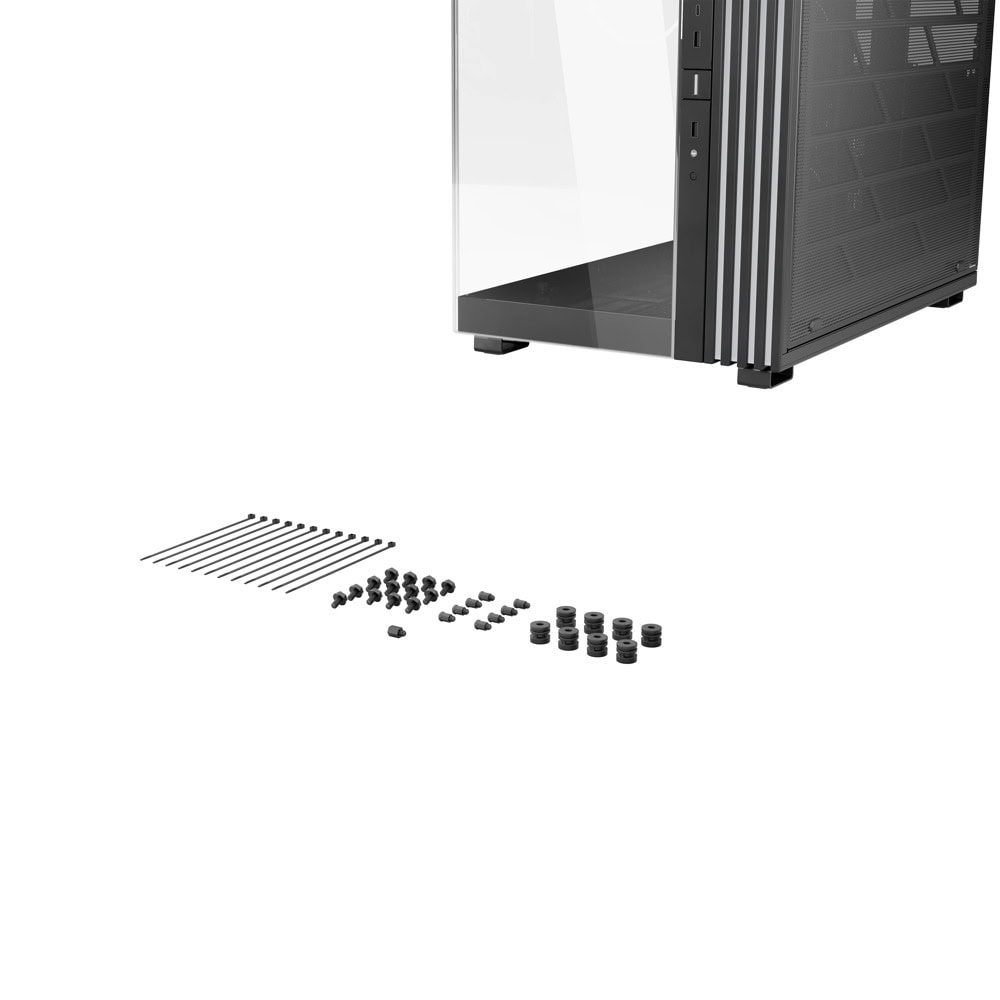

Кутия be quiet! LIGHT BASE 900 FX

be quiet! LIGHT BASE 900 FX
BGW71

Color: Black
Motherboard compatibility: E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX

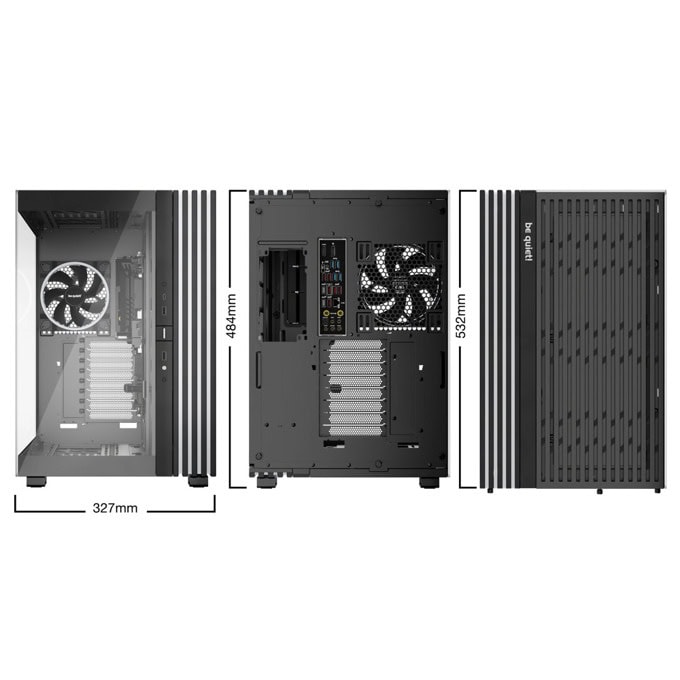

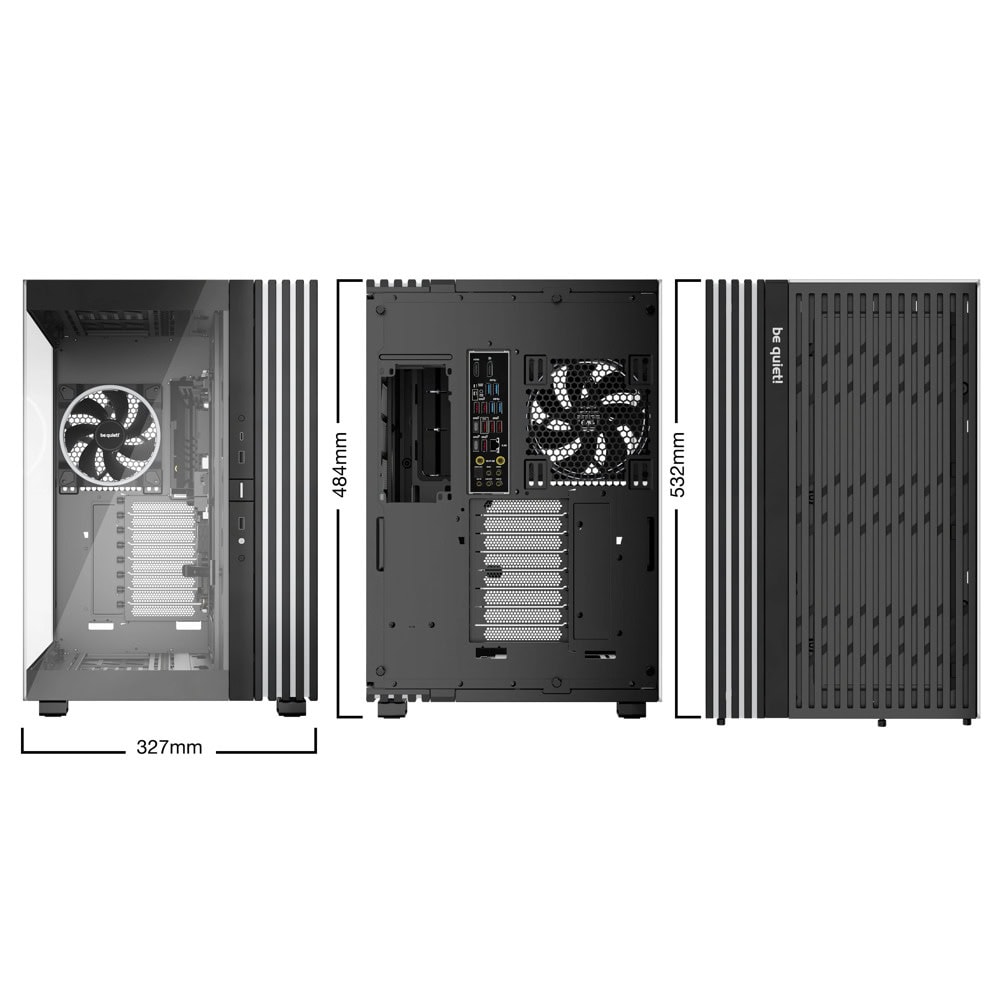

Case size excl. stands (L x W x H), (mm): 532 x 327 x 465
Case size incl. stands (L x W x H), (mm): 532 x 327 x 484
Volume (l): 68
PSU form factor: ATX PS/2
Net weight (kg): 16.8
Expansion slots: 8

Pre-installed fans
Fan at top: -
Fan at front: -

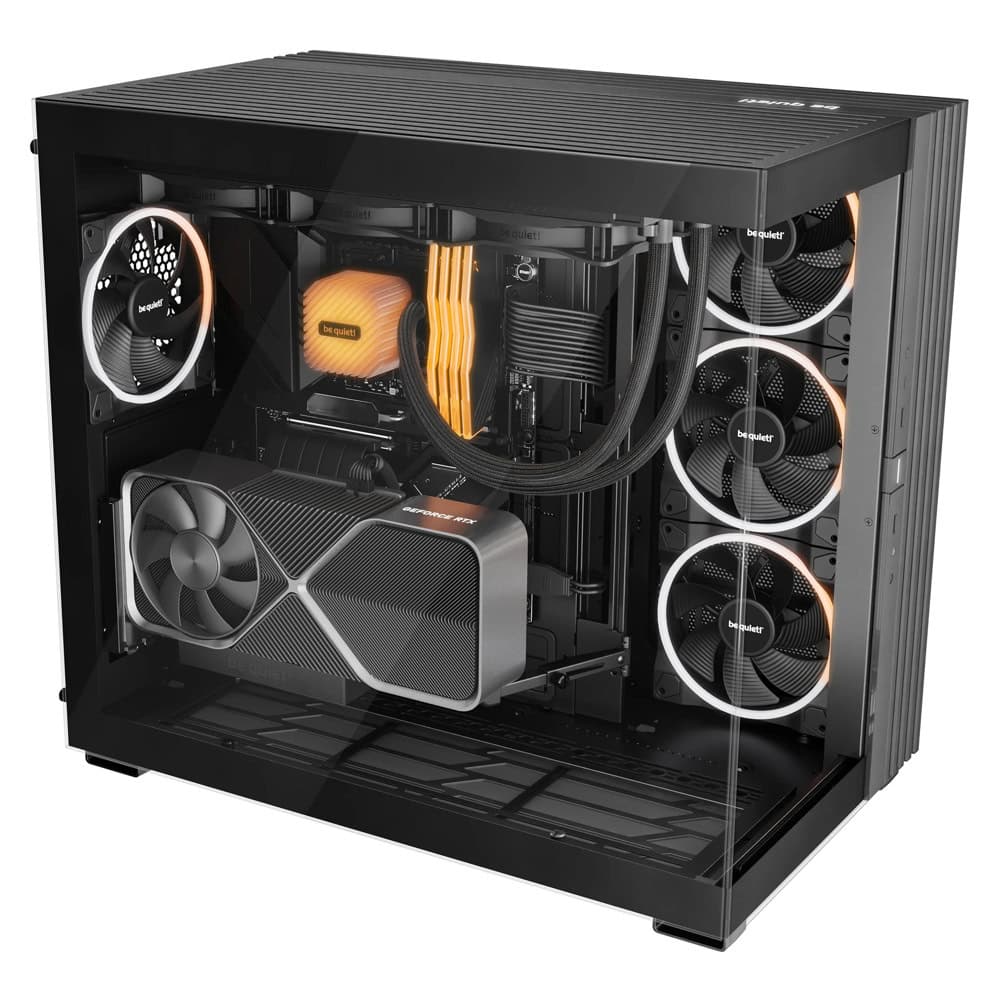

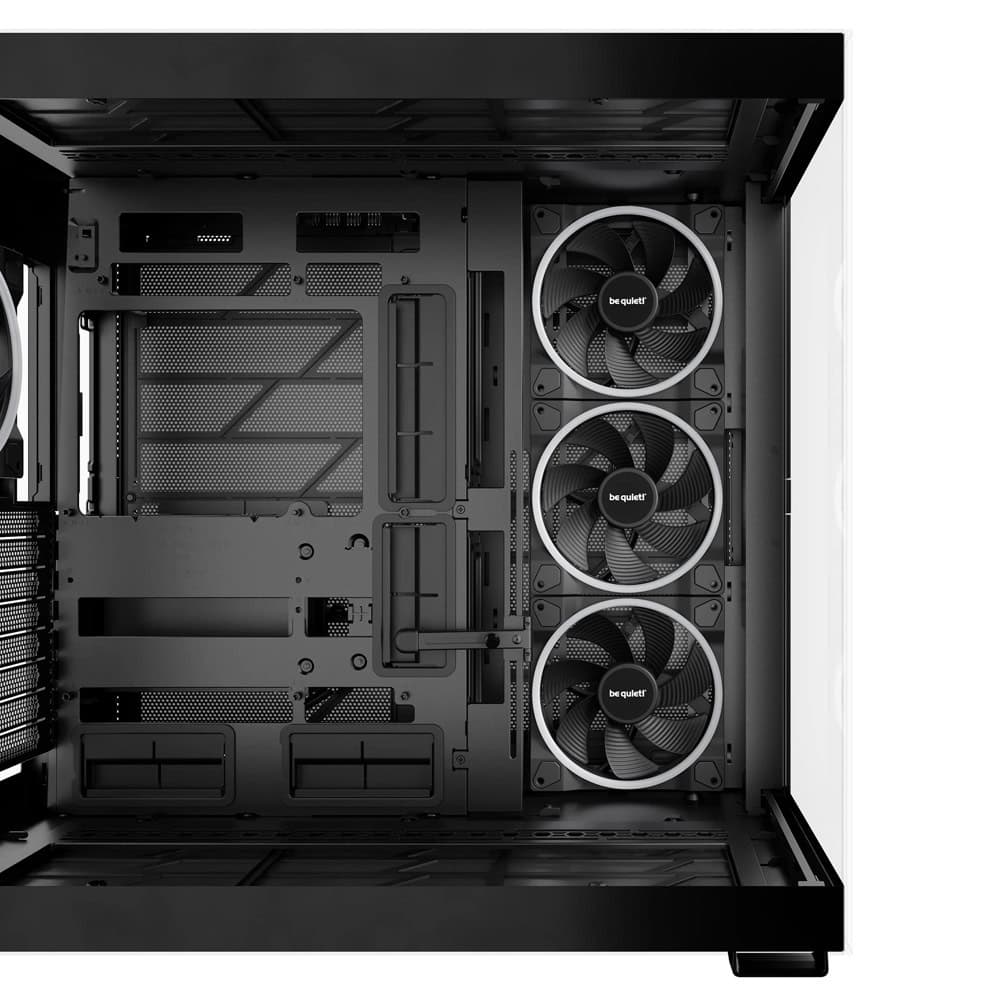

Fan at side: 3x Light Wings Reversed 140mm PWM
Fan at rear: 1x Light Wings 140mm PWM
Fan at bottom: -

Dimensions (L x W x H) (mm): 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm): 1500 / 1300
Airflow at 100% PWM / 12V (CFM / m³/h): 56.0 / 95.1 | 51.37 / 87.28
Air pressure at 100% PWM / 12V (mm H₂O): 1.49 / 1.1
Noise level at 100% PWM / 12V (dB(A)): 23.3 / 25.5
Voltage range (V DC): 5-13.2 / 5-12
Input power (W): 3.8 / 0.72
Input current (A): 0.32 / 0.06
Connector: 4-pin PWM
Lifespan (h / 25°C): 60,000
Fan controller: 2x 12 ports

Maximum fan installation
Maximum fans: 10
Top (mm): 3x 140 / 3x 120
Front (mm): -
Side (mm): 3x 140 / 3x 120
Rear (mm): 1x 140 / 1x 120

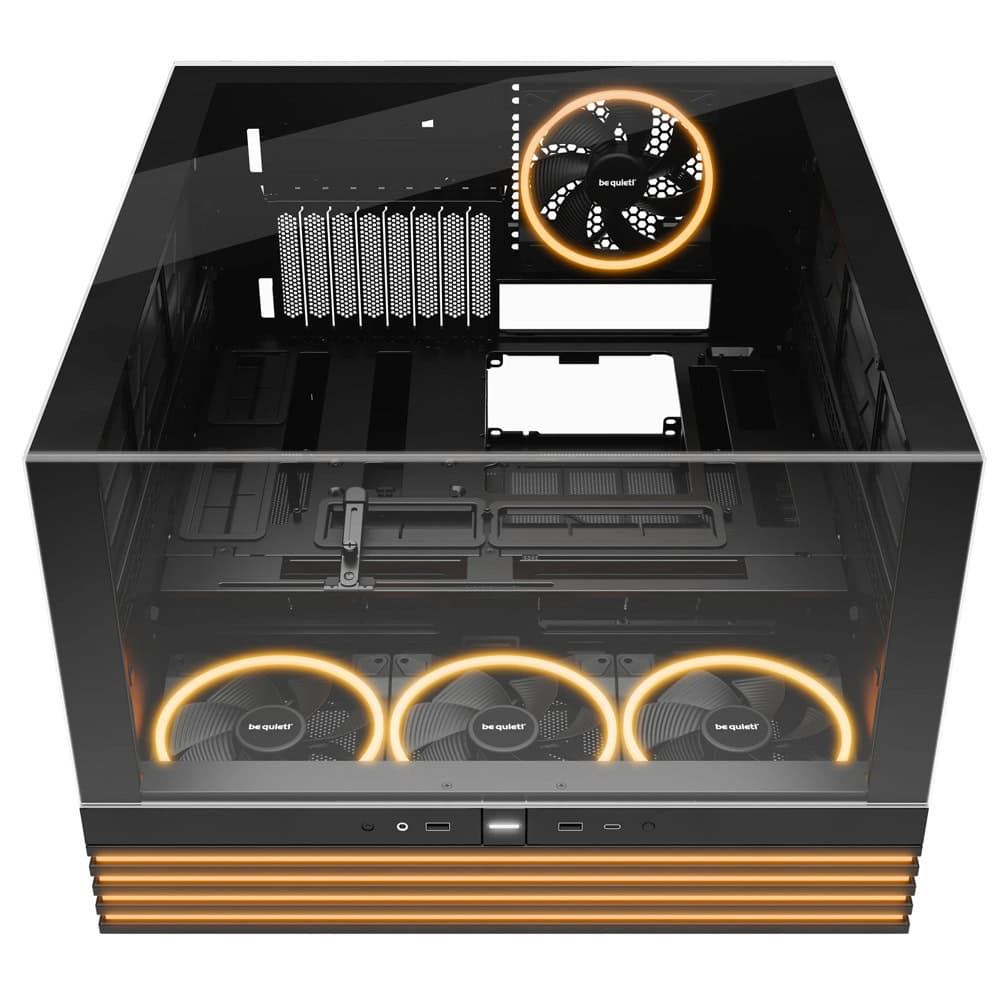

Bottom (mm): 3x 140 / 3x 120
PSU shroud: -

Optional radiator installation
Top (mm): 120 / 140 / 240 / 280 / 360 / 420
Front (mm): -
Side (mm): 120 / 140 / 240 / 280 / 360
Rear (mm): 120 / 140
Bottom (mm): 120 / 140 / 240 / 280 / 360 / 420

PSU compatibility
Maximum dimensions excluding bottom fan (mm): 225
Maximum dimensions including bottom fan (mm): 225

Graphics card
HDD cage (in height of graphics card) installed (mm): 495
HDD cage (in height of graphics card) removed (mm): 495
Maximum PCIe slots with vertical graphics card (pcs.): 4

Drive bay capacity
5.25 bays (pcs.): -
3.5 slots (scope of delivery): 1
3.5 slots (max.): 2
2.5 slots (scope of delivery): 4
2.5 slots (max.): 6

Cooling
Max. construction height of CPU cooler unit (mm): 190
Airflow channel: -

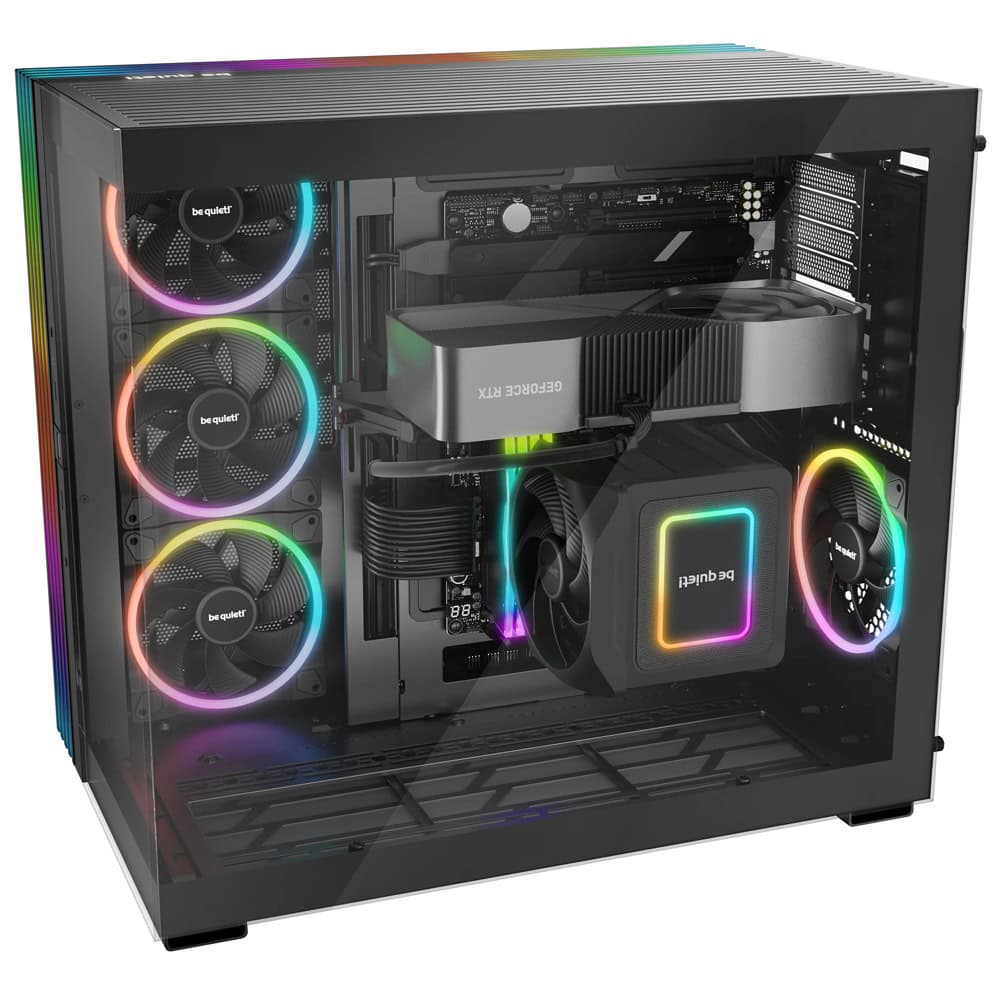

Lighting
LED illumination: ✓
LEDs (pcs.): 172
LED type: ARGB - 5V
LEDs synchronizable with controller/motherboard: ✓

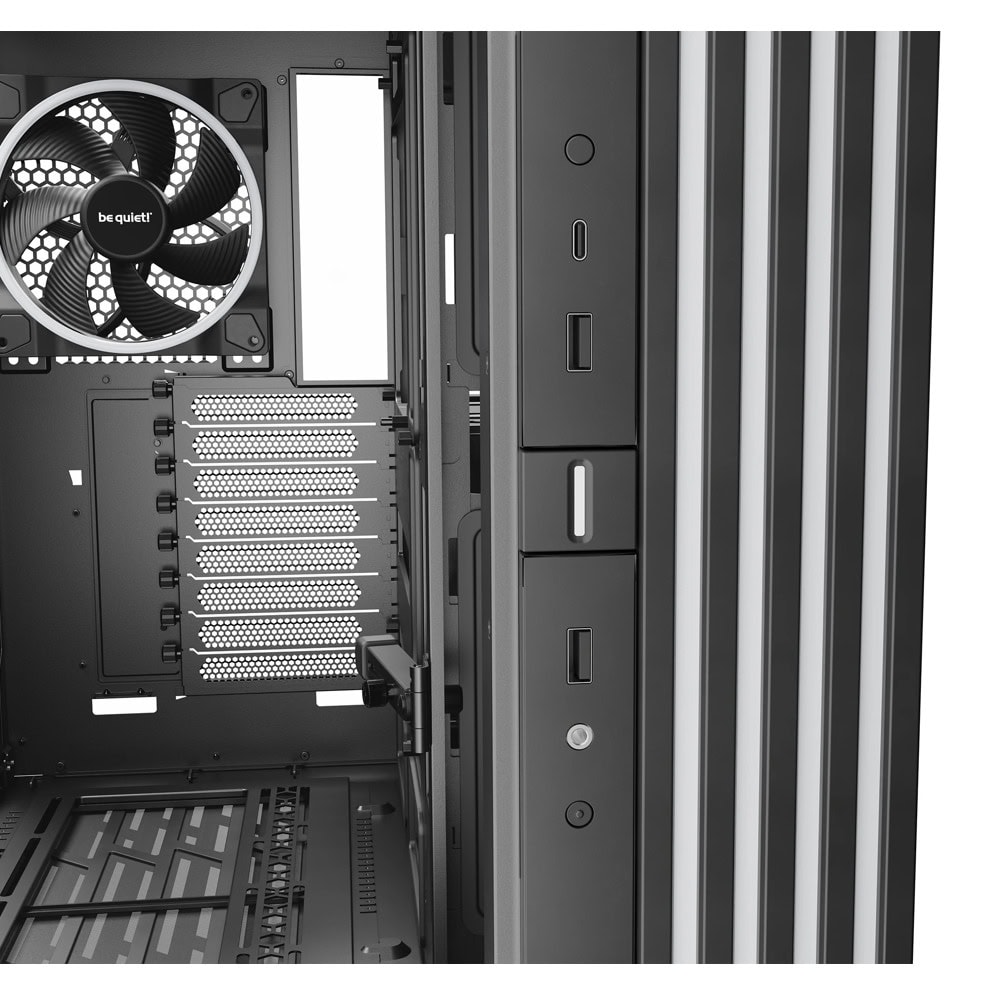

I/O Panel
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Type A: 2
USB 2.0: -
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option (W): -

Insulation and damping
Top panel insulation mats: -
Front panel insulation mats: -
Side panel insulation mats: -
Anti-vibration decoupled HDD: ✓
Anti-vibration decoupled fan: ✓
Anti-vibration decoupled PSU: ✓
Anti-vibration decoupled motherboard-tray: -

Removable dust filters
Top: 1
Front: -
Side: 1
Bottom: 1
