Кутия be quiet! Light Base 500

be quiet! Light Base 500

ELEVATED ELEGANCECool design, cooler GPUThe angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.

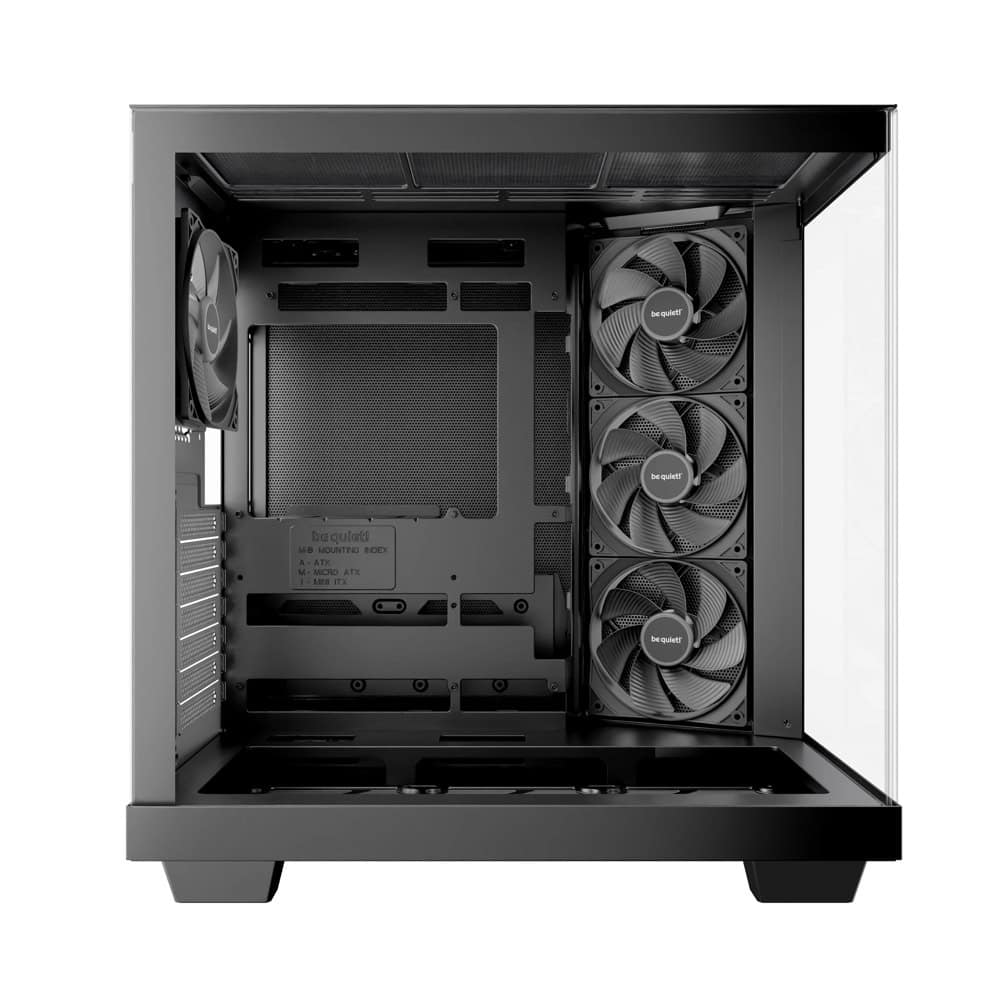

4 PREINSTALLED PURE WINGS 3Wait, how many fans?!Light Base 500 features 4 preinstalled Pure Wings 3 fans. The rear exhaust fan is a Pure Wings 3 120mm PWM, the intake fans on the side are Pure Wings 3 120mm PWM fans with reversed fan blades. All fans are optimized for maximum airflow, while reducing noise-generating turbulences with their specially shaped fan blades at the same time. The reversed fan blades make sure that their pretty side is visible at all times.

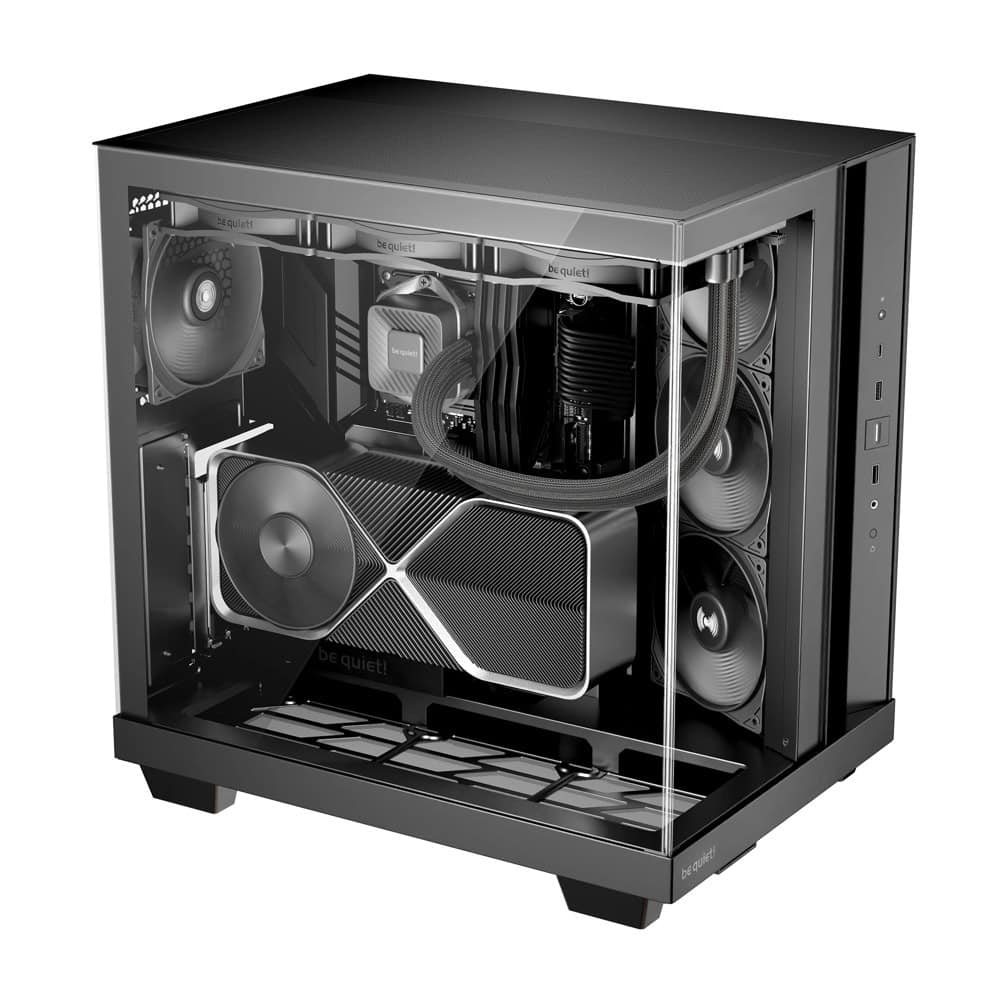

SPACIOUS DESIGNSize matters after allLight Base 500 might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 2 HDDs and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.

BUSINESS IN THE FRONT...... PARTY IN THE BACK!The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!

NO ARGBJoin the dark sideDo you prefer a stealthy look? If so: we’ve got you covered with the Light Base 500, a perfect blend of the classic be quiet! style with no LED lighting and modern form. Enjoy your next gaming session without flashing lights in your peripheral view.

Technical data

General data

ModelLIGHT BASE 500 | Black

Color optionBlack

Motherboard compatibilityATX / M-ATX / Mini-ITX support BTF MB

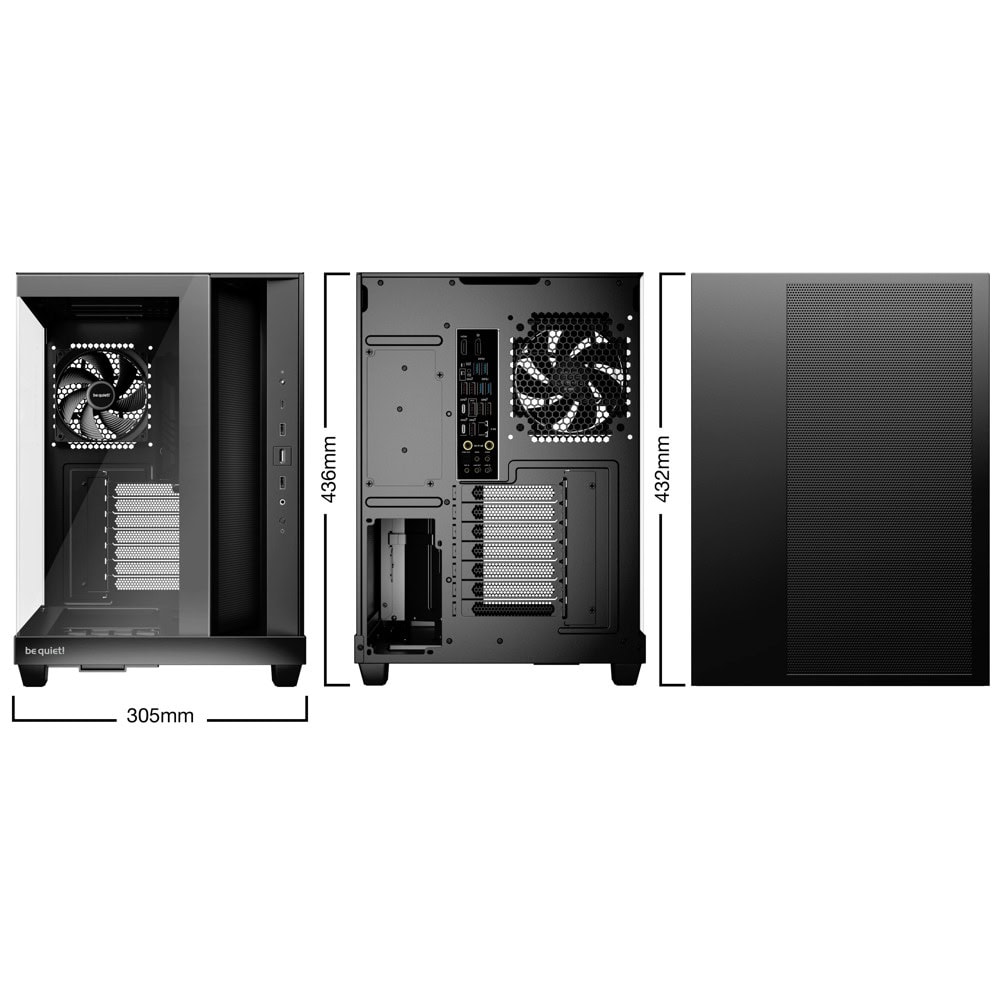

Case size excl. stands (L x W x H), (mm)432 x 305 x 410

Case size incl. stands (L x W x H), (mm)432 x 305 x 436

Volume (l)49,6L

PSU form factorATX PS/2

Net weight (kg)10,91

Expansion slots7

Pre-installed fans

Fan at top-

Fan at front-

Fan at side3x Pure Wings 3 Reverse 120mm PWM Black

Fan at rear1x Pure Wings 3 120mm PWM Black

Fan at bottom-

Dimensions (L x W x H), (mm)120 x 25 x 120

Fan speed at 100% PWM / 12V (rpm)1600 | 1500

Airflow at 100% PWM / 12V (CFM / m3/h)51.5 / 87.5

Air Pressure at 100% PWM / 12V (mm H2O)1.34

Noise level at 100% PWM / 12V (dB(A))25.5

Voltage range (V DC)5 - 13.2

Input power (W)3.8

Input current (A)0.32

Connector4-pin PWM

Lifespan (h / 25°C)60,000

Fan controller2x 12 Ports

Maximum fan installation

Maximum fans10

Top (mm)2x 140 / 3x 120

Front (mm)-

Side (mm)3x120

Rear (mm)1x 120 / 1x 140

Bottom (mm)3x 120

PSU shroud-

Optional radiator installation

Top (mm)120 / 240 / 280 / 360

Front (mm)-

Side (mm)120 / 240

Rear (mm)120

Bottom (mm)-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)

Maximum dimensions incl. bottom fan (mm)

Graphics card

HDD cage (in height of graphics card) installed (mm)400

HDD cage (in height of graphics card) removed (mm)400

Maximum PCIe slots with vertical graphics card (pcs.)4
