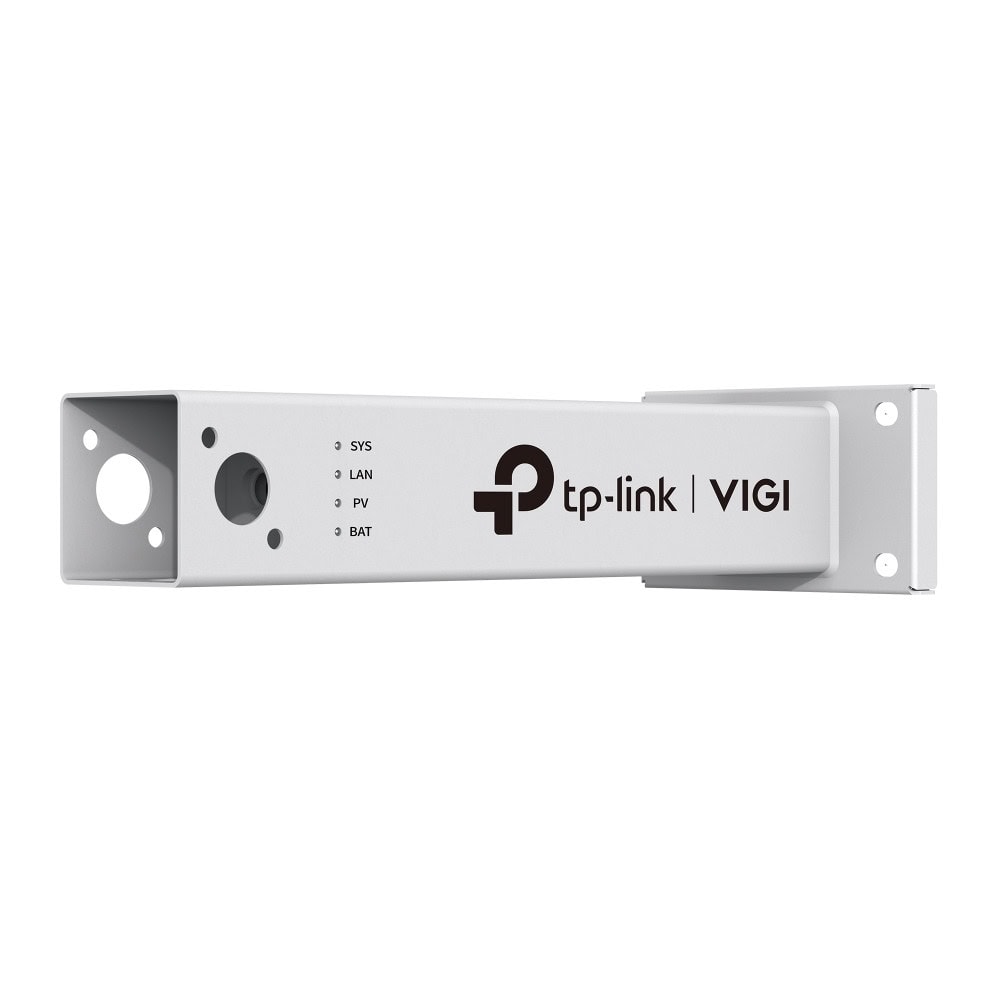

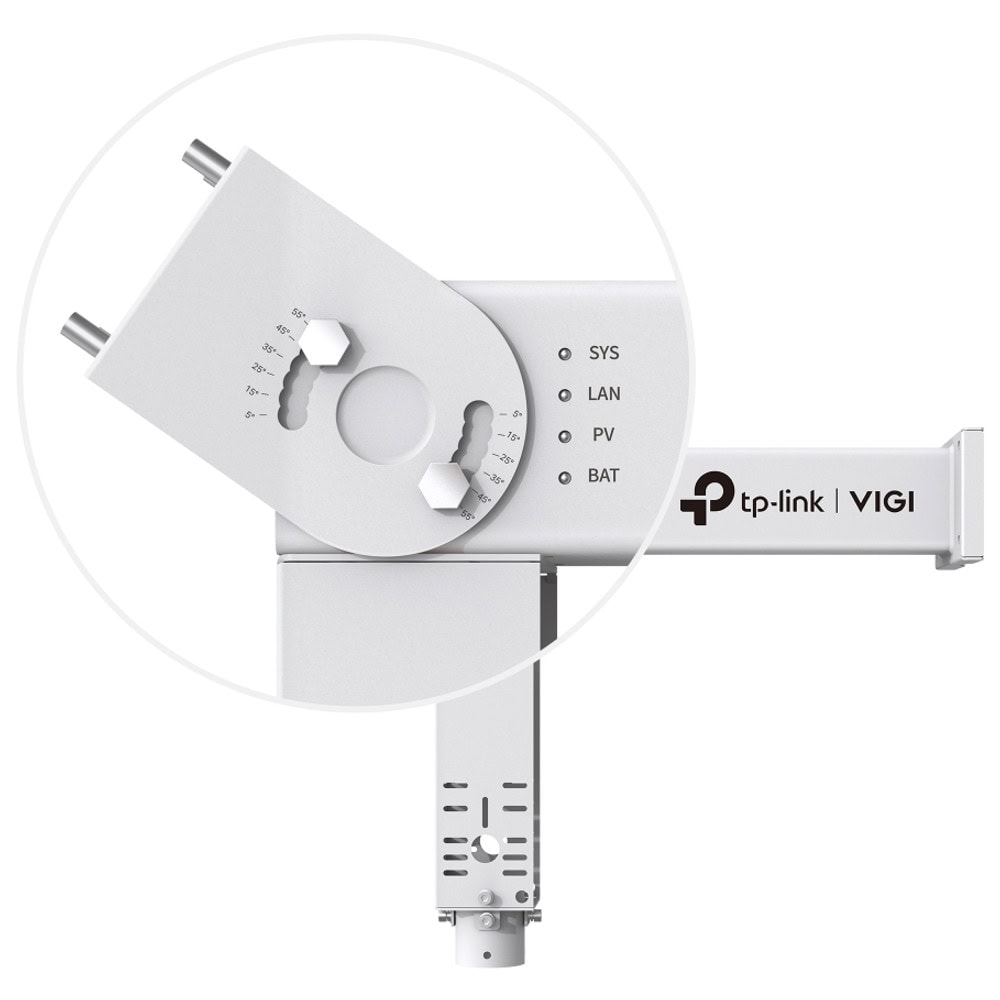

Контролер за соларна система TP-Link VIGI PS30

VIGI Solar System Controller

• 31.2Ah/10.8V Automotive-Grade Lithium Battery
• Remote Management and Maintenance via the VIG app or VIGI Cloud VMS
• Intelligent Auxiliary Heating Technology Ensures Optimal Battery Performance in Extreme Cold Weather
• Maximum Power Point Tracking (MPPT) Charging Controller Increases Charging Efficiency by 20%*
• Over-charge, Over-discharge, Over-current, Overheat, and Short-circuit Protections
• Remaining Capacity > 70%** after 500 Cycles
• IP66 Weatherproof

Category:

Battery

TypeLithium

Intelligent Auxiliary HeatYes

Battery Capacity31.2 Ah

Voltage10.8 V

Max. Output Voltage12.6 V

LifeMore than 500 cycles△

Dimension242×70×65 mm (9.5×2.8×2.6 in)

Charging Condition• 0°C45°C• -30°C45°C (With intelligent auxiliary heating)

Discharging Condition• -20°C60°C• -30°C60°C (With intelligent auxiliary heating)

Hardware

Interface• 1× 10/100 Mbps RJ45• 1× Photovoltaic Panel Connector• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)

Indicator LED• Quantity: 4 (SYS, LAN, PV, BAT Indicators)• Color: Blue
