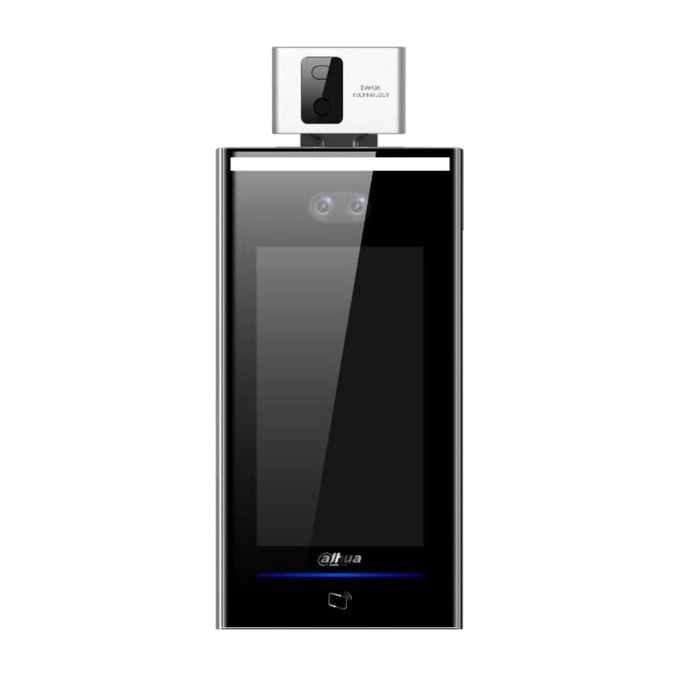

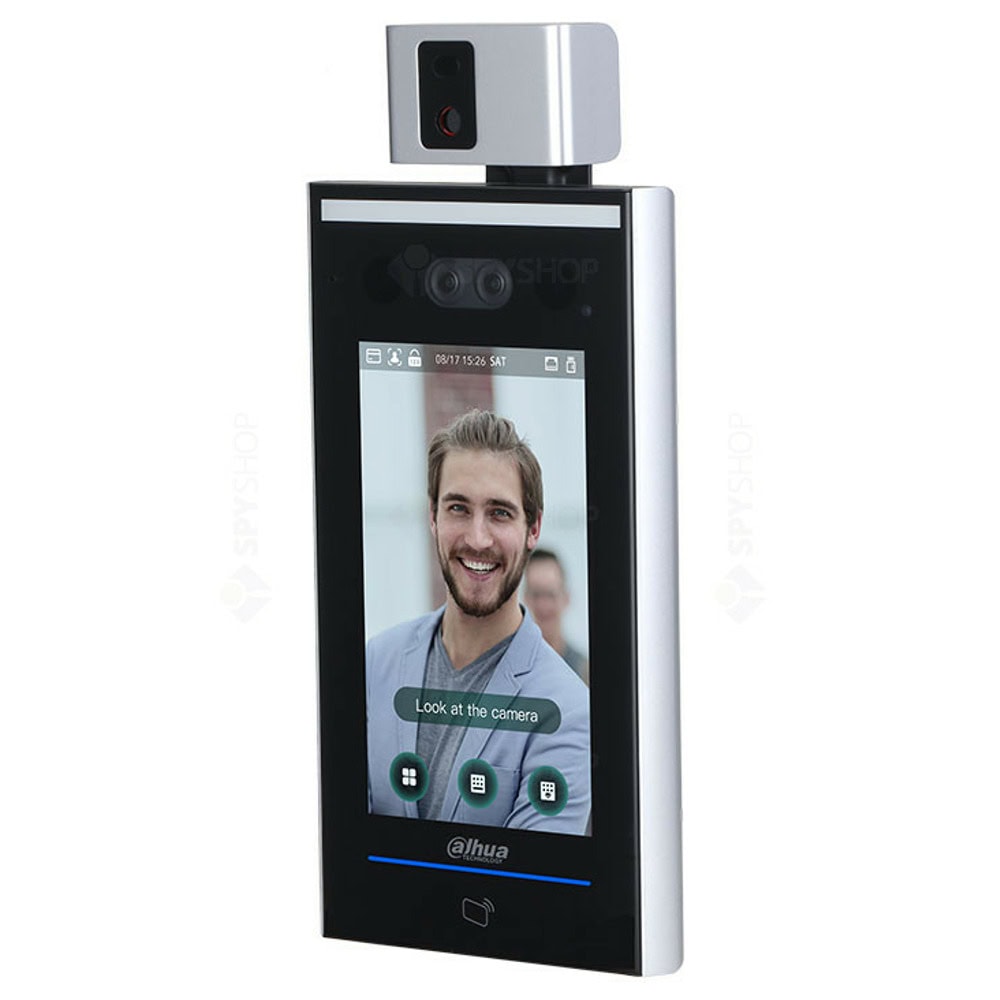

Контролер за достъп Dahua ASI7213X-T

ASI7213X-T1

Face Recognition Access Controller

> 2.5D curved screen

> 7-inch LCD display with resolution of 1024 × 600

> 2MP CMOS, WDR

> Auto illumination reduces light pollution

> Can hold 100,000 users, 100,000 face images, 100,000 cards, 100,000 password, 50 administrators, and 300,000 records

> Support face, IC card, password unlock and unlock through their combinations

> With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web

> Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m (lens-ground distance: 1.4 m)

> With face recognition algorithm, the terminal can recognize more than 360 positions on human face

> Face recognition speed: 0.2 s per face

> Support liveness detection

> Accurate recognition in backlight and front light

> Various unlock status display modes protect user privacy

> Support enabling/disabling the temperature monitoring mode; temperature monitoring range is 30°C to 45°C; temperature monitoring distance range is 0.3 m–1.8 m; temperature monitoring error is ≤ 0.5°C; report temperature anomaly alarm

> Support mask detection, report alarm of abnormal events without wearing a mask

> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding threshold alarm

> Support general users, patrol users, VIP users, guest users, and special users

Category:

System

Main ProcessorEmbedded Processor

Network ProtocolIPv4, RTSP, RTP, TCP, UDP, P2P

OSDP ProtocolYes

InteroperabilityONVIF, CGI

SDK and APISupport SDK

Basic

Display Screen7-inch display screen

Screen TypeCapacitive screen

Resolution600 (H) × 1024 (V)

Camera1/2.8" 2MP CMOS high-definition WDR dual camera

WDR120 dB

Light CompensationAuto white light, Auto IR light

Status Indicator1 indicator light (Red: Error, Green: Normal, Blue: Working)

Voice PromptYes

CasingAluminium alloy/tempered glass/PC

Function

Unlock ModeCard, Remote, Password, Face unlock, and their combinations. Face unlock under temperature monitoring mode.

Card TypeIC card

Period List128

Holiday Period128

First-Card UnlockYes

Remote VerificationYes

Peripheral Card Reader1 RS-485, 1 Wiegand

Multiple AuthenticationYes

Real-Time SurveillanceYes

Web ConfigurationYes

Performance

Card Reading Distance3 cm

Face Recognition Distance0.3 m–2.0 m (Face-camera distance), 0.9 m–2.4 m (Human height)

Face Verification Accuracy99.5%

Face Recognition Time0.2 s

Temperature Monitoring Range30°C to 45°C

Temperature Monitoring Error≤ 0.5°C

Temperature Monitoring Distance0.3 m–1.2 m

Temperature Monitoring Height135 cm–185 cm (0.5 m distance), 120 cm–210 cm (1.2 m distance)

Capacity
