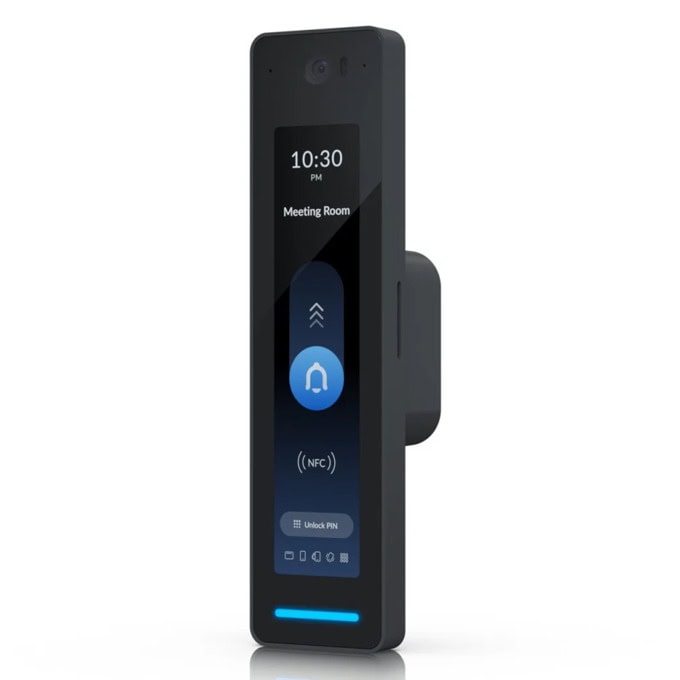

Контролер Ubiquiti UA-G3-PRO-B
G3 Reader Pro
UA-G3-Pro-B
Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Dimensions
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Integrated Camera
NFC Card & Keyfob Access
PIN Access
Apple/Google Wallet
Mobile Unlock
Face Unlock
Two-Way Intercom & Doorbell Access
NDAA Compliant
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weatherproofing
IP55
Weight
136 g (4.8 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
Wall, gang-box mount (Included) Angle mount, junction box (Optional)
Indoor and Outdoor Use
Yes
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
6W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Video
Max. Frame Rate
30 FPS
Resolution
2MP 1200 x 1600 (3:4)
Optics
Resolution
12 MP (3072 × 4096)
Field of View
H: 98.6°, V: 125.7°, D: 157.8°
Sensors
Характеристики
| Proximity sensor | Дисплей |
| Размер | 120 mm (4.7") diagonal |
| Screen Technology | Capacitive touch |
| Luminance | 480 nits (Typical) |
| Screen Orientation | Portrait |
| Резолюция | 1280 x 286 px |
| Микрофон | Високоговорител |
| LEDs | R/G/B/W/Amber |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
