Logitech
Конферентна камера Logitech Rally Bar Graphite (960-001311)
Артикул №: 1000144353
Категория:
Телефони и радиостанции
3 306,99 €
✓ Ограничена наличност

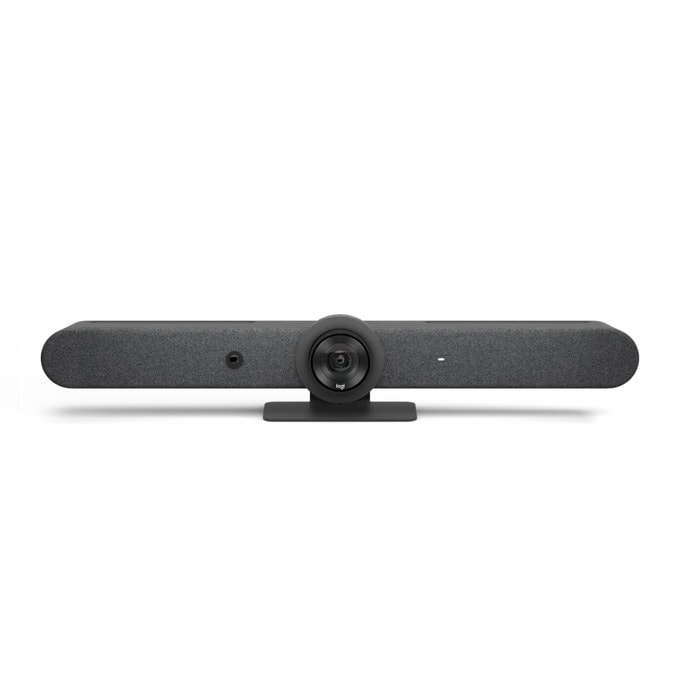

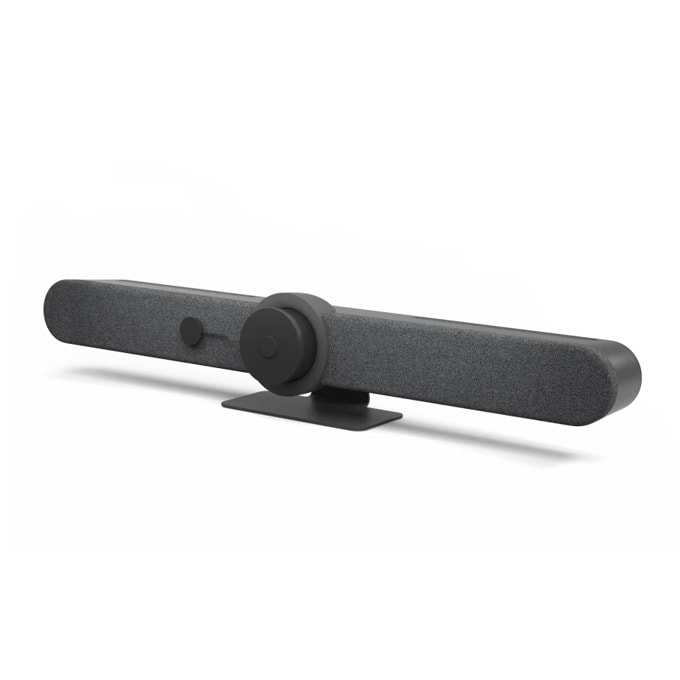

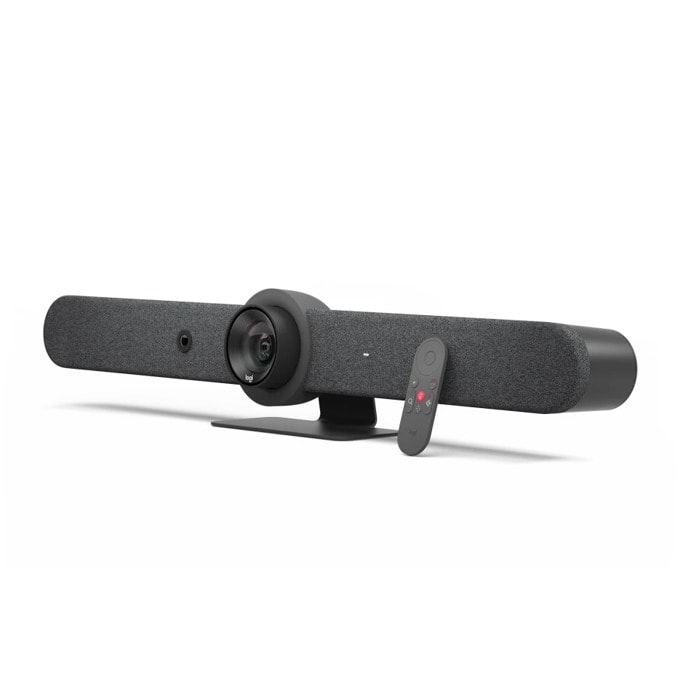

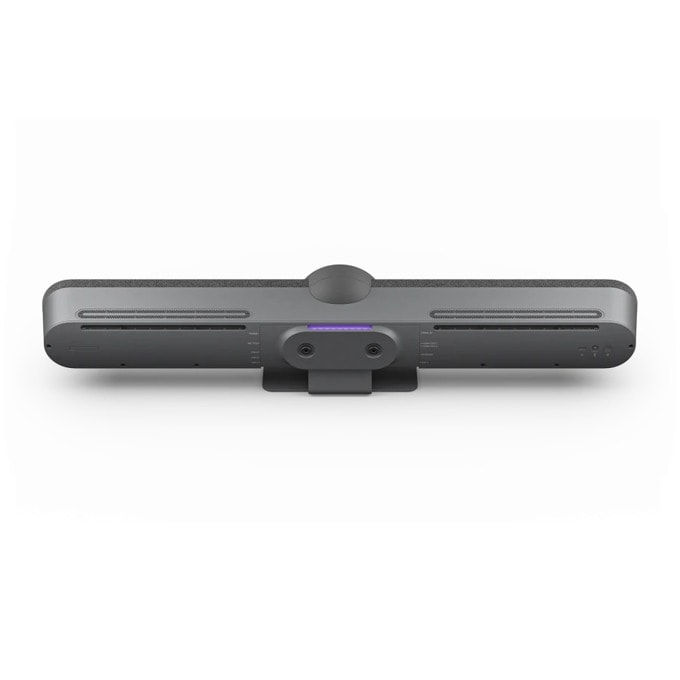

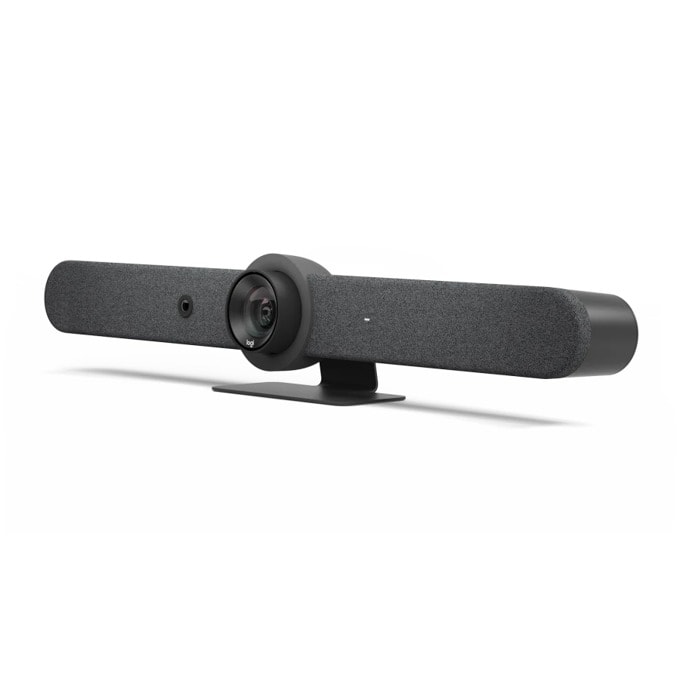

RALLY BAR
All-in-one video bar for midsize rooms
SIMPLE TO SET UP
Connect via USB to virtually any PC or Mac with no additional software needed.
SIMPLE TO USE
Start your meeting with just one touch, seamlessly connecting Rally Bar to your preconfigured room solution.
STAYS FOCUSED
Using AI, human perception, and motorized PTZ, Rally Bar adapts to meeting dynamics and keeps the camera on the action.
EXPAND THE CONVERSATION
Easily accommodate larger groups and spaces, starting with a 4.57 m mic pickup range and the option to extend up to three Rally mic pods (varies by environment).
Камера
| Резолюция | 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
| Pan | Motorized ±25° |
| Наклон | Motorized ±15° |
| Zoom | 15X HD zoom (5X optical, 3X digital available with upcoming software update) |
| Diagonal field of view (dFoV) | 90° |
| Horizontal Field of View | 82.1° |
| Vertical Field of View | 52.2° |
| Total Room Coverage | 132.1° Horizontal x 82.2° Vertical |
Високоговорители
| Drivers | 2x 70 mm / 2.7 in |
| Output | 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter |
| Чувствителност | 90+/-3dB SPL at 1W, ½ meter |
| THD | 1kHz |
| Speaker Sampling Rate | 48 kHz |
Microphones
| Честотен обхват | 90Hz – 16kHz |
| Чувствителност | >-36dBFS +/-1 dB @ 1Pa |
| Microphone data rate output | 48 kHz |
| Pickup Range | 15 ft / 4.5 m |
| Beamforming Elements | Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams |
| Audio processing | AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) |
| Noise suppression | AI filter |
| Add-on Mics | Supports up to 3 additional Rally Mic Pods for larger conference rooms |
RightSense™ Technologies
| RightLight™ | Renders natural skin tones for each participant. |
| RightSight | Maintains persistent room awareness and detects human figures to auto-frame participants. |
| RightSound | Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo |
Interfaces
| HDMI Out | 2 |
| HDMI вход | 1 |
| USB 3.0 | 3x Type A, 1x Type C |
| Network | 0.04oz (1 g)0/100/1G Ethernet |
| Wi-Fi | 802.11a/b/g/n/ac (MIMO) |
| External Mic Input | Да (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) |
| Дистанционно управление | Bluetooth® Low Energy |
Power & Cables
| Захранване | Auto-sensing |
| Operating Voltage/Power | 100-240V, 19V, 4.74A |
| Power Supply Dimensions | 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm) |
| DC Cable | 5 ft (1.5 m) |
| AC Cable | 3.28 gy (1 m) |
| HDMI 1.4 Cable | 7 ft (2 m) |
| USB A to USB C 3.0 Cable | 2.2 m/7.2 ft |
Environmental
| Работна температура | 0 to 40°C |
| Температура на съхранение | -40 to 70 °C |
| Влажност | 10 to 95% |
| BTU/hr | 57 idle, 64 in meeting |
Security
| Full Disk Encryption | AES-128 |
| Data Encryption | Symmetric Keys, PKI |
| Device Identity | Protected by device attestation |
| Device Access | Authenticated using API |
| Key Protection | Arm TrustZone, RPMP |
Certifications & Compatibility
| Certifications | Zoom™ Certified, Certified for Microsoft Teams as a USB device. 3Certification for use with Dell OptiPlex is pending |
| Съвместимост | Plug and play USB connectivity with virtually any video conferencing application |
| Appliance mode | Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. |
GENERAL SPECIFICATIONS
| Built-in Components | 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform |
| Enclosure | All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference |
| Device Management | Logitech Sync |
| Displays Supported | 2 |
| Display Resolution | Up to 4K |
