Комуникационен шкаф Lanberg WF11-3306-10S

Quick and easy installation of RACK WF11:
The WF11 10" RACK wall-mounted cabinets are designed for quick and easy installation, both for laypeople and professional installers. The included rear mounting strip is a significant convenience, allowing for significant flexibility and time savings in wall mounting. Side access via pull-down side doors, the ability to set the front door as either right or left-handed, and the option to remove the rear wall make it easy to install and modify equipment inside the cabinet. Managing your network infrastructure has never been easier.

Excellent ventilation without sacrificing space:

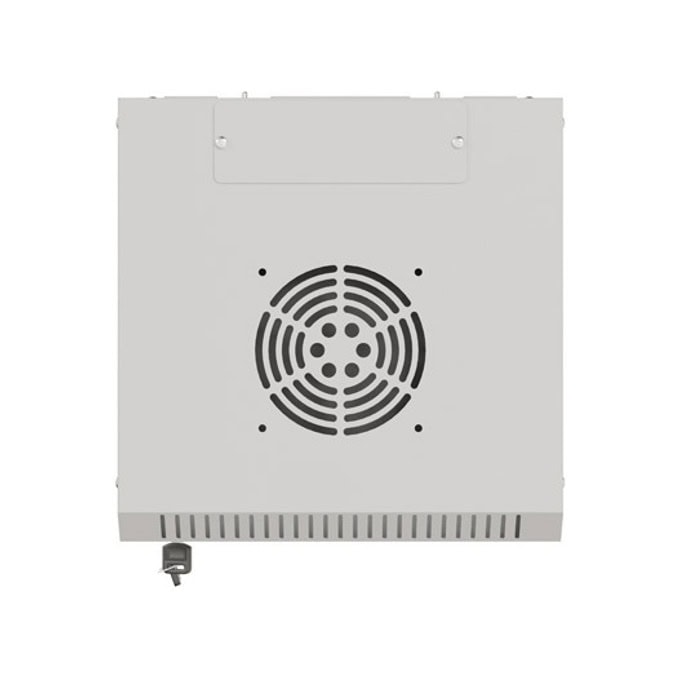

WF11 server cabinets provide efficient cooling thanks to an optimized ventilation system. The new, modified design allows the fan to be mounted without taking up space allocated for cabinet equipment, unlike the earlier WF10 series. Ventilation holes in the ceiling and bottom panels mean optimal temperature conditions inside the cabinet, which translates into reliability and longevity of stored equipment.

Robust design and increased stability:

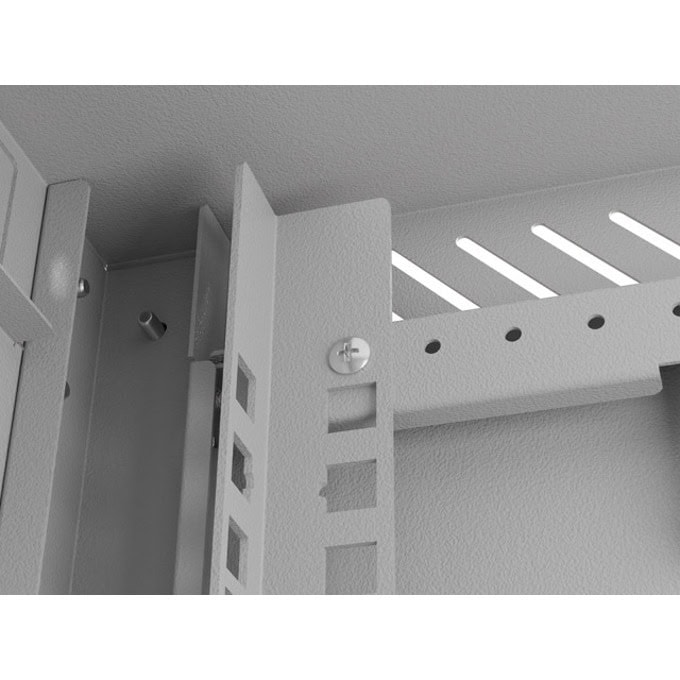

An additional two vertical mounting rails at the rear of the cabinet increase the stability of the installed equipment, ensuring the safety and aesthetics of the installation. Thanks to this, the cabinet allows you to store a variety of equipment, such as CCTV surveillance systems, alarm systems or server network components. Lanberg WF11 RACK cabinets are made of high-quality rolled steel, offering solid construction and reliability.

Specifications

Type of cabinet
Wall mount

Size
10"

ICT height
6 U

Assembly type
Self-assembly

Working depth
231 mm

Front door type
Temper glass

Door type
Single-leaf

Maximum front door opening angle
215 °

Maximum static load
30 kg

Slot amount for fans
1

Number of vertical rails
4

Thermostat
No

LCD panel
No

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
1.2 mm

Rear door thickness
1 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.5 mm

Frame thickness
1 mm

Other elements sheet thickness
1.2 mm

Depth
300 mm

Width
300 mm

Height
370 mm

Weight
8.2 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, IEC297-2:1982

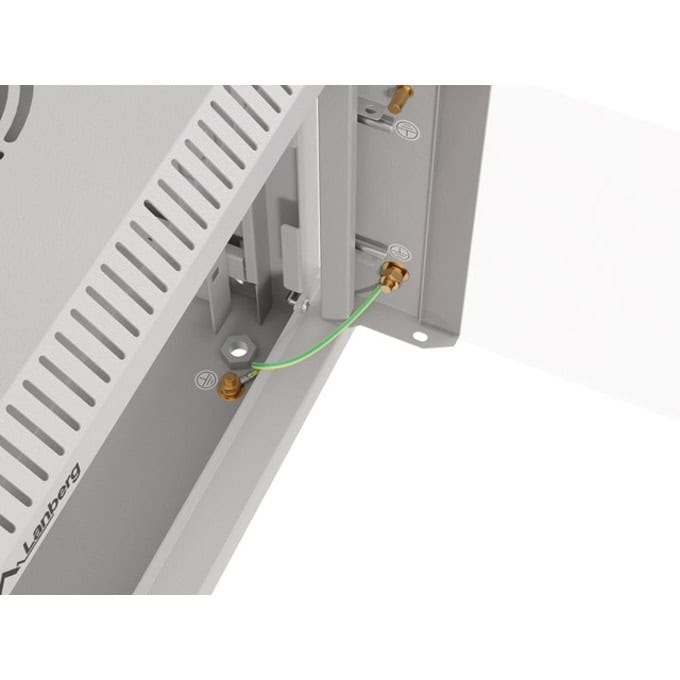

Grounding Details
Bottom panel, Front door
