Lanberg
Kабел Lanberg
Артикул №: 1000004458
Категория:
Мрежови кабели медни
47,99 €
✓ Ограничена наличност

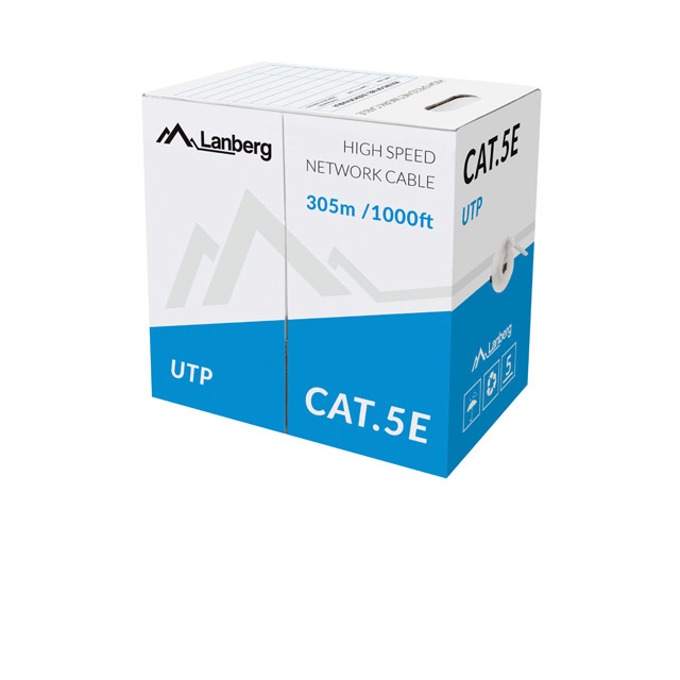

Lanberg LCU5-10CC-0305-S
Specification:
- LAN cable category 5e UTP (unshielded).
- Lenght 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 24 (4*2*0.5mm).
- Conductor stranding: single wire.
- Color: grey RAL7035.
- Printed length counter at every meter of cable.
Specification:
- LAN cable category 5e UTP (unshielded).
- Lenght 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 24 (4*2*0.5mm).
- Conductor stranding: single wire.
- Color: grey RAL7035.
- Printed length counter at every meter of cable.
Характеристики
| Lenght | 305m |
| AWG | 24 (4*2*0.5mm) |
| Conductor stranding | single wire. |
| Цвят | grey RAL7035. |
| External PVC insulation | 5.0mm. |
| HDPE conductor insulation | 0.93mm. |
| Works up to | 100Mhz |
| Compatibility with standards | ANSI/TIA/EIA-568&ISO/IEC 11801. |
| Package | cardboard box. |
| Packaging dimensions (W x D x H) | 36 x 23 x 36 cm. |
| Electrical characteristrics (20 degrees) | - Conductor resistance (max.): 60 - 90Om / 305m. - Insulation resistance (min.): 5000mOm km. - Pair-to-Ground capacitance: < 330PF / 100m. - Characteristic impedance: < 100Om (+/- 15). - Transport and storage temperature: 0 - 60 degrees. - Operating temperature: -20 - 70 degrees. - Working distance: 100-120m. |
