AXAGON
Кабел AXAGON ADA-HCPD
Артикул №: 1000137151
Категория:
Аксесоари за смарт устройства
22,99 €
✓ Налично във външен склад

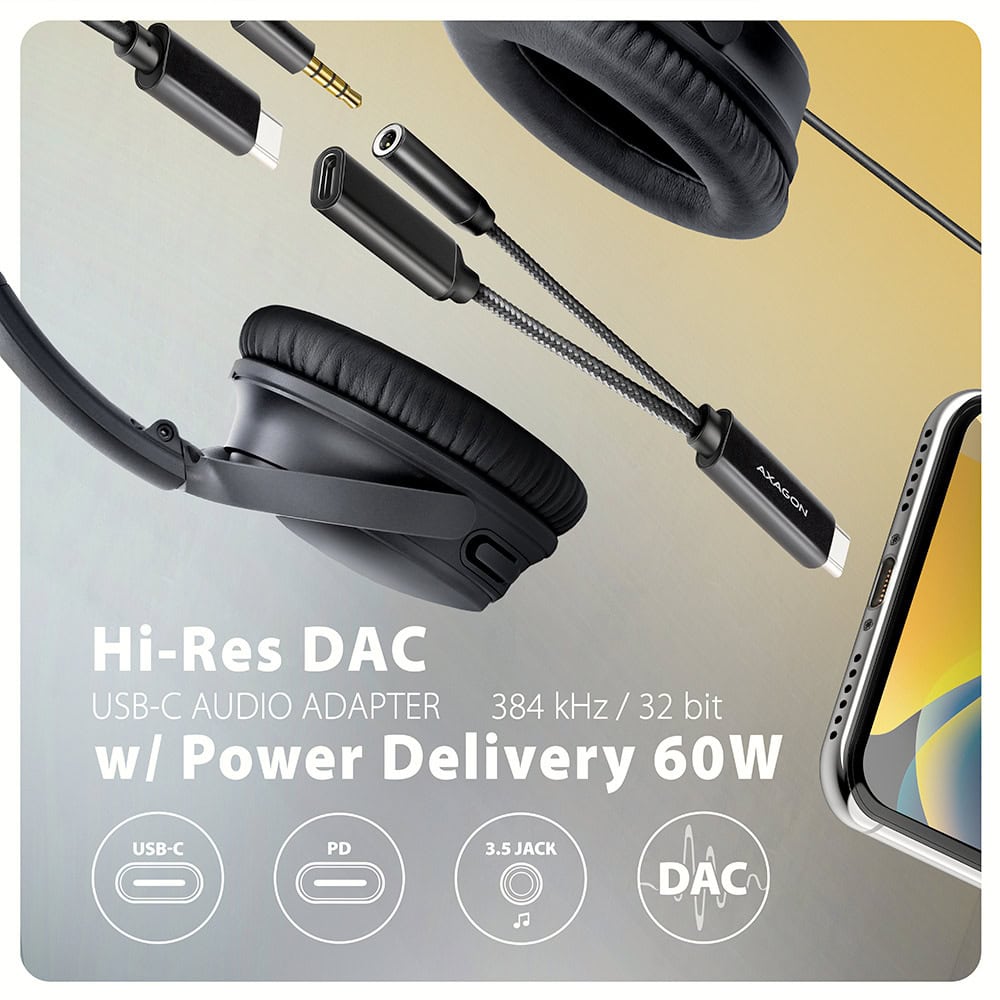

AXAGON ADA-HCPD

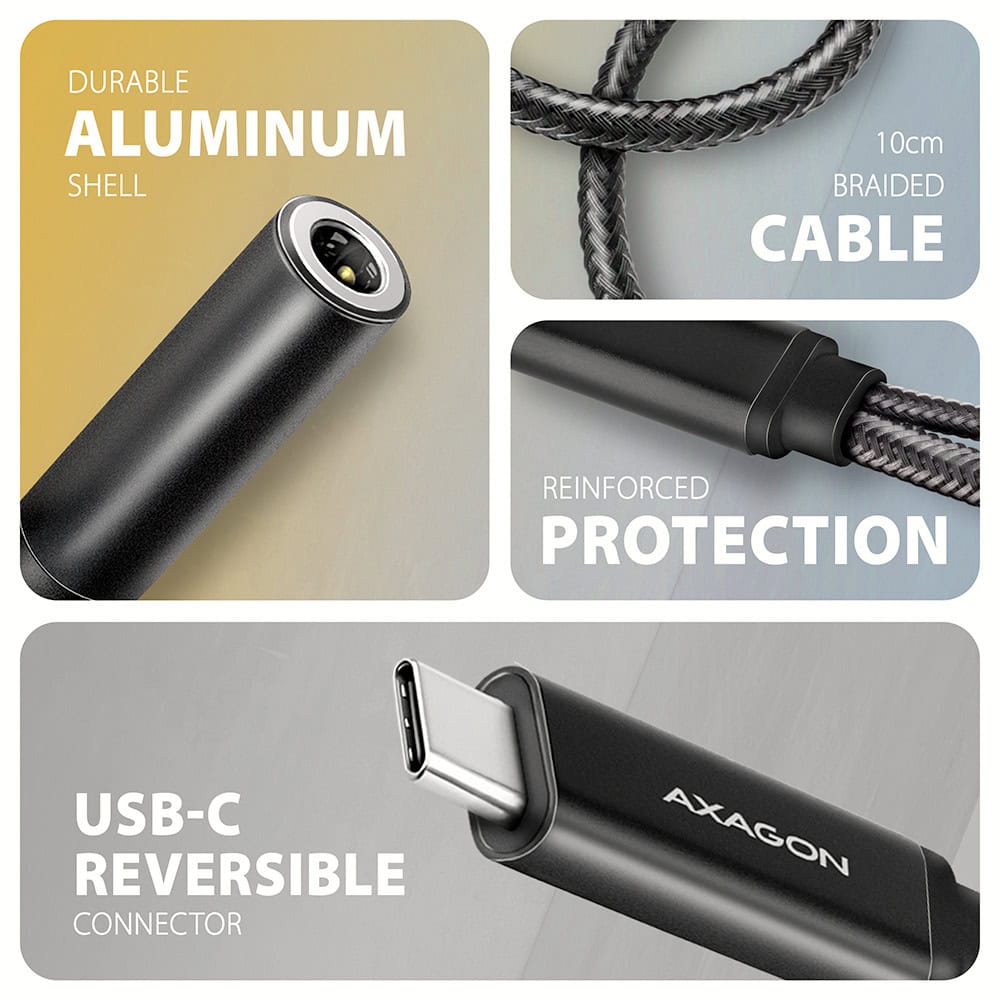

A stereo 4-pole TRRS connector with automatic CTIA or OMTP standard detection is used to connect headphones. The strength of the cable is ensured by a high-quality nylon braid.
Характеристики
| Input (connection to laptop) | • 1x USB 480Mbps male connector (USB 2.0) • connecting USB connector type C male |

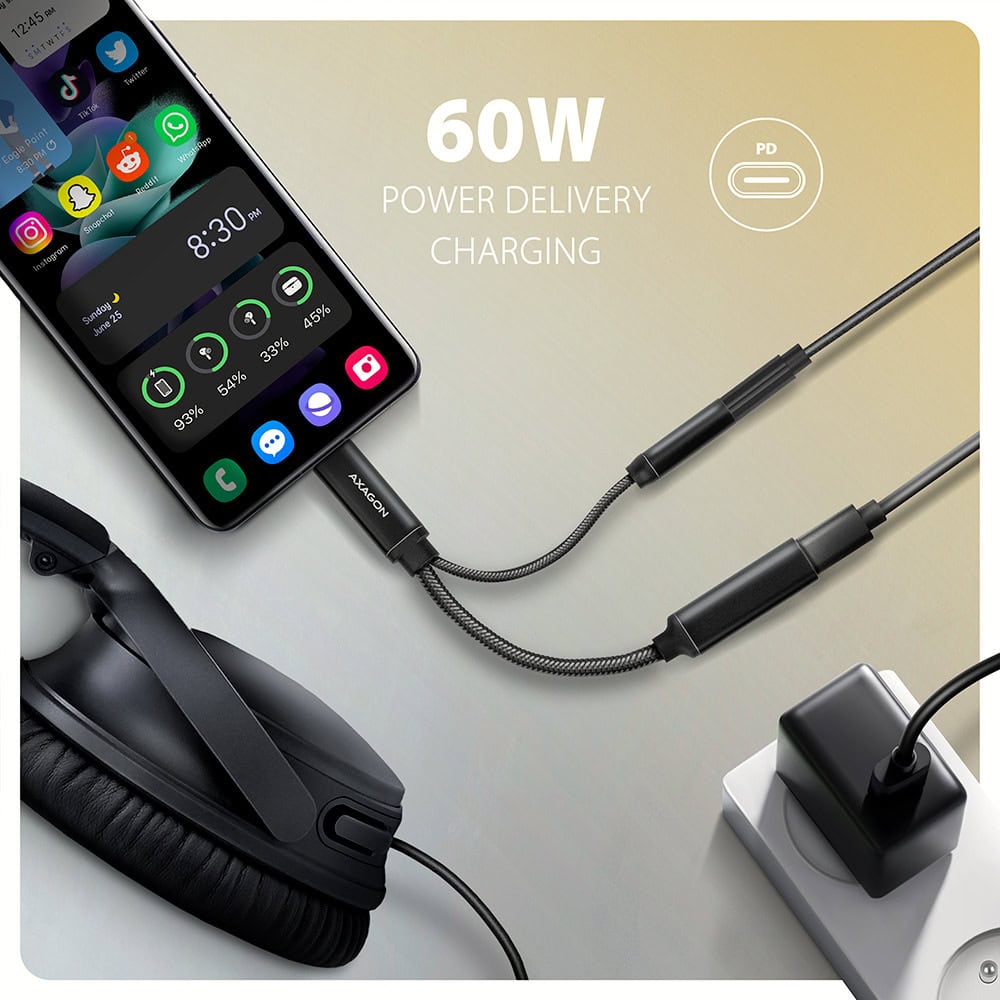

| Input (power supply) | • USB Power Delivery 3.0 60W, USB-C female connector. • Charging of the phone from the power adapter via USB-C adapter. • PD power must be supported by both the phone (laptop) and the wall charger. |
| Audio output | Да |
| 2-channel analog 32-bit output (3.5 mm TRRS stereo jack) | • stereo output for headphones or active speakers |
| Audio input | Да |
| analog 16-bit input (3.5 mm stereo jack) | • microphone input and input for recording analog signal |

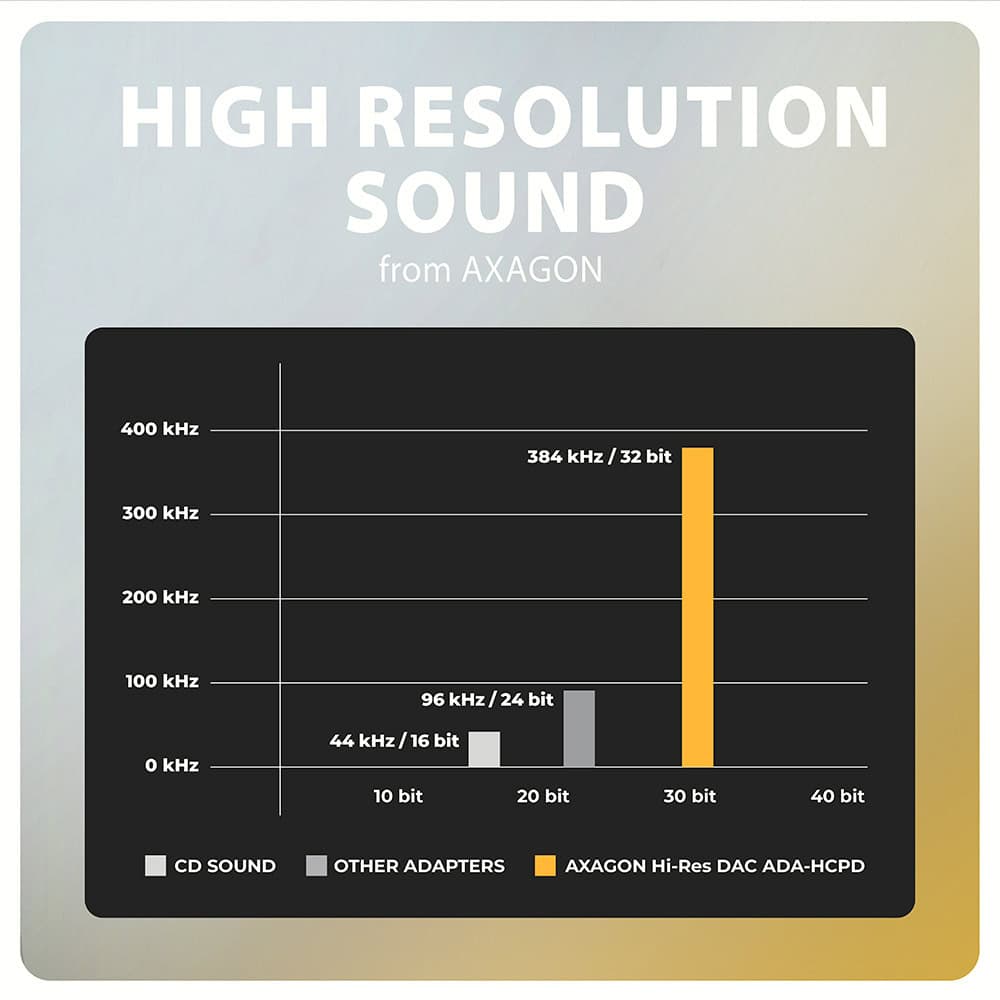

| Sampling rate, resolution and output converter (DAC) noise | • analog - 44.1 - 384 kHz @ 16 / 24 / 32bit (PCM) for playback • signal-to-Noise ratio (Output SNR) ≥ 124 dBA 32 Ohm, 30 mW reference signal, 20 Hz - 20 kHz) • harmonic distortion (Output THD + N) ≤ -95dB (32 Ohm, 20 mW, 20 Hz - 20 kHz) |
| Sampling rate, resolution and input converter (ADC) noise | • analog - 48 kHz @ 16 bit (PCM) for recording • signal-to-Noise ratio (Input SNR) ≥ 99dB (0 dB gain, Vref = 0.5 Vrms, 20 Hz - 20 kHz) • harmonic distortion (Input THD + N) ≤ -90 dB (0 dB gain, Vref = 0.5 Vrms, 20 Hz - 20 kHz) |

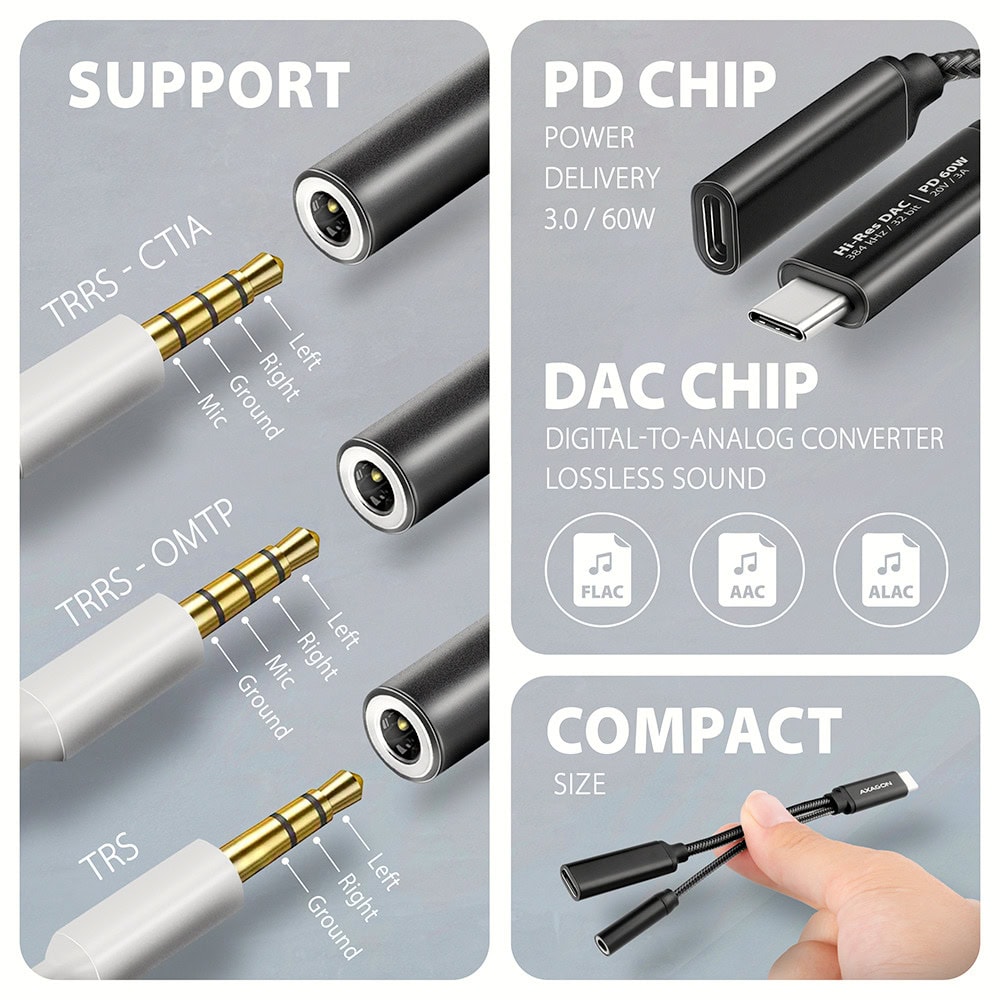

| Other features | • Built-in 30mW @ R=32 Ohm headphones amplifier. • Impedance range of connected headphones 16 - 200 Ohm. • Frequency range 20 Hz - 20 kHz. • USB 480Mbps interface (USB 2.0, backward compatible with USB 1.1). • Easy to install thanks to full Plug and Play support. • Possibility to connect your device while running thanks to the Hot Plug support. • 3.5 mm jack, TRS, TRRS (CTIA & OMTP autodetection) compatible. • Compliant with the USB Audio Device Class specification v1.0. • Adapter power supply via USB (bus power) - no auxiliary power supply required. • Dimensions of the 3.5 mm jack 25 x 7 mm. • Dimensions USB-C male connector 25 x 11 x 6 mm. • Dimensions USB-C female connector 30 x 11 x 6 mm. • Adapter length 10 cm. • Weight only 10 g. |
| Setting up a sound card in Windows allows | • Adjusting volume and balance of speakers • settings for listening to the microphone • extended speaker features: virtual surround sound, Dolby Atmos support • Setting the sampling rate and bit depth for reproduction |
| Sound card settings in Android allow | • Adjusting volume and balance of speakers • extended speaker features: virtual surround sound, Dolby Atmos support • immersive sound |
| Sound card settings in iOS / iPadOS allow | • volume setting • hearing protection • optimization for balanced sound |
| Supported operating systems | • Windows 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android Input interface: USB 2.0 interface: USB Power Delivery 3.0 connector: USB Type C male on the cable connector: USB-C female cable: 10 cm, permanently connected Audio outputs analog output: 2-channel stereo output for headphones or active speakers sampling rate: 44.1 / 384 kHz analog resolution: 16 / 24 / 32 bit (PCM) for playback signal-to-noise ratio: ≥ 124 dB (Output SNR) pro DAC harmonic distortion: ≤ -95 dB (Output THD+N) connector: 3.5 mm TRRS stereo jack Audio inputs analog input: 2-channel stereo microphone input sampling rate: 44.1 / 48 kHz analog resolution: 16 bit for recording signal-to-noise ratio: ≥ 99 dB (Input SNR) pro ADC harmonic distortion: ≤ -90dB (Input THD+N) connector: 3.5 mm stereo jack Supported features automatic installation: yes Plug and Play: yes Hot Plug: yes Other features dimensions: 25 x 7 mm weight: 4 g Power supply on the bus: yes (USB bus power) OS support iPadOS: yes iOS: yes MS Windows: 10 / 11 and higher MS Windows Server: yes Mac OS: yes Linux: yes 8595247908759 |
