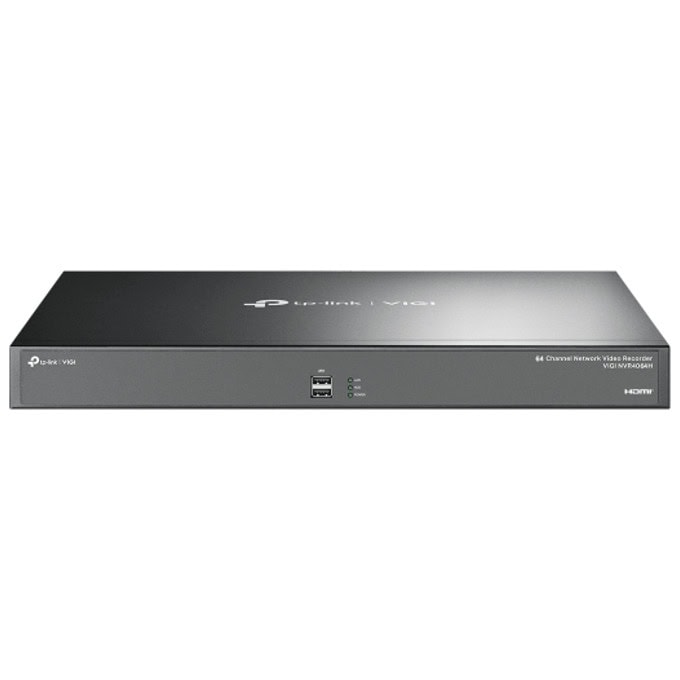

IP видеорекордер TP-Link VIGI NVR4064H

TP-Link VIGI NVR4064H

VIGI 64 Channel Network Video Recorder

• 64-Channel Live View and 4K HDMI Video Output
• Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
• 16-Channel Synchronous Playback†
• 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
• 4× SATA Interfaces and 1 Up to 16 TB*
• H.265+ Compression Technology
• 2 HDMI and 1 VGA Video Output
• Remote Monitoring

Category:

Video & AudioIP Video Input64-Channel

Incoming BandwidthDefault: 260Mbps / Extended: 320Mbps

Outgoing BandwidthDefault: 180Mbps / Extended: 320Mbps

HDMI Output ResolutionHDMI1: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60HzHDMI2: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output ModeHDMI1/HDMI2 IndependentHDMI1/VGA IndependentNote: HDMI2 takes precedence over VGA

Multi-View Display1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64

DecodingAudio CompressionG.711A, G.711U, G.726

Video CompressionH.265+, H.265, H.264+, H.264

Record Resolution8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Synchronous Playback16-Channel

Capability (25fps)16-ch@2MP, 32-ch@720P, 64-ch@D1

Capability (30fps)4-ch@8MP, 6-ch@5MP, 8-ch@4MP

Record ManagementRecord ModeManual, Scheduled, Motion Detection

Playback ModeInstant, Regular, Tag, Event

Backup ModeRegular, Video Clip

Playback FunctionsPlay, Pause, Stop, Fast Fwd/Back, Frame-by-frame, Full Screen, Clip Export, Digital Zoom, Lock Recording, Audio On/Off

NetworkProtocolsUPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP/HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile AccessAndroid, iOS

Browser SupportChrome (57+), Firefox (52+), Edge (91+)

InteroperabilityONVIF Profile S, CGI

External InterfacesNetwork Interface2× RJ-45 10/100/1000 Mbps

USB Interface2× USB 2.0 (Front), 1× USB 3.0 (Rear)

Audio Interface1-ch RCA Input, 1-ch RCA Output
