TP-Link
IP видеорекордер TP-Link VIGI NVR2016H-16P
Артикул №: 1000131754
Категория:
Видеонаблюдение и аларми
739,99 €
✓ Ограничена наличност

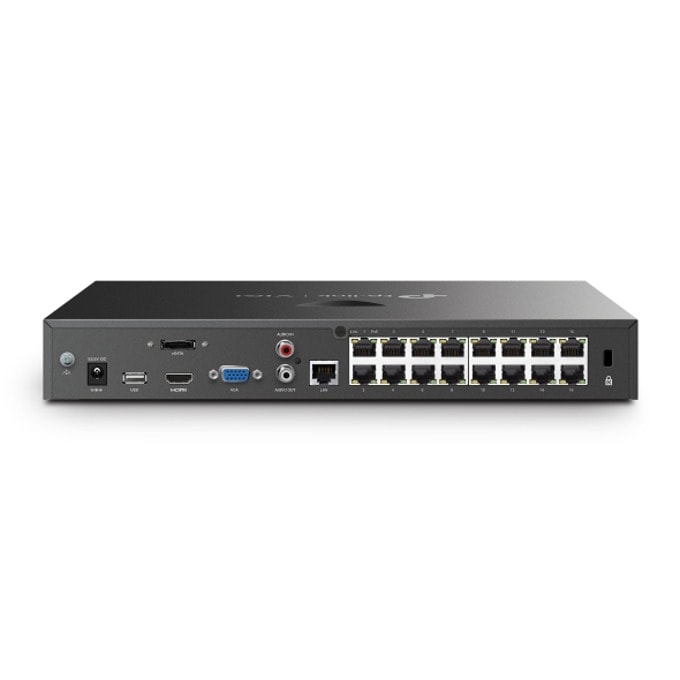

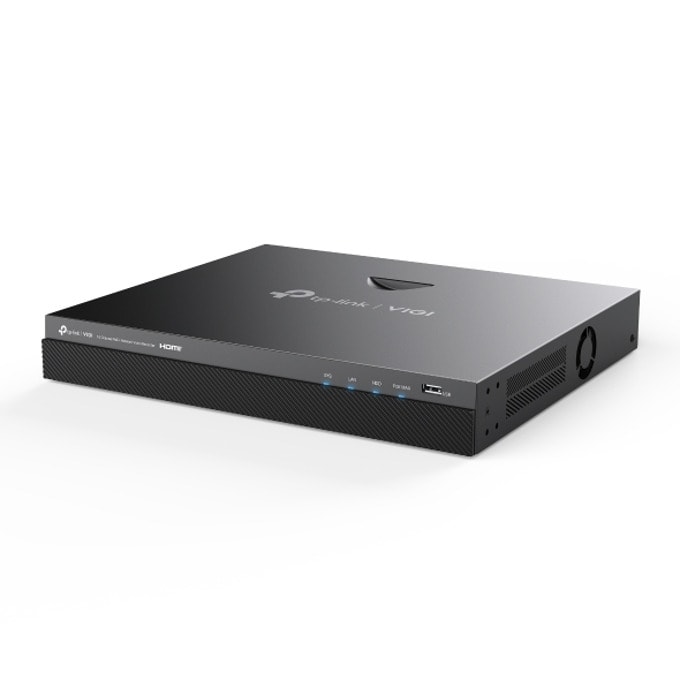

TP-Link VIGI NVR2016H-16P
VIGI 16 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.

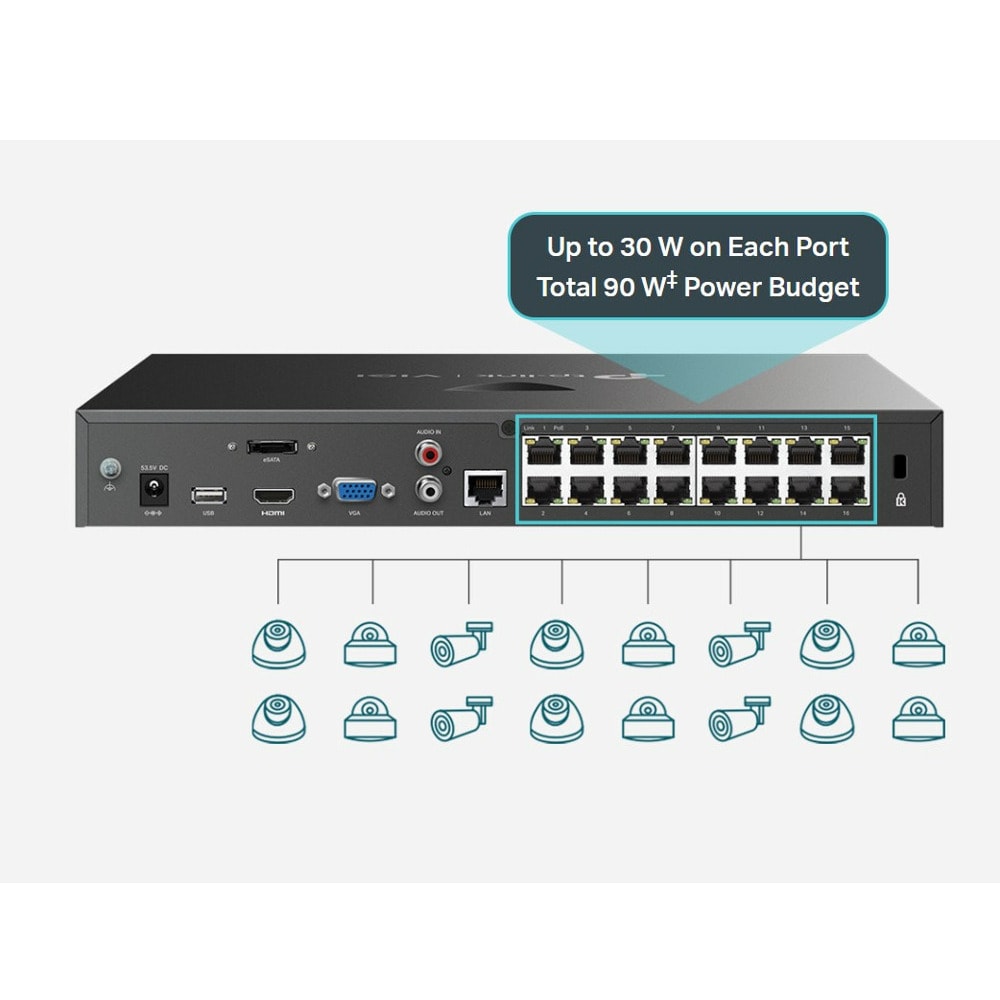

- 90 W PoE Budget : 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Характеристики
| Video and Audio | IP Video Input: 16-Channel Incoming Bandwidth: 80 Mbps Outgoing Bandwidth: 60 Mbps HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz Video Output Mode: HDMI/VGA Simultaneous Output Multi-View Display: 1/4/6/8/9/16 |
| DECODING | Audio Compression: G.711A/G.711U/G.726 Video Compression: H.265+/H.265/ H.264+/H.264 Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ · 2CIF/CIF/QCIF Synchronous Playback: 16-Channel Capability: 25fps: · 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP · · 30fps: · 4-ch @ 3MP, 2-ch @ 5MP |
| Record Management | Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback Backup Mode: Regular Backup, Video Clip Backup Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full · Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| NETWORK | Protocol: UPnP (Plug and Play), NTP (Network Timing) Mobile Phone Access: Android, iOS Web Browser: Chrome (57+), Firefox (52+), Edge (91+) Interoperability: ONVIF, CGI |
| External Interface | Network Interface: 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port Audio Interface: 1, Audio In; 1, Audio Out Alarm In/Out: N/A Serial Interface: N/A Power: 1× DC Jack Reset Button: 1 Speaker: N/A eSATA: 1 HDMI: 1 VGA: 1 |
| HARD DISK | SATA: 2 SATA Interfaces Capacity: Up to 10 TB Capacity for Each HDD |
| PoE | Standard: 802.3at/af Compliant Interface: 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface PoE Budget: 90 W Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | General Alarm: Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| GENERAL | Storage Temperature: -40–70 °C Storage Humidity: 10%~90% RH Non-Condensing Working Temperature: NVR: -10–55 °C · Power Adapter: 0–40 °C Working Humidity: 10%~90% RH Non-Condensing Dimensions( W X D X H ): 330 × 285 × 45 mm Net Weight: 1.9 Kg Gross Weight: 3.2 Kg Power Supply: 53.5V DC/2.43A Power Consumption: 6.2 W (Without Disk) · 40 W (With Disk) |
