Начало / NVR Записващи устройства / IP видеорекордер TP-Link VIGI NVR2016H-16MP

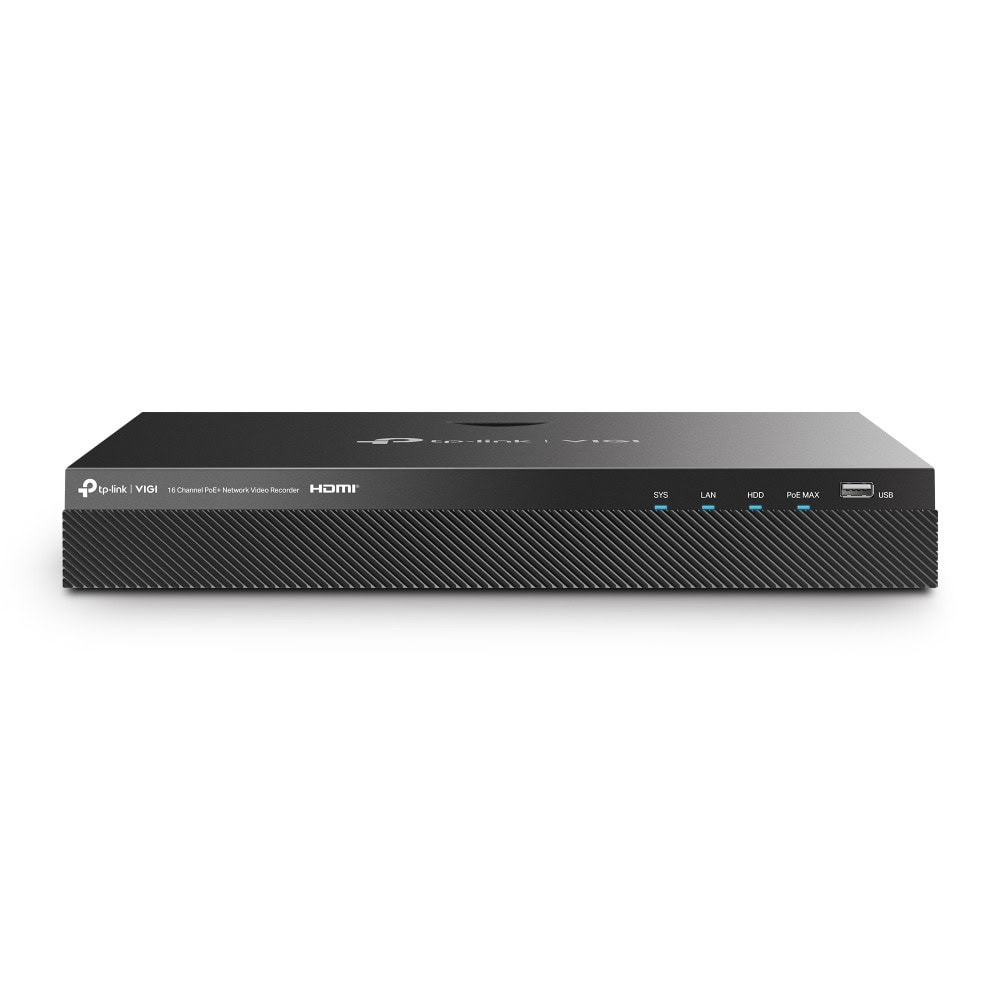

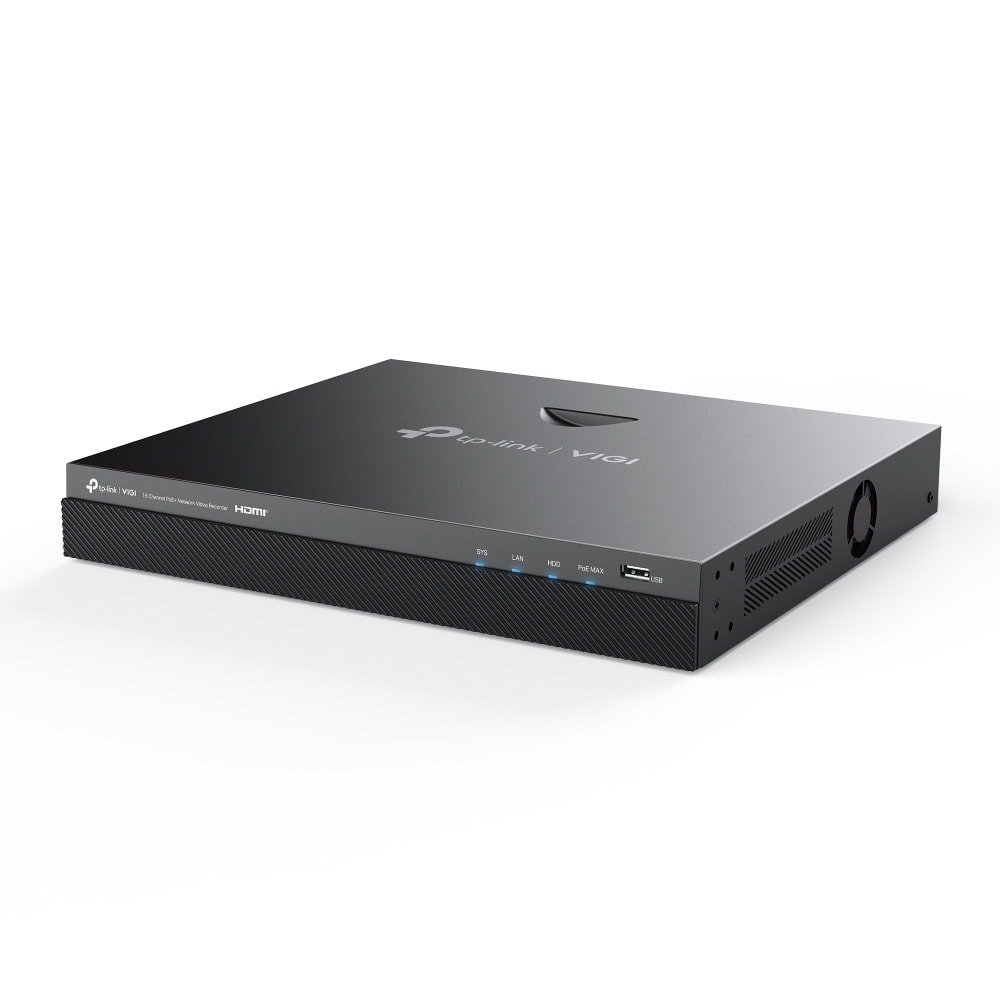

IP видеорекордер TP-Link VIGI NVR2016H-16MP
TP-Link

IP видеорекордер TP-Link VIGI NVR2016H-16MP

Артикул №: 1000035040
Категория: NVR Записващи устройства
899,99 €
✓ Ограничена наличност

VIGI NVR2016H-16MP

VIGI 16 Channel PoE+ Network Video Recorder

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
  • 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡
  • 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
  • 24/7 Continuous Recording: Stores up to 32 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
  • Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
  • Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.







Every Angle All on One Screen

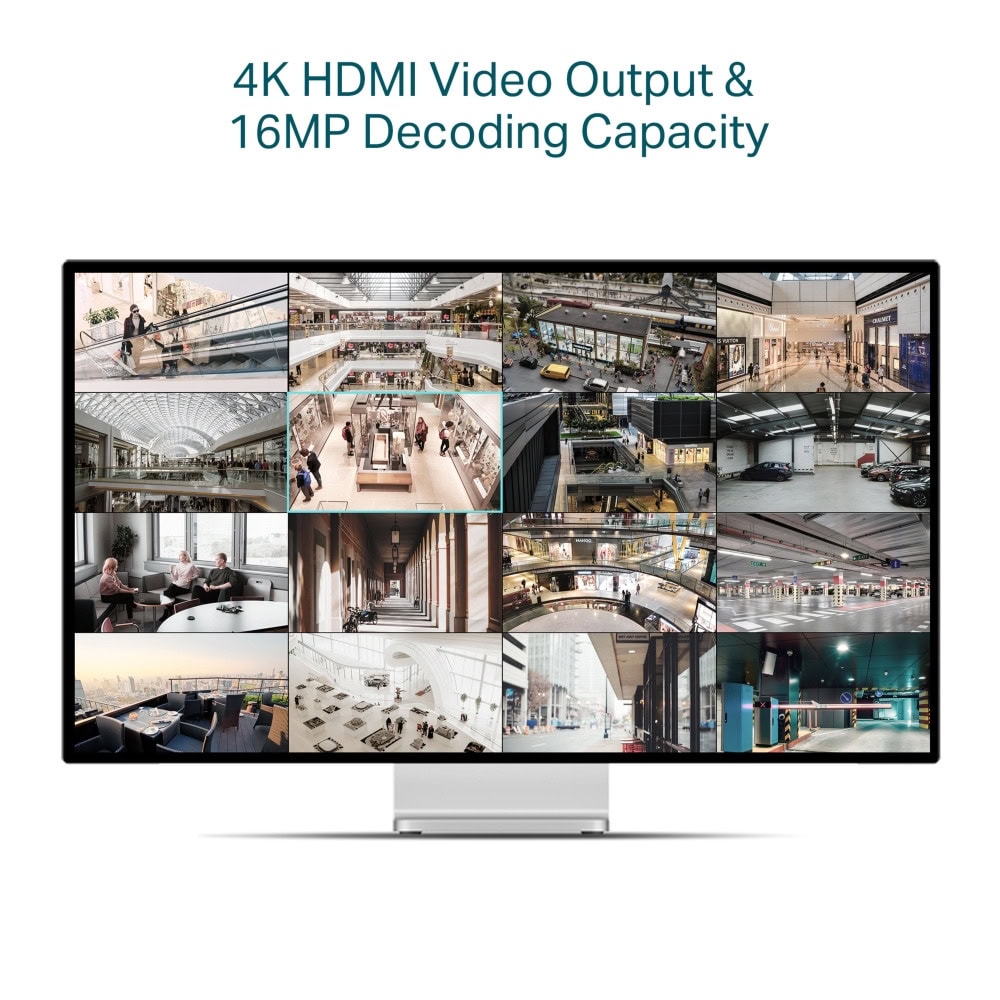

4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.





Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.

Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.







Reviewing Footage is Faster than Ever

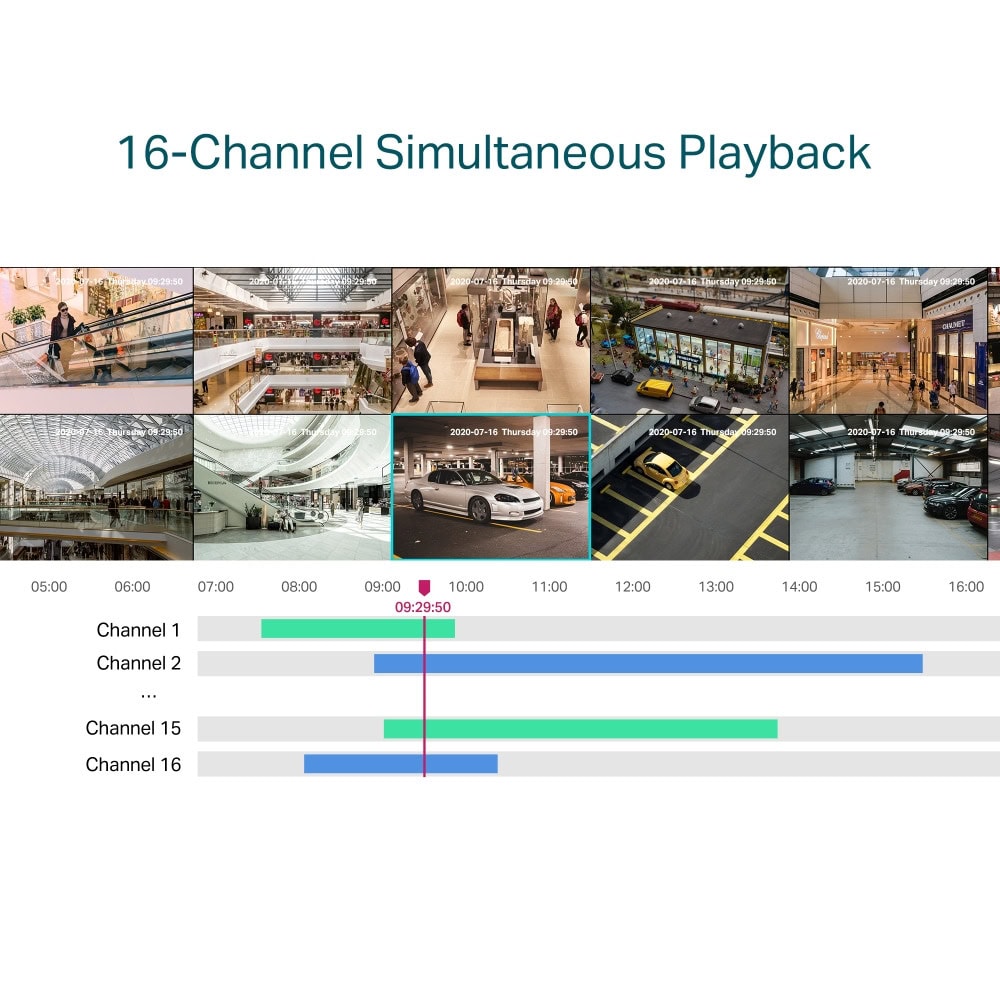

16-Channel Simultaneous Playback

Replay the feed from up to 16 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage.



Two-Way Audio

With voice intercom support, scare off any potential thieves or intruders from wherever you are.





Video and Audio

IP Video Input 16-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8/9/16

DECODING

Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability • 25fps: · 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP · · • 30fps: · 4-ch @ 3MP, 2-ch @ 5MP

Record Management

Record Mode • Manual Recording · • Scheduling Recording · • Motion Detection Recording
Playback Mode • Instant Playback · • Regular Playback · • Tag Playback · • Event Playback
Backup Mode • Regular Backup · • Video Clip Backup
Playback Function • Play · • Pause · • Stop · • Fast Forward · • Fast Backward · • Play By Frame · • Full Screen · • Video Clip · • Export Clip · • Digital Zoom · • Lock Recording · • Audio On/Off

NETWORK

Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI

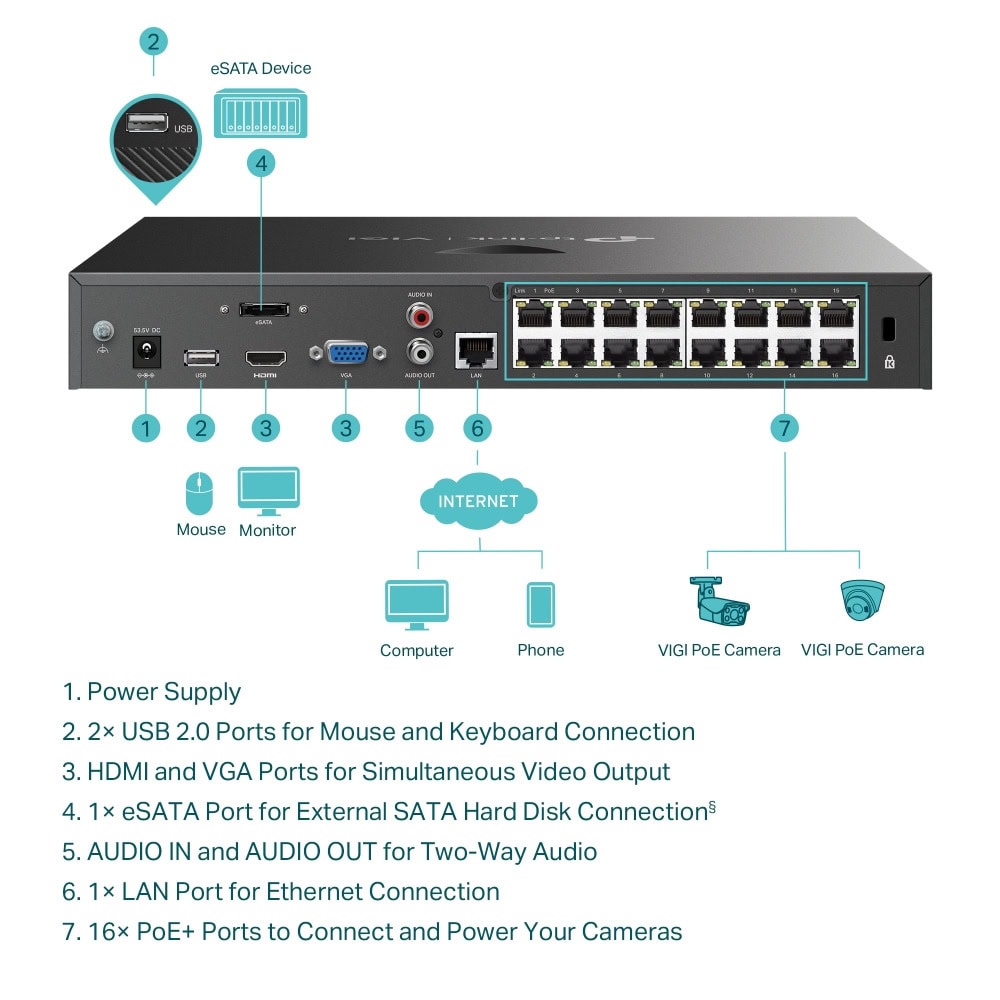

External Interface

Network Interface 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1, Audio In; 1, Audio Out
Мощност 1× DC Jack
Reset Button 1
eSATA 1
HDMI 1
VGA 1

HARD DISK

SATA 2 SATA Interfaces
Капацитет Up to 16 TB Capacity for Each HDD

PoE

Standard 802.3at/af Compliant
Интерфейс 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 140 W Available for All PoE+ Ports, 30 W Max per Port

Alarm

General Alarm • Motion Detection · • Video Tampering · • Line-Crossing Detection · • Intrusion Detection · • Region Entering Detection · • Region Exiting Detection · • Object Abandoned/Removal Detection · • Vehicle Detection · • Human Detection · • Smart Frame
Anomaly Alarm • Video Loss · • Offline and IP Conflict · • Disk Exception · • Login Exception · • Fan Exception
Alarm Linkage • Recording · • White Light Alarm · • Buzzer · • Log · • Audible Alarm

GENERAL

Температура на съхранение -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Working Temperature • NVR: -10–55 °C · • Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 330 × 285 × 45 mm
Нето тегло 2.1 Kg
Бруто тегло 4.1 Kg
