TP-Link
IP видеорекордер TP-Link VIGI NVR1008H-8MP
Артикул №: 1000026471
Категория:
NVR Записващи устройства
440,99 €
✓ Налично във външен склад
VIGI 8 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
.jpg)

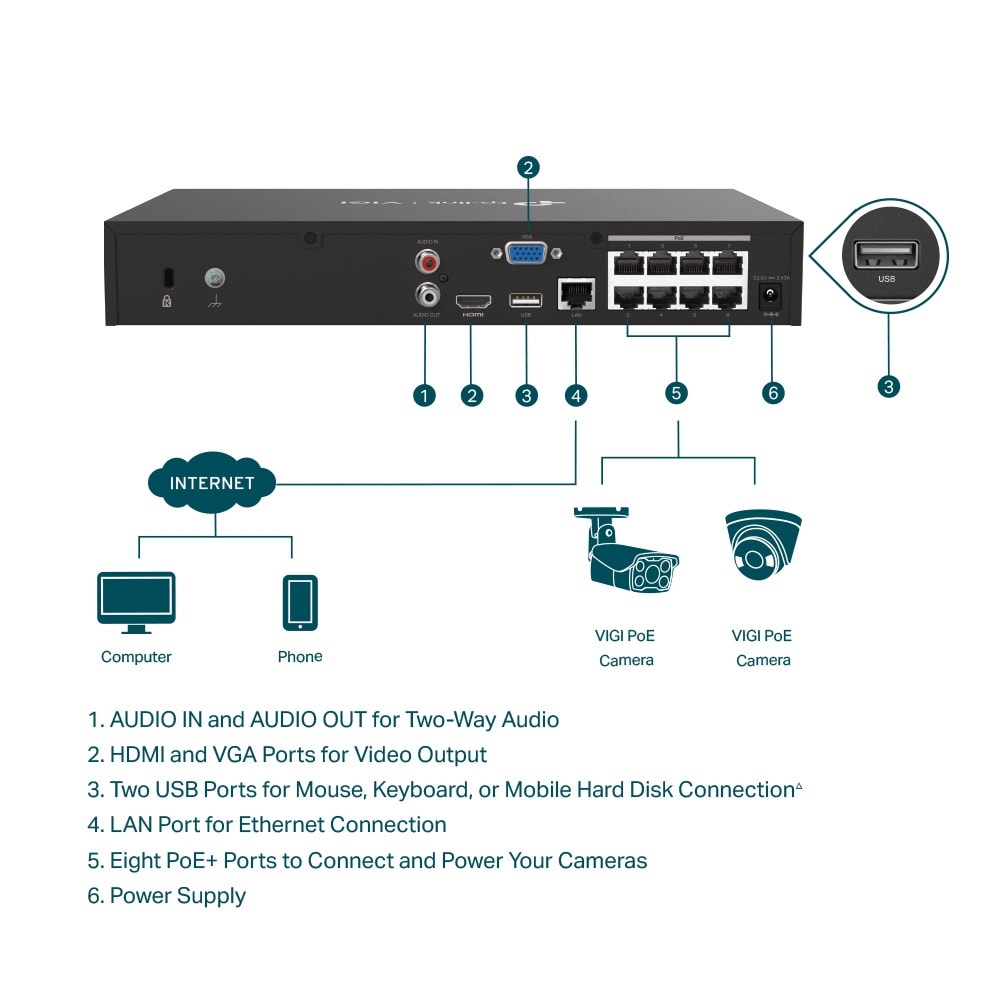

Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment.
Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
| МРЕЖА | |
|---|---|
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| ИНТЕРФЕЙСИ | |
|---|---|
| Мрежов интерфейс | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |
| ОБЩИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Съдържание на пакета | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
| Околна температура при работа | -10–55 °C |
| Размери (Ш x Д x В ) | 294 × 180 × 44 mm |
| PoE | Standard: 802.3af/at PoE Ports: Ports 1-8 PoE Budget: 113 W |
| Външно захранване | 53.5V DC/2.43 A |
| Power Consumption | 4.82 W (without disk) |
| ВИДЕО/СНИМКА | |
|---|---|
| Video Input | 8-Channel IP Video Input, up to 8 MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, |
| DECODING | |
|---|---|
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8 Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
VIGI 8 Channel PoE+ Network Video Recorder
| 4K HDMI Video Output & 16MP Decoding Capacity | Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡. |
| Simplified Deployment with PoE+ | Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. |
| 8-Channel Simultaneous Playback* | Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. |
| H.265+ | Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. |
| ONVIF Ensures Compatibility△ | Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. |
| Plug & Play | Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. |
| 24/7 Continuous Recording | Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access. |
| Remote Monitoring | The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience. |
| Flexible Installation | Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience. |
| Two-Way Audio | With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management. |
Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment.
| МРЕЖА | Protocol: TCP/IP, DHCP, DNS, NTP, UPnP Incoming Bandwith: 80 Mbps Outgoing Bandwidth: 60 Mbps |
| ИНТЕРФЕЙСИ | Мрежов интерфейс: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface: 2× USB 2.0 |
| HARD DISK | SATA: 1 SATA Interface Capacity: Up to 10 TB |
| ОБЩИ ХАРАКТЕРИСТИКИ | Съдържание на пакета: VIGI Network Video Recorder · Power Adapter · HDD Screws · Mouse · Quick Installation Guide Околна температура при работа: -10–55 °C Размери (Ш x Д x В ): 294 × 180 × 44 mm PoE: Standard: 802.3af/at · PoE Ports: Ports 1-8 · PoE Budget: 113 W Външно захранване: 53.5V DC/2.43 A Power Consumption: 4.82 W (without disk) |
| ВИДЕО/СНИМКА | Video Input: 8-Channel IP Video Input, up to 8 MP Resolution Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, · 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, · 1024x768/60Hz, 1280x720/60Hz VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, · 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, · 1024x768/60Hz |
| DECODING | Decoding Format: H.265+/H.265/ H.264+/H.264 Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ · DCIF/2CIF/CIF/QCIF Synchronous Playback: 8 Channel Capability: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
