TP-Link

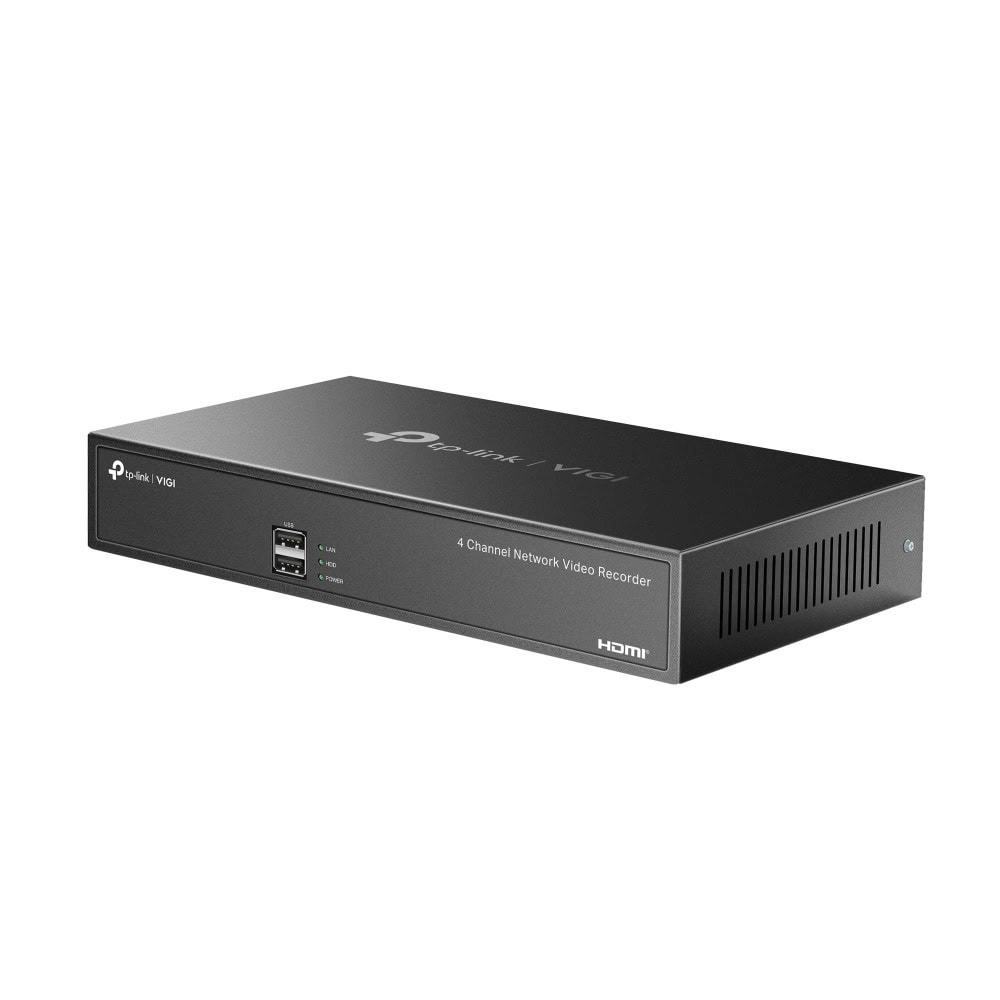

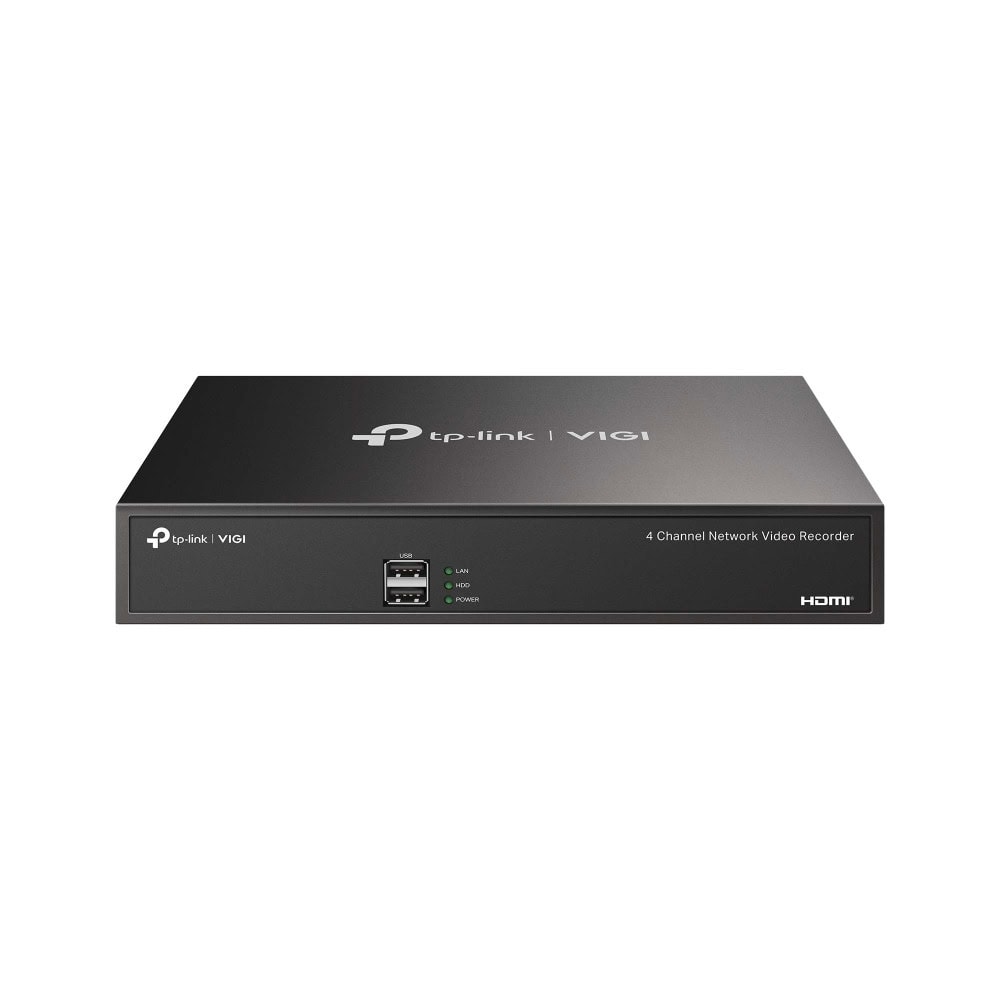

IP видеорекордер TP-Link VIGI NVR1004H
Артикул №: 1000035057
Категория:
NVR Записващи устройства
171,99 €
✓ Налично във външен склад
VIGI NVR1004H
VIGI 4 Channel Network Video Recorder
- 4-Channel Live View and 4K HDMI Video Output
- 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
- 4-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 SATA Interface (up to 16 TB) *
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Video and Audio
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4 |
DECODING
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |
Record Management
| Record Mode | • Manual Recording · • Scheduling Recording · • Motion Detection Recording |
| Playback Mode | • Instant Playback · • Regular Playback · • Tag Playback · • Event Playback |
| Backup Mode | • Regular Backup · • Video Clip Backup |
| Playback Function | • Play · • Pause · • Stop · • Fast Forward · • Fast Backward · • Play By Frame · • Full Screen · • Video Clip · • Export Clip · • Digital Zoom · • Lock Recording · • Audio On/Off |
NETWORK
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

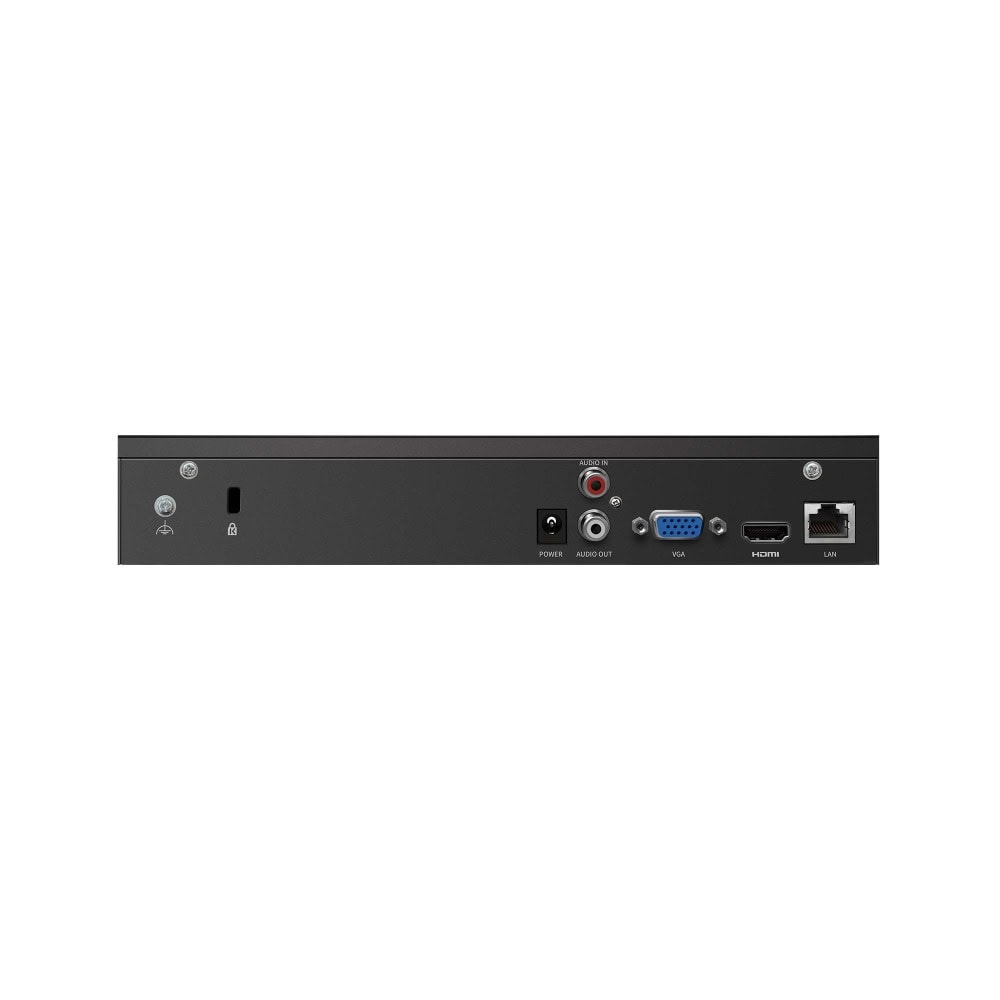

External Interface
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Мощност | 1× DC Jack |
| Reset Button | 1 |
| HDMI | 1 |
| VGA | 1 |
HARD DISK
| SATA | 1 SATA Interface |
| Капацитет | Up to 16 TB Capacity for Each HDD* |
Alarm
| General Alarm | • Motion Detection · • Video Tampering · • Line-Crossing Detection · • Intrusion Detection · • Region Entering Detection · • Region Exiting Detection · • Object Abandoned/Removal Detection · • Vehicle Detection · • Human Detection · • Smart Frame |
| Anomaly Alarm | • Video Loss · • Offline and IP Conflict · • Disk Exception · • Login Exception |
| Alarm Linkage | • Recording · • White Light Alarm · • Buzzer · • Log · • Audible Alarm |
GENERAL
| Температура на съхранение | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Съдържание на пакета | • VIGI Network Video Recorder · • Power Adapter · • HDD Screws · • Mouse · • Rubber Feet · • Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C · • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
| External Power Supply | DC 12V/1.5A |
| Нето тегло | 0.59 kg |
| Бруто тегло | 0.95 kg |
| Консумация на енергия | 4.25 W (without disk) |
