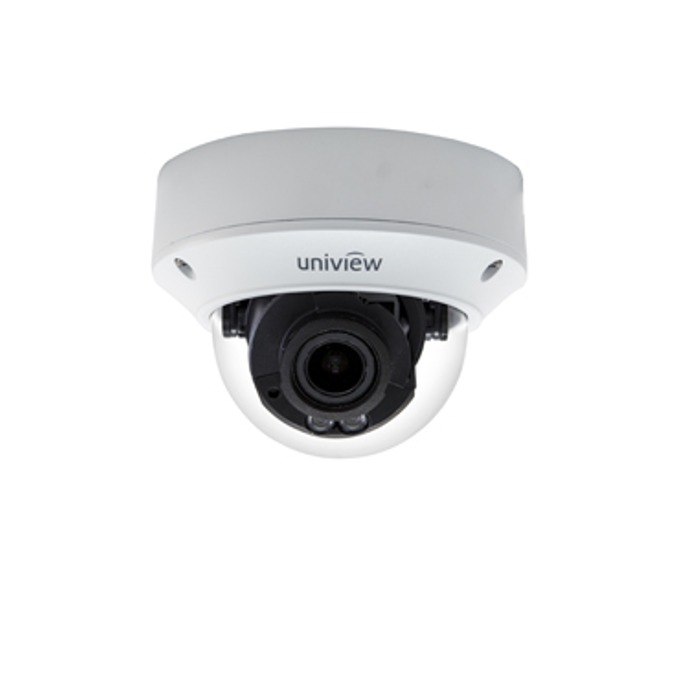

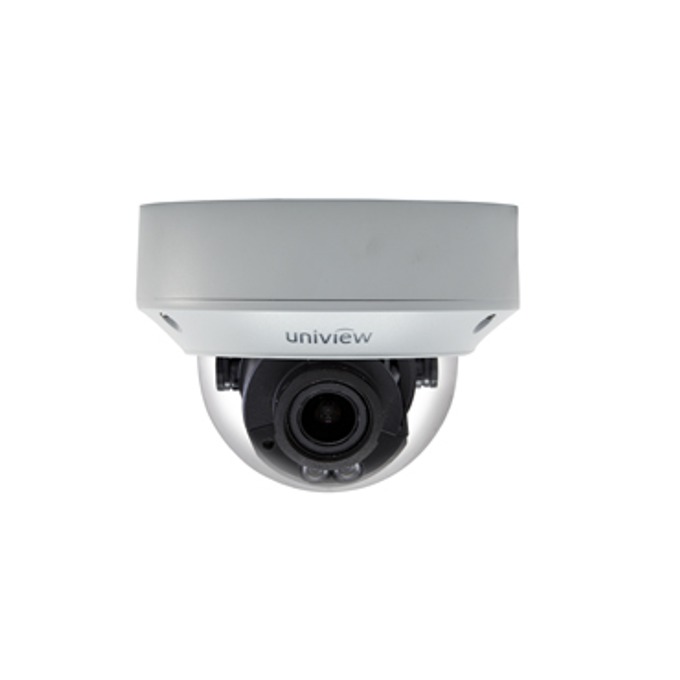

IP камера UNV IPC3231ER-VS

Характеристики:

Sensor

1/3", 1.3 megapixel, progressive scan CMOS

Shutter

Auto/Manual, 1/6~1/8000 s

Lens

2.8~12 ; Angle of View (H): 90.0° (wide) ~28° (tele)

Zoom/Focus

Manual

Min. Illumination

Colour: 0.002 Lux (F1.4, AGC ON)

0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

IR Range

Up to 30m (98 ft) IR range

S/N

>50dB

WDR

Digital WDR

Max. Resolution

1280 × 960

Video Compression

H.264,MJPEG

Capture Collect Mode

960P (1280×960): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps

9:16 Corridor Mode

Supported

ROI

Supported

Video Streaming

Triple

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

Behavior Detection

Intrusion, crossing line, motion detection

N/A

Exception Detection

Audio detection

N/A

Intelligent Identification

Face detection

N/A

Statistical Analysis

People counting

N/A

Audio

Audio Compression

G.711

N/A

Two-way audio

Supported

N/A

Storage

Edge Storage

Micro SD, up to 128 GB

Network

Protocols

L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x

Compatible Integration

ONVIF, API

Interface

Audio I/O

audio cable

N/A

Input: impedance 35 kΩ; amplitude 2 V [p-p]

N/A

Output: impedance 600 Ω; amplitude 2 V [p-p]

N/A

Alarm I/O

1/ 1

N/A

Network

1 RJ45 10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

N/A

Reset

1 Reset Button

Power Output

DC12V Power Output With PoE

General

Power

12 V DC, or PoE (IEEE802.3 af)

Power consumption: max.6.6 W (PoE :max.7.2 W)

Dimensions (Ø x H)

Φ148 x 111.3 mm (Ø5.8” x 4.4”)

Weight

0.75 kg (1.7 lb)

Working Environment

-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Vandal Resistant

IK10

Ingress Protection

IP66
