IP камера UniVIEW IPC6222ER-X20-B

Артикул №: 1000034344

Категория: Цифрови IP камери

494,99 €

✓ Налично във външен склад

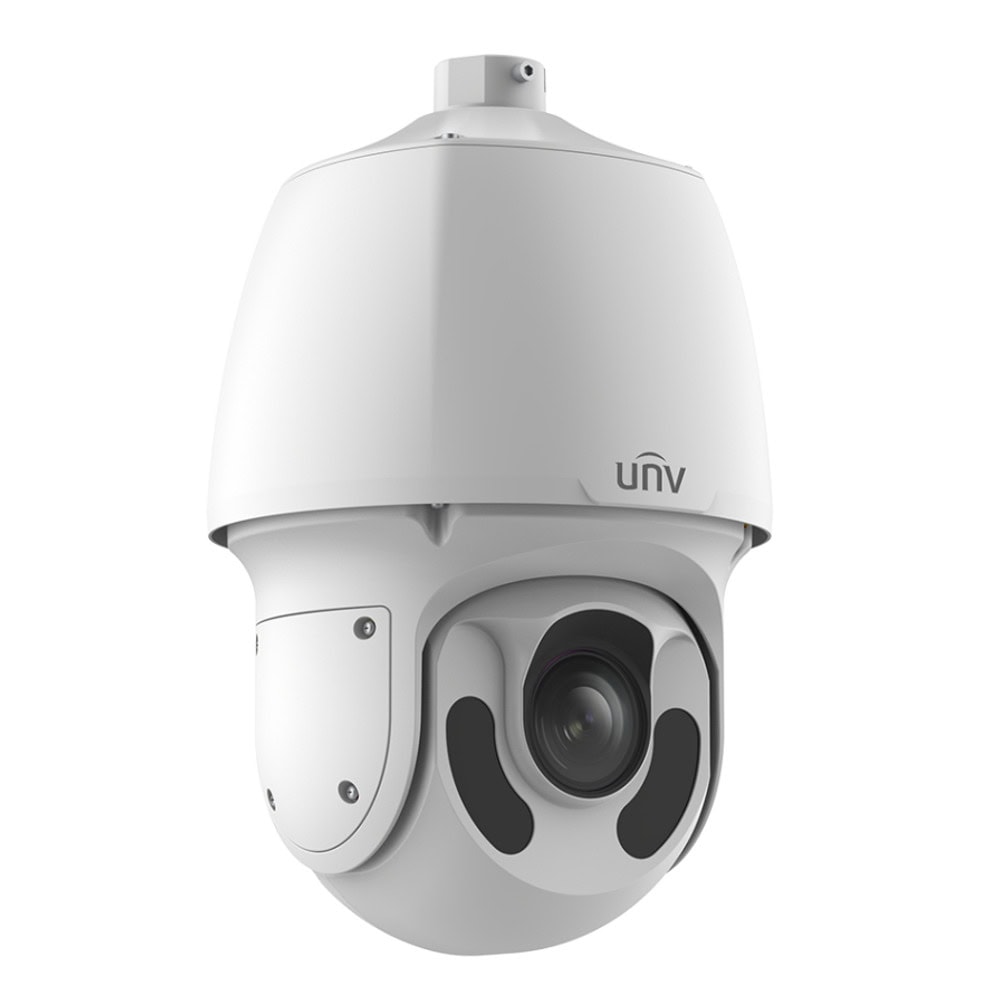

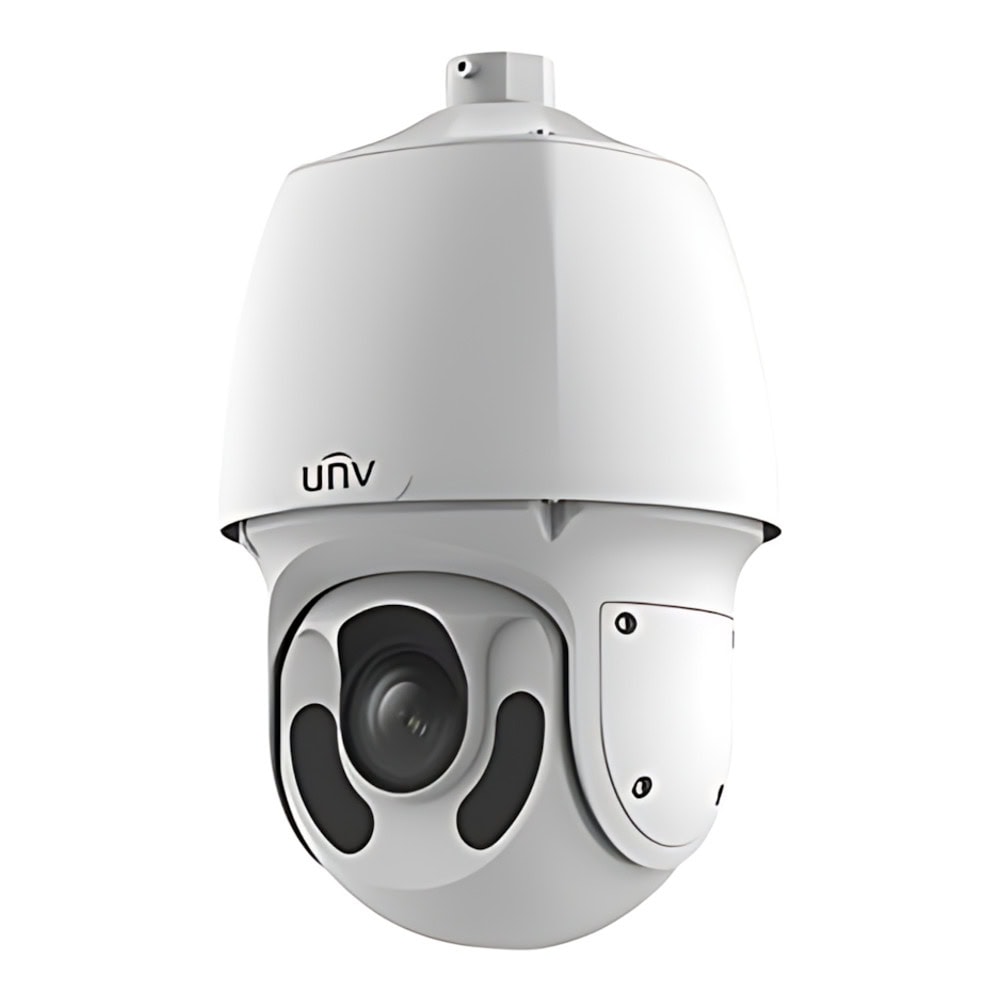

UniVIEW IPC6222ER-X20-B

2MP 20x IR Network PTZ Dome Camera

• 1/2.8" progressive scan CMOS
• Up to 1920×1080 resolution,60fps
• 20x optical zoom (5.2~104mm)
• Ultra 265,H.265,ONVIF
• Smart IR, up to 150m IR distance
• All-weather design
• Audio in/out, Alarm in/out
• AC24V±25%,DC24V±25%, Max 44W
• IP66, -40°C ~ +65°C
• (-P)PoE

Optics

* Accurate and fast focusing

* The third-generation infrared technology

* Smart IR, up to 150m (492ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 120dB true WDR

Compression

* Ultra 265, H.265, H.264, MJPEG

* Triple streams

* Customized OSD

Network

* ONVIF Conformance

* Support P2P (ezcloud）

Structure

* Special structure and window design to battle bad weather (especially in dusty weather)

* Innovative snow-removing functionality

* More effective heat dissipation system

* Intelligent temperature control technology

* 6KV surge protection designed for network interface

Camera
Sensor	1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens	5.2 ~ 104mm, AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	20
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	5.2	80.7	32.3	16.1	8.1
	104	1613.8	645.5	322.8	161.4
Angle of View (H)	55.93° ~ 3.52°
Angle of View (V)	33.25° ~ 1.98°
Angle of View (O)	68.79° ~ 4.15°
Shutter	Auto/Manual; shutter time: 1 ~ 1/100000s
Minimum Illumination	Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR
Iris	Auto; F1.5 ~ F3.0
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	UP to 150m (492ft)
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 2MP (19201080), Max 60fps; Sub Stream: 2MP (19201080), Max 60fps; Third Stream: D1 (720*576), Max 60fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Line crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage
Exception Detection And Statistics	Object Moving, Object Left
Recognition	Face detection, Audio detection, Motion detection
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, TLS, SSL, QoS, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 240°/s
	Preset speed: 300°/s
Tilt Range	–15° ~ 90° (auto reverse)
Tilt Speed	0.1° ~ 160°/s
	Preset speed: 240°/s
Number of Presets	1024
Patrol	Up to 16 patrols, up to 32 presets per patrol
Home Position	Supported
Interface
Audio I/O	Audio cable
	Input: impedance 35kΩ; amplitude 2V [p-p]
	Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	1/1
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	Power consumption: Max 44W
Dimensions (Ø x H)	Ø227 x 359.4mm (Ø8.9” x 14.2”)
Weight	5.28kg (11.6lb)
Working Environment	-40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP66
