UniVIEW

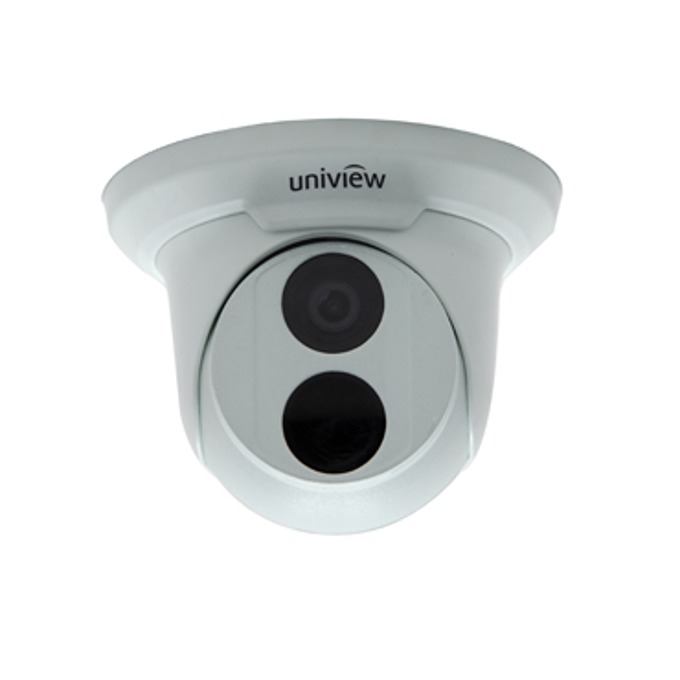

IP камера UNIVIEW IPC3611SR3-PF36
Артикул №: 1000007242
Категория:
Цифрови IP камери
77,99 €
✓ Налично във външен склад
Uniview IPC3611SR3-PF36
Camera
Sensor
1/3", 1.3megapixel, progressive scan, CMOS
Lens
Angle of View(H)
105.2°
79.7°
51.6°
Shutter
Auto/Manual, 1/6~1/100000 s
Min. Illumination
Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR
IR
30m (98ft) IR range
Day/Night
IR-cut filter with auto switch (ICR)
WDR
Digital
AWB(Auto white balance)
Auto/manual
Gain Control
Auto/manual
Noise Reduction
2D/3D
Video
Max. Resolution
1280×960
Video Compression
H.264/MJPEG
Frame Rate
960P (1280*960): Max. 30 fps; 720P (1280*720): Max. 10 fps;
960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 15 fps; D1 (720*576): Max. 6 fps
Video Streaming
Triple
Evaluative Metering
Supported
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP
Compatible Integration
ONVIF
Interface
Network
10M/100M Base-TX Ethernet
General
Power
12 V DC, or PoE (IEEE802.3 af)
Camera
Sensor
1/3", 1.3megapixel, progressive scan, CMOS
Lens
Angle of View(H)
105.2°
79.7°
51.6°
Shutter
Auto/Manual, 1/6~1/100000 s
Min. Illumination
Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR
IR
30m (98ft) IR range
Day/Night
IR-cut filter with auto switch (ICR)
WDR
Digital
AWB(Auto white balance)
Auto/manual
Gain Control
Auto/manual
Noise Reduction
2D/3D
Video
Max. Resolution
1280×960
Video Compression
H.264/MJPEG
Frame Rate
960P (1280*960): Max. 30 fps; 720P (1280*720): Max. 10 fps;
960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 15 fps; D1 (720*576): Max. 6 fps
Video Streaming
Triple
Evaluative Metering
Supported
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP
Compatible Integration
ONVIF
Interface
Network
10M/100M Base-TX Ethernet
General
Power
12 V DC, or PoE (IEEE802.3 af)
Характеристики
| ONVIF | Интерфейс |
| Network | 10M/100M Base-TX Ethernet |
| General | Мощност |
| 12 V DC, or PoE (IEEE802.3 af) | Power consumption: 3.5 W (5.5W with IR on) |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Тегло | 0.33 kg (0.73lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP67 |
