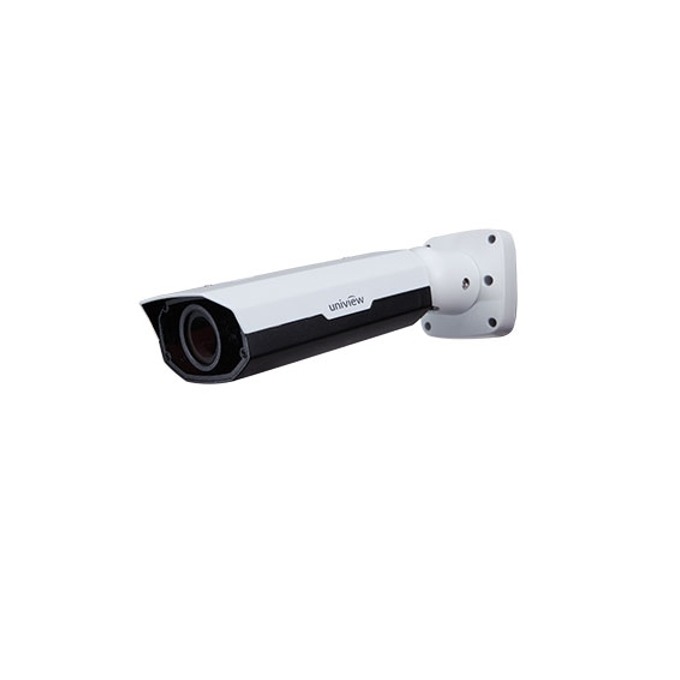

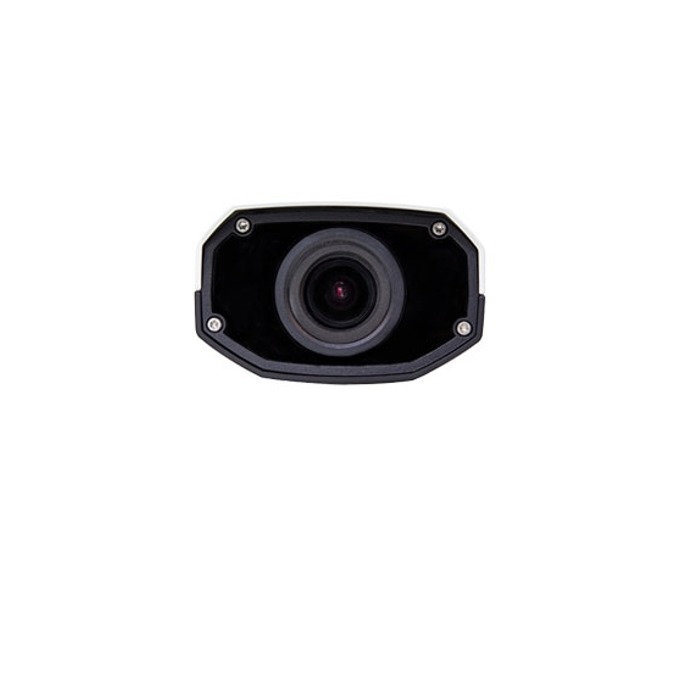

IP камера UniView IPC241E-IR-Z-IN

Optics:

Smart IR, up to 30m (98 ft) IR distance

Built-in motorized lens for remote zoom and autofocus (-Z model support)

Optical glass window with higher light transmittance

IR anti-reflection window to increase the infrared transmittance

Compression:

H.264 High Profile

Triple streams

ROI (Region of Interest)

9:16 corridor mode

Customized OSD

Network:

ONVIF Conformance

Structure:

AC 24V /DC 12 V/PoE with uninterruptible power supply

Wide temperature range: -40°C to 60°C (-40°F to 140°F)

Wide voltage range of ±25%

6 KV surge protection designed for network interface

IP66

Camera:

Sensor- 1/3", 1.3 megapixel, progressive scan, CMOS

Shutter- Auto/Manual, 1/6~1/8000 s

Lens- 2.8~12 mm, F1.4

Zoom/Focus- Motor drive

Angle of View (H)- 90° (wide) ~ 28° (tele)

Min. Illumination- Colour: 0.03 Lux (F1.4, 50IRE) Black & White: 0.01Lux (F1.4, 50IRE)

Day/Night- IR-cut filter with auto switch (ICR)

S/N- >50dB

IR- Smart-IR ,up to 30m (98 ft) IR range

Video:

Max. Resolution- 1280 × 960

Video Compression- H.264,MJPEG

Frame Rate- 960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps

9:16 Corridor Mode- Supported

ROI- Supported

Video Streaming Triple:
OSD- Up to 8 OSDs

Privacy Mask- Up to 8 areas

Audio:
Audio Compression- G.711

Two-way audio- Supported

Storage:
Edge Storage- Micro SD, up to 64 GB

Network:
Protocols- L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP

Compatible Integration- ONVIF, IMOS,API

Interface:

Audio I/O:
3.5 mm audio interface
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O- 2 / 1

Serial Port- 1 RS485

Network 10M/100M Base-TX Ethernet

Video Output- 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General:
Power- 12 V DC, 24 V AC or PoE (IEEE802.3 af)
